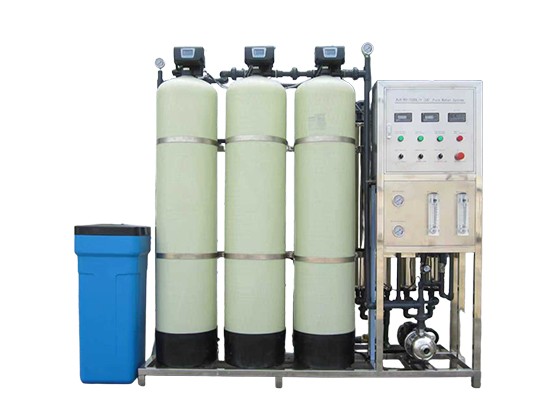

ShangHai, ChinaThis equipment adopts reverse osmosis technology and a stainless steel frame structure, equipped with DuPont (USA) membranes, a water softener, a dosing system, and a cleaning system. Both the pretreatment unit and the main unit are equipped with an automatic flushing function, enabling it to adapt to various complex raw water qualities.
SIZE:
Length 2350 * Width 800 * Height 2000
Raw Water Pump: CHL2-40 380V 0.55kw1 unit ： Nan Pump
Mechanical Filter：Fiberglass Ф350×16001 piece： Rongxintai
Upper and Lower Water Distributors：1" Large Head1 set： Felite
Quartz Sand：150kg3 packs：Guangzhou Boyuan
Automatic Valve：F67Q11 set: Runxin
Pressure Gauge: 0.6MPa1 piece ：Zhejiang
Pipe Fittings： PVC1 batch： Sanyou
Activated Carbon Filter: Fiberglass Ф350×16001 piece: Rongxintai
Upper and Lower Water Distributors: 1" Large Head1 set : Felite
Automatic Valve : F67Q11 set ： Runxin
Coconut Shell Charcoal: 50kg2 packs: Guangdong
Pressure Gauge：0.6MPa1 piece ：Zhejiang
Pipe Fittings ： PVC1 batch： Sanyou
Softening Filter：Fiberglass Ф350×16001 piece: Rongxintai
Upper and Lower Water Distributors：1" Large Head1 set： Felite
Automatic Valve：F63Q11 set ：Runxin
Cation Resin：75L3 packs ：Purolite
Salt Tank：100L1 piece： Cixi
Pressure Gauge： 0.6MPa1 piece ：Zhejiang
Pipe Fittings：PVC1 batch : Sanyou
Security Filter ：3 - Core * 20"1 piece: Hangzhou
PP Filter Element :PP 5um × 203 pieces: Hangzhou
Reverse Osmosis Frame：304 Stainless Steel Material1 unit：Guangzhou Boyuan
High - Pressure Pump：CDLF2-13 380V 1.5kw1 unit： Nan Pump
RO Membrane : BW30-40404 pieces: DuPont
Stainless Steel Membrane Housing：40404 pieces : Guangzhou Boyuan
Electrical Components in Control Box: Automatic Control 1 set : Guangzhou Boyuan
Panel Flow Meter: 10GPM2 pieces : Zhejiang
Vibration-Resistant Panel Pressure Gauge:25kg/cm32 pieces : Zhejiang
Vibration-Resistant Panel Pressure Gauge:6kg/cm31 piece : Zhejiang
Low - Voltage Switch: P061 piece : South Korea
Conductivity Meter : CCT-33001 set : Millipore
Solenoid Valve : PU225-06A2 pieces: Shuntong
Float Switch 2 pieces: Shitong
Pipe Fittings : PVC1 batch : Sanyou
Pump: CHL8-30/380V1 unit : CIP
Precision Filter : 30 - inch 5 - Core1 unit
Medicine Tank: 500L1 piece
Rack1 batch
Metering Pump:6L1 unit : Dosing
Medicine Tank :100L1 piece
Processing Fee Guangzhou Boyuan
