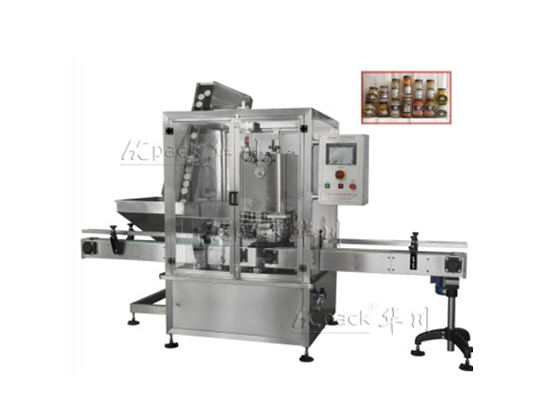

This machine adopts a fully sealed vacuum structure, and the vacuum degree can be set as needed. It realizes automatic bottle feeding - automatic bottle loading - automatic vacuum suction - automatic capping - automatic bottle discharging. It does not perform vacuum suction without bottles, which extends the shelf life and taste of the objects inside the glass bottles. It is widely applicable to the vacuuming and capping of various three (four) screw-cap glass bottles in industries such as food and beverages, condiments, honey, canned food, health care products, etc.

Performance features:

This machine integrates automatic bottle feeding, automatic cap arrangement, automatic cap application, automatic vacuum suction, automatic capping, and automatic bottle ejection. It features high production speed, high efficiency, and stable and reliable operation.

This machine adopts a fully sealed vacuum structure and a screw-on capping principle. The vacuum degree can be set as needed.

This machine is mainly composed of bottle conveying mechanism, cap arranging mechanism, bottle clamping and cap hanging mechanism, vacuum system, capping mechanism, electrical control mechanism, etc. It features a high degree of automation, a reasonable and compact design, and easy operation.

The main frame, components and shell of this machine are made of high-quality 304 stainless steel, with an attractive appearance, easy to clean and in compliance with food hygiene requirements.

The equipment is controlled by PLC in combination with a touch screen (human-machine interface), and it adopts world-class electrical and pneumatic components, featuring a low failure rate, stable and reliable performance, and a long service life.

The height of the capping mechanism can be quickly adjusted to accommodate bottles of the same diameter but different heights. By replacing some parts, it can also be adapted to cap bottles of different diameters and diameters, and the replacement is quick and convenient.

The cap-feeding mechanism is equipped with a photoelectric safety protection device, which can control the bottle-arranging mechanism to achieve the self-protection function of "feeding caps when there are no caps and stopping feeding when caps are full", enhancing the operational stability and reliability of the equipment.
