1、

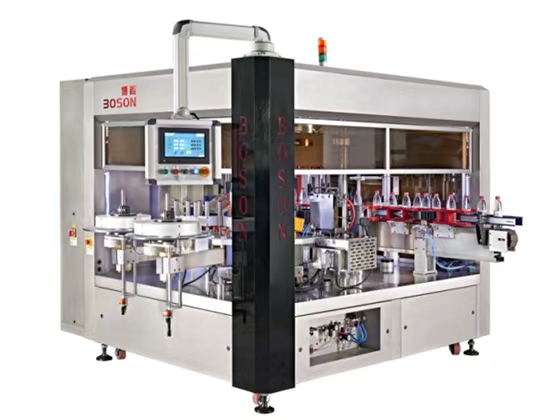

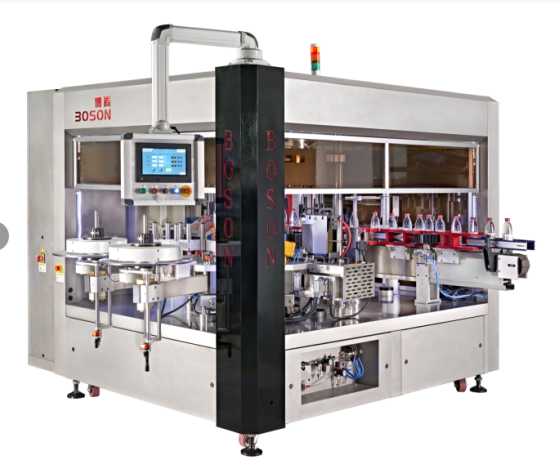

Appearance Drawing and scheme drawing of equipment (based on physical object) :

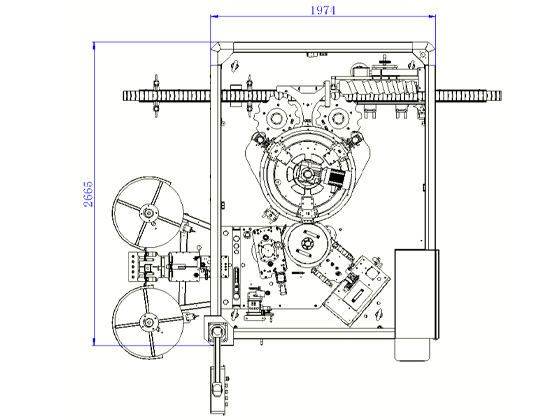

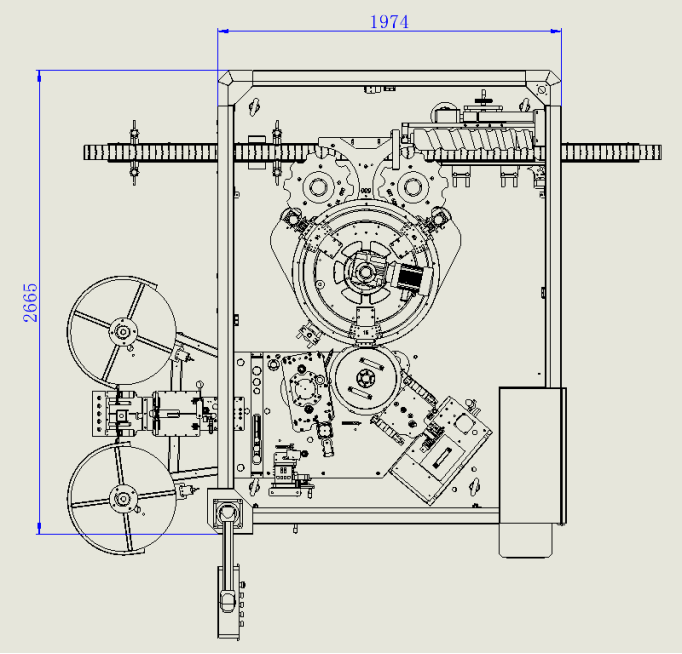

	2、： Proposal drawing

3、
Equipment details instruction

3.1
Equipment composition

A:
Host of machine (key components)

Motion Control system Japan KEYANCE

WEINVIEW TOUCH SCREEN

JAPAN YASKAWA SERVO CONTROL SYSTEM

Germany Sick high speed and high resolution color sensor

China YUHENG encoder

German PILZ security system

Germany Lemmer E L rectifier

Driver of labeling machine is made of Germany SEW brand motor, with reliable and durable quality.

B:
Mechanical parts

Conveyor sector: adopt filling machine’s power or conveyor own power ,

The labeling machine without conveyor power, converter adjust the speed.

Main Shaft support mechanism: Using 2 single-acting cylinders and columns to form a triangular stable state.

Main shaft lifting mechanism: motor to control the lifting, positioning stability and accuracy.

Gear transmission system of complete machine

Bottle self-rotating synchronous wheel drive system

Pressing head driver system

Front and back, up and down adjustment system of labeling System.

Labels delivery device: Boshang high speed servo OPP labels film delivery system

Glue feeding system: boshang delicate hot melt glue feeding system (Japanese control system) to ensure the accuracy and uniformity of glue feeding.

Label turntable: Two independent of the labels plate, reduce the production of the replacement of the labels volume used time, improve production efficiency。

Lager Transmission Power, compact transmission system structure, thin, flexible, suitable for high-speed transmission, less heat, smooth rotation, and heat, oil, wear-resistant, small extension, long service life.

Bottle feeding mechanism: special bottle feeding screw, front and back twin screw mechanism, installation of Torque limiter to ensure high-speed bottle feeding stability and reliability, screw and bottle protector push plate are quick dis-assembly structure, and both have positioning, once adjustment is completed, no adjustment is needed in later period, quick and easy to change .

In and out of the bottle star wheel: with the main rotary wheel gear connection, responsible for the transition between the screw into the bottle and the main rotary table, installation of Torque limiter, quick dis-assembly structure, and all have positioning, one adjustment is completed, no later adjustment, simple and quick mold replacement.

3.2 ：
Labelling Principle

The hot melt adhesive OPP labeling machine is a new type of rotating and continuous operation labeling machine; Equipment can automatically adjust the container in and out of the transmission; The container transferred by the conveyor belt is separated by a certain distance by the bottle dividing screw according to the distance of the star wheels. Then, the imported star wheel will transfer the container to the container turntable. After the container is fixed by the bottle pressing mechanism and the mold base of the container, the container starts to rotate at a certain speed. Mechanical predetermined position during product rotation; And according to the trajectory of the mechanism for positioning labeling.

When the container arrives at the position detected by the electric eye, the label delivery system is controlled by the computer host to deliver the label. After completing a label delivery action, the high-speed cutter cuts off a label. Due to the use of Japan yaskawa small inertia high speed servo motor, to ensure the accuracy and stability of high speed delivery and cutting labels

The cutting label is sent to the gluing system; In this part, the system applies glue to both ends of the label, which makes the consumption of hot melt glue the lowest.

When the coated label is transferred to the labeling position, the label can be accurately and effectively glued to the container. Since the container is in a rotational state during the transfer of the label, the label can be attached to the container smoothly and tightly. The strip at the end of the label can form a good lapping seal of the label, completing a labeling process.

and alarm, when the glue box liquid level is low, the glue is about to run out when the alarm prompt and delay to slow down standby.

Warning of missing label: When there is a missing label, the device slows down to stop & alarm, to prevent cutting the label drum glue, reduce the downtime.

Material Control: When the bottle feeding end lack bottles or bottles plug in outside, the equipment slow down standby, standby indicator light prompt, automatically resume production speed after the release the state.

Components Monitoring: When the servo drive, frequency conversion drive failure, control power short circuit,the device shutdown alarm.

Air Pressure Detection: When the air pressure can not meet the production requirements of equipment, equipment shutdown protection to prevent the production of defective products

Material clogging: When the main turntable, feed screw, in and out of the bottle star wheel clogging occurs Cottonwood failure shutdown alarm.
