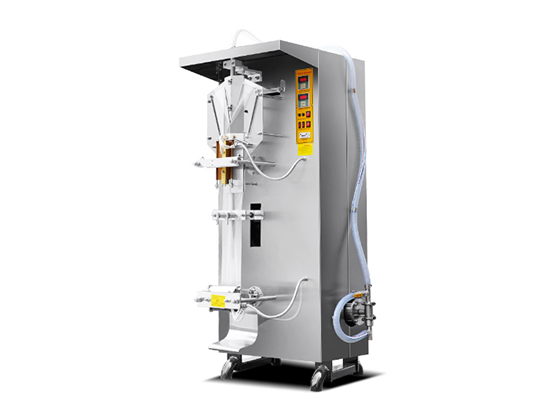

SJ-1000 automatic liquid filling and packing machine

Main features: Bag length, filling volume can be set manually, easy to operate. Stepping motor driver system, ensuring of the accurate bag length and filling dose. Automatic in forming, measuring, filling, sealing, cutting, lot code printing.

1. Scope of application:

Packaging materials: polyester/polyethylene, polyester/aluminum foil/polyethylene, polyester/aluminum-plated/polyethylene, paper/polyethylene, nylon and other heat-sealable composite materials. Packaging material requirements: 4 wires <= thickness <= 8 wires, coil inner diameter <= 75mm, coil outer diameter <= 320mm

Suitable materials: Suitable for liquids such as food, medicine, and chemicals. Such as milk, soy milk, soy sauce, vinegar, rice wine and various liquids

Optional accessories: rotor pump feeding, ribbon coding, conveyor belt, weight detector, dust cover

2. Technical parameters:

SJ-1000
Liquid packaging machine
0000320
Bag length: 50-150mm
Bag width: 40-150mm
Film width: 100-320mm
Bag capacity: 50-500ml
Packing speed: 33-37 bags/minute
Voltage: 220V/AC 50Hz
Power: 1.6kw
Body size: 88*76*180cm
Machine weight: 275kg
Sealing form: back seal

Performance characteristics:

1. The machine can automatically complete bag making, quantitative, filling, sealing, slitting, counting, coding and other processes, and can be customized according to customer requirements.

2. Robotic bag pulling, stable performance and easy adjustment.

3. The overall contact material parts and the housing are made of 304 stainless steel, which meets the food and drug hygiene permit standards. Can be equipped with ultraviolet sterilization.

4. The metering method uses a plunger volumetric pump for filling and metering, which is simple to adjust and accurate.

5. The advanced design ensures that the machine is suitable for different industries and is very convenient to adjust, operate and maintain when used. It can be used in conjunction with various automatic metering equipment at home and abroad.

Sample display:
