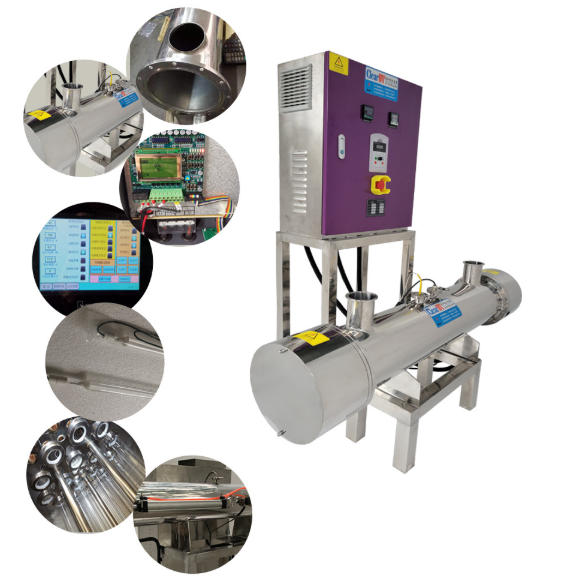

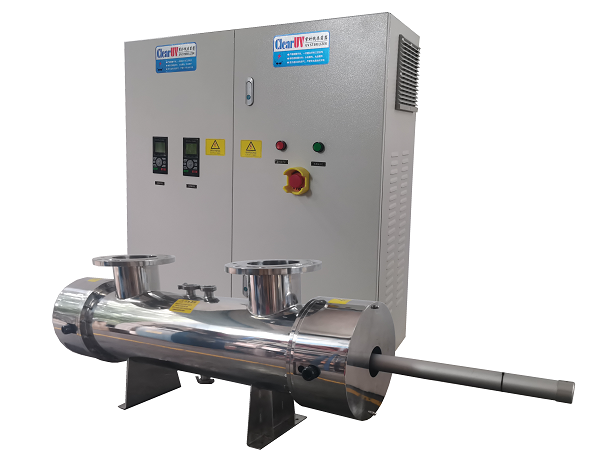

ClearUV Medium-Pressure Multi-Spectrum Ultraviolet Sterilizer Product Introduction

Currently, water treatment disinfection in food, beverage, and brewing processes mainly utilizes low-pressure ultraviolet lamps and medium-pressure multi-spectral ultraviolet lamp disinfection systems. Low-pressure ultraviolet lamps primarily have a spectrum concentrated around 254nm, while medium-pressure multi-spectral ultraviolet lamps produce a broader ultraviolet spectrum, thus acting on the entire microorganism, rather than just damaging its DNA structure. Because this ultraviolet technology effectively prevents photoreactivation and dark repair of microbial DNA, it can permanently inactivate microorganisms, which is undoubtedly extremely important for water used in food, beverage, and brewing processes.

In the early days, medium-pressure sterilization technology was dominated by a few foreign brands. ClearUV, after over a decade of technological breakthroughs since 2010, has developed its own medium-pressure multi-spectral ultraviolet sterilizers, which have been used for many years by high-end customers in China. Their stable performance has earned widespread customer recognition. Providing customers with high-quality, cost-effective products while ensuring quality is our constant goal. The company has introduced a complete set of advanced imported production equipment, including equipment for cutting, stamping, stretching, welding, and internal and external polishing of stainless steel materials, as well as testing equipment for ultraviolet light sources and power supplies. We have long-term partnerships with leading global manufacturers of medium-pressure multi-spectral ultraviolet light sources and ballasts, ensuring high-quality standards. Furthermore, our multi-spectral light source cleaning technology utilizes a uniquely developed spiral soft cleaning device to ensure the long-term high cleanliness of the quartz sleeve surrounding the light source, thereby guaranteeing effective light output and achieving stable sterilization results.

Comparison: ClearUV Medium Pressure Multi-Spectrum UV vs. Ozone Generator

Reaction chamber:

• 304/316L stainless steel
• Internal and external high mirror non-trace polishing treatment, precision 600 mesh, high reflectivity
• Drawing process, automatic breathable flat welding, double-sided forming
• Medical cleanliness level, no dead corners



Electronic control system:

1.304 Stainless steel thickened case with optional purple paint panel
2. Intelligent inverter electronic ballast, using imported chip, output power can be adjusted intelligently by frequency conversion
3. Siemens PLC+ClearUV intelligent control software
4. High-resolution touch screen display: system working status, cumulative working time, working voltage, current, temperature, ultraviolet light, automatic cleaning frequency, etc
5. Local/remote control
Ultraviolet light source: The use of Germany imported multi-spectrum ultraviolet lamp single branch lamp power 0.5-12KW



Cleaning system:

1. Manual pull rod or automatic pneumatic cleaning
2. Use ClearUV spiral multi-piece food grade cleaning ring
3. Clean thoroughly and do not damage the casing
4. No need to stop when cleaning

Medium Pressure Multi-Spectrum UV Disinfector Selection Table

Note: Suitable for disinfection of purified water, clean water, tap water, and mineral water. Pre-disinfection before reverse osmosis membrane.
