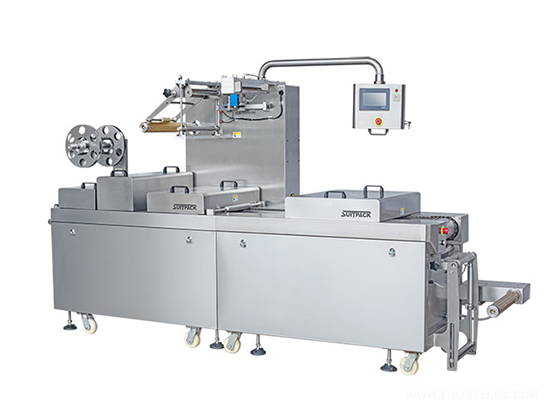

This machine is a fully automatic forming, vacuum and sealing packaging machine, suitable for vacuum, gas filling and vacuum forming packaging of various foods, meat products, seafood, fruits and vegetables, pickles, chilled meat, medical products, hardware equipment, etc. I.



Product Features:

(1) The entire machine is made of hard aluminum alloy and stainless steel materials, significantly enhancing the equipment's corrosion resistance.

(2) It adopts a combined mold, which is easy to replace and can be used for multiple purposes with one machine. The mold is equipped with a water cooling system.

(3) SMC pneumatic components with stable performance and long service life are adopted.

(4) Select German BUSCH vacuum pumps with high ultimate vacuum degree and outstanding performance.

(5) Select reliable and easy-to-operate OMRON servo motors, PLCS, touch screens and Schneider Electric control.

(6) By adopting photoelectric tracking, color cover film or light film can be selected for packaging to reduce costs and enhance the product grade.

(7) An automatic coding system can be equipped according to customer requirements.

(8) Special stainless steel clamping chains are adopted, which are suitable for stretching and forming soft and hard films of various thicknesses for special packaging.

(9) It adopts advanced cross-cutting and longitudinal cutting systems, which are easy to replace and operate. It is equipped with a waste recycling system for scraps and corners to maintain environmental hygiene. Ii.



 Technical Parameters:

(1) Power Supply: 380V /AC 50HZ three-phase + neutral

 (2) Overall Power: 13KW

(3) Machine External Dimensions: 4450×1050×1930mm

(4) Weight: 1.5Ton

(5) Lower Membrane Width: 390mm

 (6) Upper membrane width 380mm

(7) There are four sealing modes. Choose according to the actual situation: only sealing, vacuum, gas filling, and controlled atmosphere. Iii.

Maintenance Instructions: (1) Do not open the equipment while it is in operation
