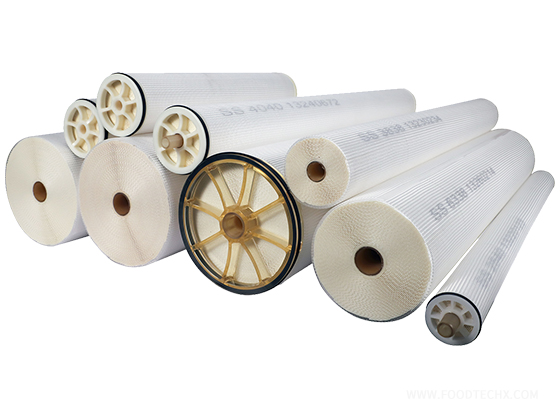

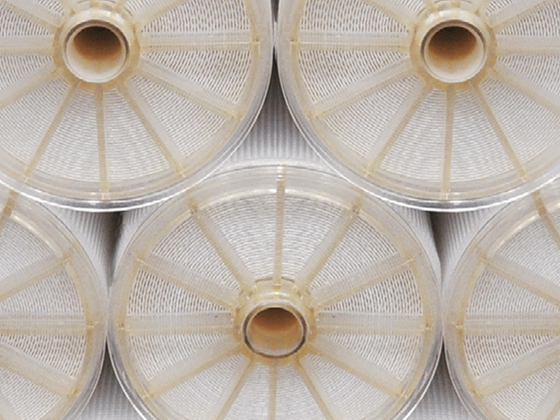

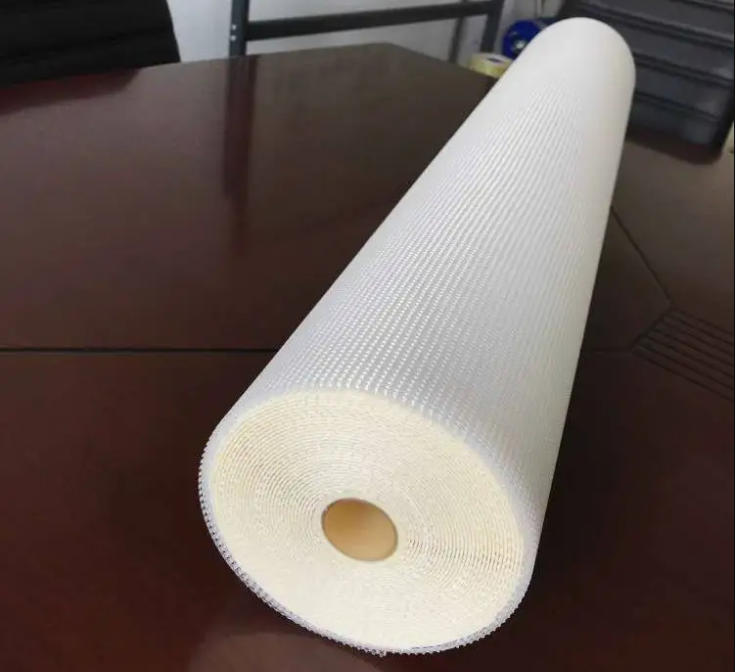

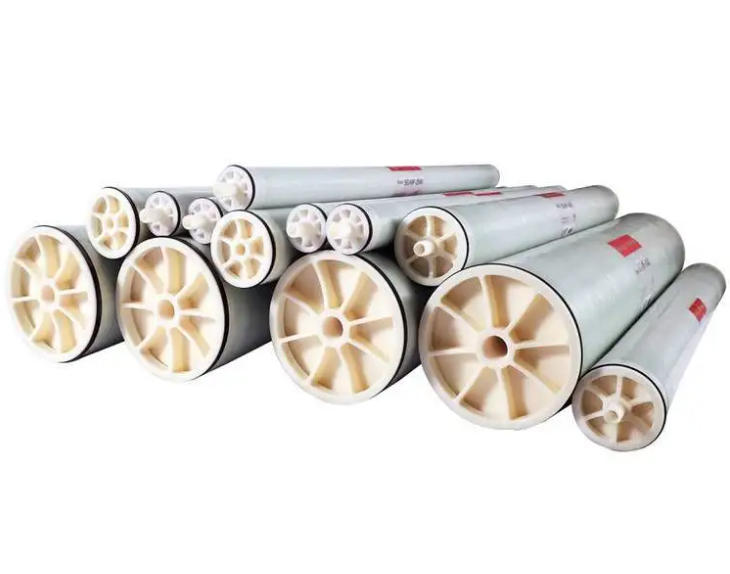

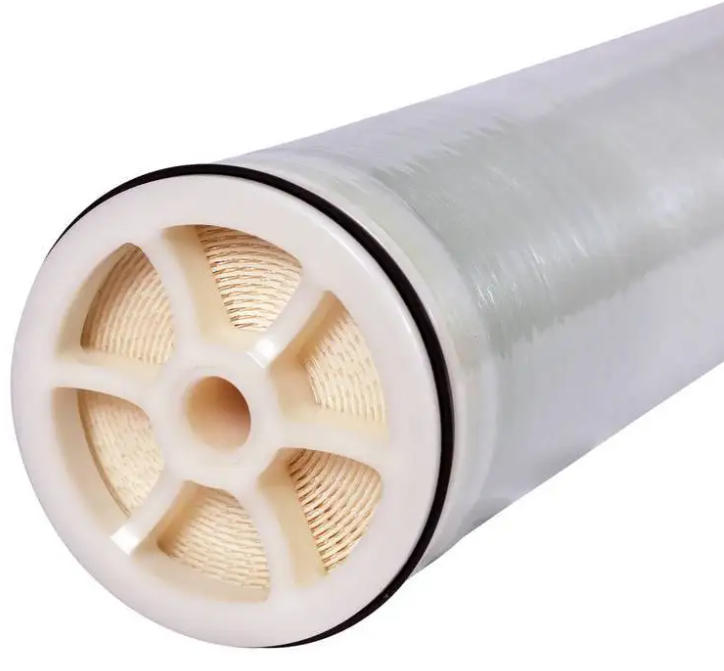

SPIRAL-UF MEMBRANE

UF membranes are characterized by their molecular weight cut-off between 1000-200,000 Dalton usually. Ultrafiltration is a pressure-driven membrane process being capable of separating solution components on the basis of molecular size and shape. Under an applied pressure difference across an ultrafiltration membrane, solvent and small solute species pass through the membrane and are collected as permeate while larger solute species are retained by the membrane and recovered as a concentrated retentate.

We supply spiral UF membrane with a wide variety of membrane material and MWCO. They have a compact design and an optimum surface area to volume ratio. The feed channel height can be varied by the thickness of the feed spacer material (from 13 to 120 mil). This helps to adapt the viscosity or the solids content of the liquid. This design feature leads to excellent hydrodynamics in combination with low energy demand. To meet some specialty applications, acid/caustic resistant, fouling resistant or high temperature membrane products are available.

ADVANTAGES：

• High thermal and chemical resistance

• Imported high quality raw material

• Sanitary design without dead space, high resistance to fouling

• Simple and economic module replacement

• Various choices of module dimensions

• High packing density



Sanitary Type for Pharmaceutical, Biotech and Food Process

Glass Fiber Type for General Industrial Applications

APPLICATION：

Clarification/concentraion for fermentation broth in pharmaceutical and biotechnology industry

Concentration for whey protein, gelatin，carrageenan，chondroitin sulfate

Pretreatment of industry use water

Pretreatment of industry use water

Clarification of juice and wine

Oil/water separation

Acid/caustic recycling
