Home/Water Treatment Equipment/Pure Water /Seawater Elements FilmTec™ SW30-4040/

Guangzhou Branch, Du Pont China Holding Co., Ltd.
GuangDong-GuangZhou, ChinaKey Features
• FilmTec™ Membranes offer the highest productivity while maintaining excellent salt rejection.
• FilmTec™ SW30 Membrane Elements have the highest flow rates available to meet the water demands of both sea-based and land-based desalinators.
• FilmTec™ SW30 Elements may also be operated at lower pressure to reduce pump size, cost and operating expenses.
• Improved FilmTec™ Seawater Membrane combined with automated, precision element fabrication result in the most consistent product performance available.
Product

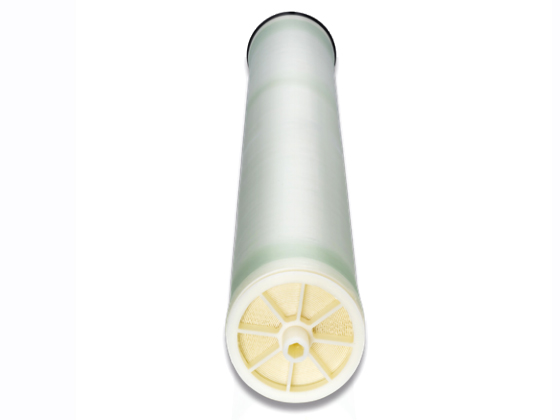

FilmTec™ SW30-4040
Part Number
12082966
Maximum Feed Flow Rate gpm (m3 /h)
16 (3.6)
Applied Pressure psig (bar)
800 (55)
Permeate Flow Rate gpd (m3 /d)
1,950 (7.4)
Stabilized Salt Rejection (%)
99.7

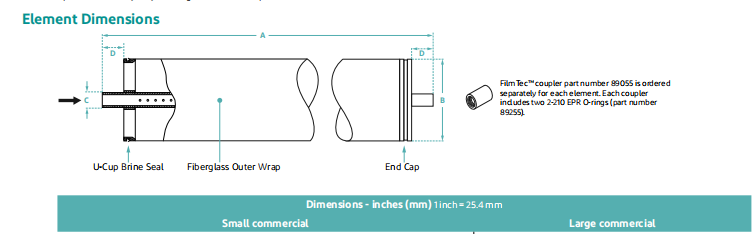

A
40.0 (1,016)
B
3.9 (99)
C
0.75 (19)
D
1.05 (26.7)
Membrane TypePolyamide Thin-Film Composite
Maximum Operating Temperature1113°F (45°C)
Maximum Operating Pressure1,200 psi (83 bar)
Maximum pressure drop15 psig (1.0 bar)
Per Pressure Vessel50 psi (3.5 bar)
Continuous Operation12 - 11
Short-term cleaningb1 - 13
Maximum Feed Silt Density IndexSDI 5
Free chlorine concentrationc< 0.1 ppm
