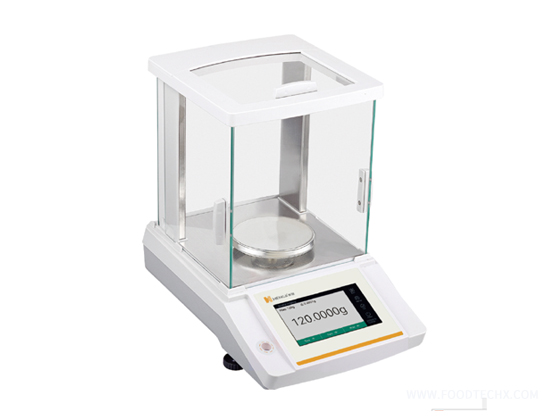

ShangHai, ChinaElectronic Balance with Electromagnetic Force Balance Sensor
This balance is equipped with an electromagnetic force balance sensor, with a design accuracy of 0.1mg and 1mg. It truly achieves accuracy in both high-capacity weighing and micro-weighing, and its excellent stability and sensitivity are comparable to imported balances.
Main Features & Performance
- Electromagnetic force balance sensor
- Ultra-clear LCD display
- Multi-unit conversion (customizable)
- Anti-static glass windshield
- Dynamic weighing
- Automatic density calculation
- RS232C bidirectional communication interface (USB interface optional)
- Fully automatic internal calibration (for FA-XN series)
- Clock display
- Below-weighing function
FA-X Series Electronic Analytical Balance (0.1mg) Parameters
(Model suffix N indicates internal calibration)
表格
| 项目 Item | FA1004X / FA1004XN | FA1204X / FA1204XN | FA2004X / FA2004XN | FA2204X / FA2204XN | FA3004X / FA3004XN | FA3204X / FA3204XN |
|---|---|---|---|---|---|---|
| 外校型号
|
FA1004X | FA1204X | FA2004X | FA2204X | FA3004X | FA3204X |
| 内校型号
|
FA1004XN | FA1204XN | FA2004XN | FA2204XN | FA3004XN | FA3204XN |
| 称量范围
|
0–100g | 0–120g | 0–200g | 0–220g | 0–300g | 0–320g |
| 实际分度值
|
0.1mg | 0.1mg | 0.1mg | 0.1mg | 0.1mg | 0.1mg |
| 稳定时间
|
2 seconds | 2 seconds | 2 seconds | 2 seconds | 2 seconds | 2 seconds |
| 预热时间
|
30–60 minutes | 30–60 minutes | 30–60 minutes | 30–60 minutes | 30–60 minutes | 30–60 minutes |
| 称量单位
|
g/oz/ct/mg/Customizable | g/oz/ct/mg/Customizable | g/oz/ct/mg/Customizable | g/oz/ct/mg/Customizable | g/oz/ct/mg/Customizable | g/oz/ct/mg/Customizable |
| 重复性 (≤)
|
±0.1mg | ±0.1mg | ±0.1mg | ±0.1mg | ±0.2mg | ±0.2mg |
| 线性误差 (≤)
|
±0.2mg | ±0.2mg | ±0.2mg | ±0.2mg | ±0.3mg | ±0.3mg |
| 输出接口
|
RS232C/USB (Optional) | RS232C/USB (Optional) | RS232C/USB (Optional) | RS232C/USB (Optional) | RS232C/USB (Optional) | RS232C/USB (Optional) |
| 秤盘尺寸
|
Φ90mm | Φ90mm | Φ90mm | Φ90mm | Φ90mm | Φ90mm |
| 外型尺寸
|
35×21.2×32cm | 35×21.2×32cm | 35×21.2×32cm | 35×21.2×32cm | 35×21.2×32cm | 35×21.2×32cm |
| 包装尺寸
|
42×36×42cm | 42×36×42cm | 42×36×42cm | 42×36×42cm | 42×36×42cm | 42×36×42cm |
| 净重
|
5500g | 5500g | 5500g | 5500g | 5500g | 5500g |
| 毛重
|
7500g | 7500g | 7500g | 7500g | 7500g | 7500g |
| 电源
|
AC110–240V | AC110–240V | AC110–240V | AC110–240V | AC110–240V | AC110–240V |
Model:
TF1003
Actual Division Value:
1mg
Repeatability (≤):
±2mg
Linearity Error (≤):
±2mg
Output Interface:
RS232C/USB (optional)
Pan Size:
Φ90mm
Dimensions:
32x19.5x28cm
Packaging Size:
37.5x25.5x34cm
Net Weight:
2600g
Gross Weight:
3500g
Power Supply:
110V/220-240V AC
