The equipment design and manufacturing meet the requirements of the production line process and layout, with a beautiful appearance and good manufacturing craftsmanship.
-
Low electricity and water consumption, easy operation, adjustment, and maintenance.
-
The machine has good self-protection functions, such as overload protection and safety doors.
-
It has functions for detecting the absence of tape and cartons.
-
The storage mechanism can hold about 50 unformed cartons at a time (depending on the thickness of the carton) and can be replenished at any time.
-
The suction and pushing of the cartons use a servo motion structure, providing fast, flexible positioning, and high efficiency and stability.
-
When changing specifications, the machine's material bin, box blocking, and output box width and height are manually adjusted. The suction and pushing positions can be switched with one touch on the screen. It can also be customized to a fully servo switching model according to customer needs.
-
-
-

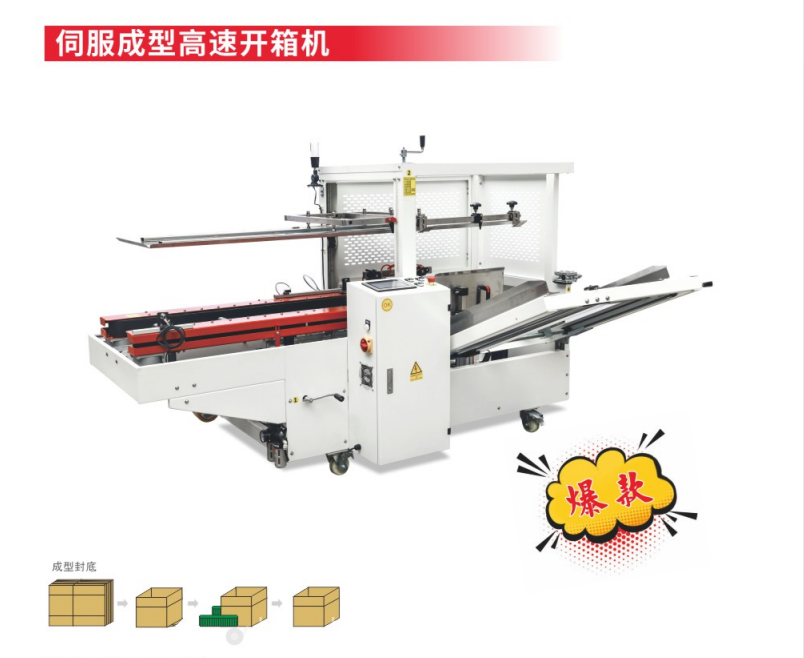

Home/Packaging equipment/Servo forming high-speed carton opening machine---SDW-K20TBK/
Shenzhen Xiaohui Packaging Technology Co., Ltd.
GuangDong-ShenZhen, ChinaPower Supply:
220V 50Hz 1.9KW
Air Supply:
0.6-0.7 Mpa
Air Consumption:
480NL/min
Machine Dimensions:
Small Model: L2062mm * W1586mm * H1391mm Large Model: L2412mm * W1714mm * H1571mm
Suitable Carton Size:
Small Model: L130-300 * W80-180 * H90-200mm Large Model: L250-450 * W150-300 * H150-400mm
Tape Width:
Small Model: 48mm Large Model: 72mm
Formation Speed:
Small Model: 5-30 boxes/minute Large Model: 5-25 boxes/minute
Box Opening Method:
Vertical servo forming
Table Height:
650mm
