The equipment design and manufacturing meet the requirements of the production line process and layout, with a beautiful appearance and good manufacturing craftsmanship.
-
Low electricity and water consumption, easy operation, adjustment, and maintenance.
-
The machine has good self-protection functions, such as overload protection.
-
It has functions for detecting the absence of tape and cartons.
-
The storage mechanism can hold about 50 unformed cartons at a time (depending on the thickness of the carton) and can be replenished at any time.
-
It makes full use of the data controllability of servo motion to quickly and flexibly process forming actions, better adapting to cartons of different materials.
-
Before formal operation, all carton dimensions need to be manually adjusted and pre-stored in the system. When changing specifications, first retrieve the carton specifications on the touch screen, and then only need to manually change the output box size and material bin size, reducing the steps for manual machine adjustment and improving the stability of the equipment after model change.
-

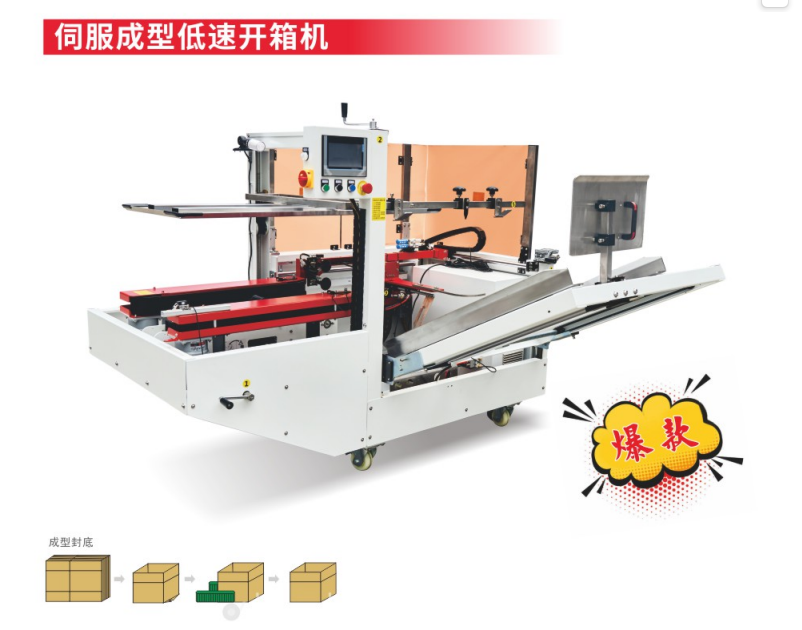

Home/Packaging equipment/Servo forming low-speed carton opening machine---SDW-K20BXK/

Shenzhen Xiaohui Packaging Technology Co., Ltd.
GuangDong-ShenZhen, ChinaPower Supply:
220V 50Hz 1.9KW
Air Supply:
0.5-0.6 Mpa
Air Consumption:
450NL/min
Machine Dimensions:
L2035 * W1901 * H1545mm
Suitable Carton Size:
L280-500 * W160-400 * H150-400mm
Tape Width:
48-72mm
Formation Speed:
5-15 boxes/min adjustable
Table Height:
650mm
Box Opening Method:
Vertical servo forming
Product Description
Technical Parameter
