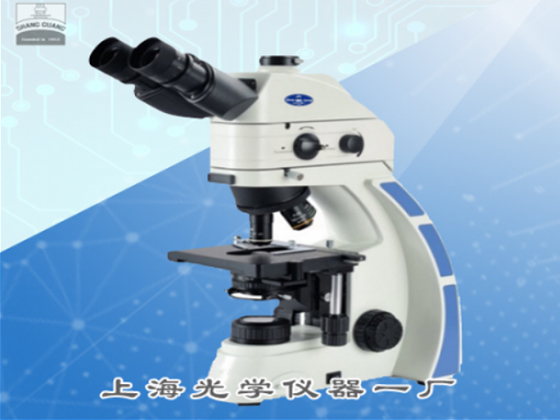

XSP-63XL single-band LED fluorescence microscope

I. Product Introduction

The XSP-63XL fluorescence microscope is a multi-purpose optical instrument for biological use. It adopts infinity plan achromatic fluorescence objectives without magnification chromatic aberration and wide-field eyepieces. The optical system provides clear imaging and a wide field of view. The light source adopts high-power and high-brightness LED, making it an ideal instrument for research in biology, cytology, oncology, genetics, immunology and other fields. It can be used by scientific research, universities, medical and epidemic prevention departments.

Ii. Product Features

It is equipped with a wide-field eyepiece and an infinity plan achromatic fluorescent objective lens, providing a large and clear field of view

2. Fluorescence channel, using LED fluorescence intermediate module, is used for fluorescence observation or immunofluorescence analysis of pulmonary tuberculosis detection, as well as for living cell observation

3. The bright-field channel uses transmitted light for daily pathological detection or experimental observation

4. Coarse and fine focusing mechanism on the same axis, with adjustable tightness for coarse focusing, equipped with locking and limit devices, fine focusing division value: 2μm

5. The reflected LED fluorescence device significantly simplifies the operation process of the fluorescence microscope, making microscopic examination simpler, safer and more efficient. It is equipped with a light source brightness adjustment knob, allowing users to set the illumination brightness according to the characteristics of different specimens. A one-click bright field and fluorescence quick switching knob enables users to easily switch between transmitted light illumination and reflected fluorescence illumination modes

6. Selecting an imaging system enables the display of images on a computer and the saving of pictures. Images can undergo various processing, editing, saving and output (such as printing, etc.) or be entered into multimedia systems and email boxes
