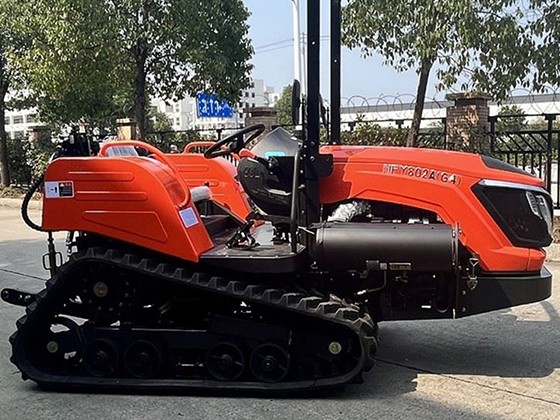

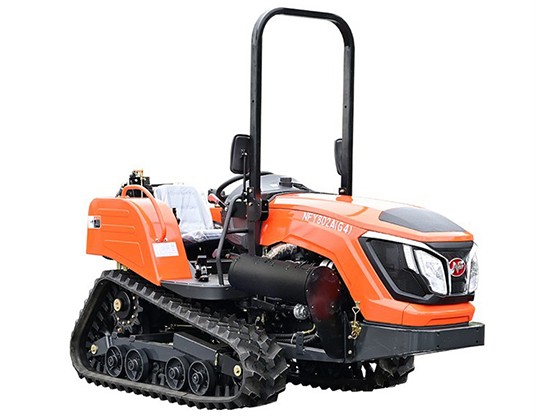

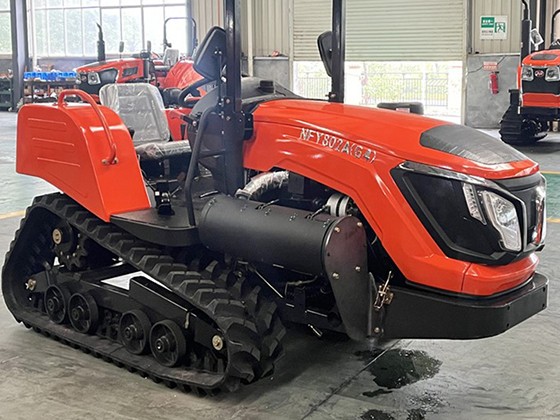

Home/Agricultural machinery/Aquacultural Machinery/Small Crawler Tractor---NFY802A/

Hunan Nongfu Machinery & Electronic Co.,Ltd.
, ChinaModel
NFY802A
Size Length x width x height(mm)
3346x1380x2343
Minimum operation mass(kg)
2200
Minimum ground clearance(mm)
276
Engine
:
Model
YD4C80FA
Form
High pressure Comon rail;Supercharging intercooling
Rated power (kw)
59.5
Rated speed(r/min)
2400
Steering system
:
Steering system type
Planetary differenitial steering
Drive train
:
Clutch type
Single-plate single-acting
Transmission type
4th forward gear+2th reverse gear
Transmission shift mode
Manual shift+HST
Theoretical speed of each gear(km/h)
Forward:Manual shift 4.67:8.30 HST0-5.23:0-9.31Reverse:HST 0-5.23:0-9.31
Rumming system
:
Track-center distance(mm)
1080
Track
90x46x300 (Pitch x Humber of sections x width)
Specific pressure(kp)
27.86
Working Device
:
Lifter type
Partial separated/Separated(compressive)
Tillage depth control mode
Force/Location Regulation
Power output shaft speed
624/960(r/min)
PTO shaft(mm)
8x38(Spline x outer diameter)
