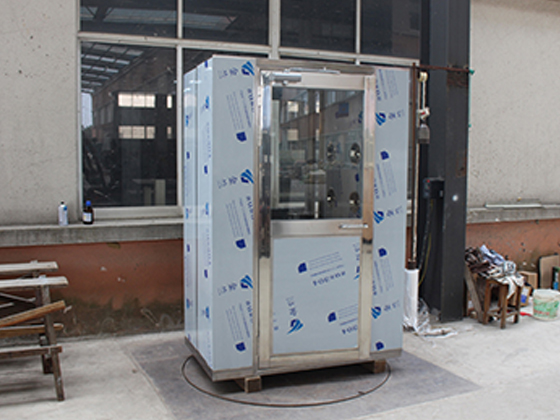

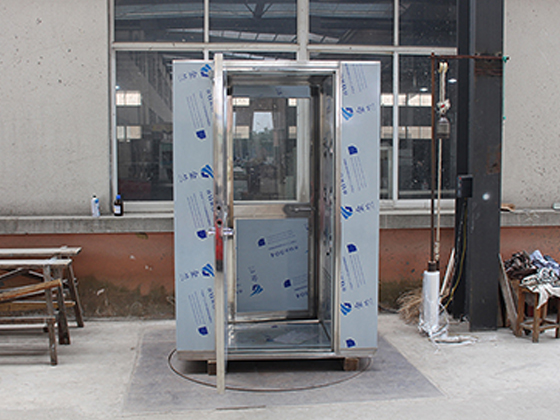

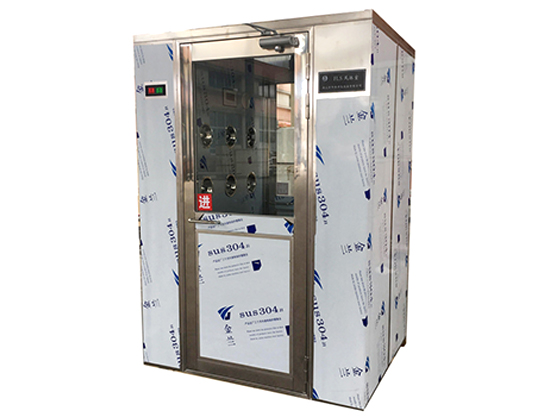

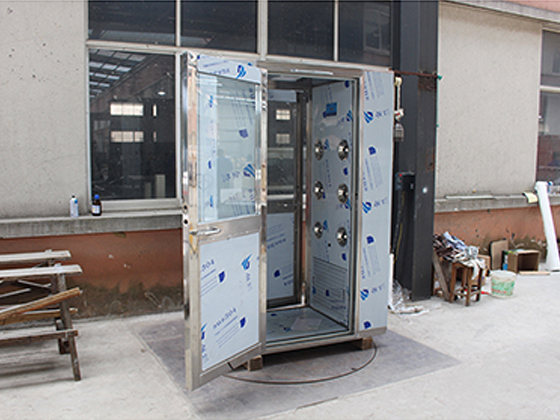

Home/Laboratory Equipment/Stainless Steel Single-person Double-blow Air Shower (with Voice Function)/

DaFeng Cleanroom Technology Co., Ltd
, ChinaIntroduction
An air shower (also known as clean air shower, purification air shower, air shower room, blow shower room, air shower door, dust shower room, blow shower chamber, air shower passage, or air blow shower) is an essential access passage for entering a cleanroom. It helps reduce pollution issues caused by personnel and goods entering or exiting the cleanroom.
The FLS series air shower is a universal local purification equipment installed between cleanrooms and non-cleanrooms. When personnel or goods need to enter the clean area, they must pass through the air shower for a blow shower. The clean air blown out by the air shower can remove dust carried by personnel and goods, effectively blocking or reducing dust sources from entering the clean area.

The single-person air showers customized by Dafeng Purification include the following types:
- Single-person Single-side Air Shower
- Single-person Single-side Right-angle Air Shower
- Single-person Single-side Three-door Air Shower
- Single-person Single-side Air Shower with Top Blowing
- Single-person Double-side Air Shower
- Single-person Double-side Air Shower with Top Blowing
Customizable by Material:
- Color steel plate with 130 fan (excluding those with top blowing);
- Color steel plate with 550W large fan;
- Color steel plate + electronic interlock;
- External color steel plate with internal stainless steel;
- External color steel plate with internal stainless steel + electronic interlock;
- Internal and external stainless steel composite plate;
- Internal and external stainless steel composite plate + electronic interlock;
- Painted steel plate + electronic interlock;
- 201 stainless steel + electronic interlock;
- 304 stainless steel + electronic interlock;
- External painted steel plate with internal 201 stainless steel + electronic interlock;
- External painted steel plate with internal 304 stainless steel + electronic interlock;
Product Features
- AIR controller, with optional probe.
- Intelligent control panel, with optional digital display controller with voice and electronic lock, and LCD display controller with voice and electronic lock.
- Integral panel with Taiwan GMT Crown door closer, featuring an integrated design and folded edges around, elegant and generous in appearance.
- Branded stainless steel butt-joint handle, which never falls off.
- Sealed with branded sealant, environmentally friendly, odorless, and airtight (a test report issued by the Quality Supervision Bureau is attached with the product).
- Photoelectric switch for automatic induction of blow shower.

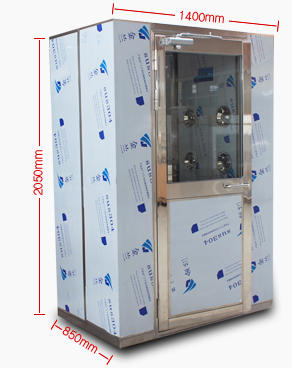

Overall Dimensions (mm)
Color Steel: 1550×850×2050 Stainless Steel: 1400×850×2050
Air Shower Area (mm)
Color Steel: 750×750×1950 Stainless Steel: 800×750×1950
Air Shower Time
0–99s adjustable
Nozzle Quantity
12 pcs (Double - sided)
Nozzle Material
Color Steel: Spray - molded / Nickel - plated; Stainless Steel
Nozzle Diameter
Φ30mm
Nozzle Air Velocity
20–25m/s
Filter Efficiency
≥99.99% for particles ≥0.5μm (Sodium Flame Method)
Power Supply
AC 220V 50Hz (2-phase) or AC 380V 50Hz (3-phase)
HEPA Filter (mm)/Quantity
600×600×70 × 2 units
