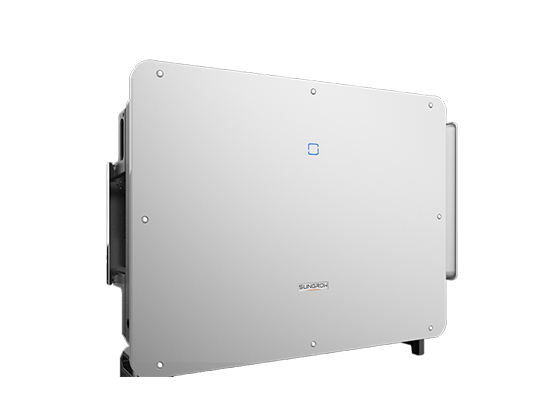

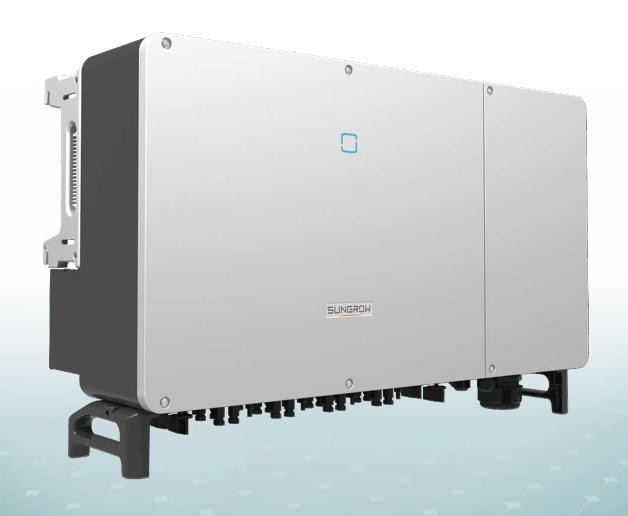

Home/Public Equipment/Energy Conservation Equipment/String PV Inverter SG110CX-P2-CN Multi-MPPT String Inverter for 1000 Vdc System/
Yangguang Dianyuan
AnHui-HeFei, ChinaFeatures
- Suitable for Commercial and Industrial (C&I) PV Power Plants
-
High-Efficiency Power Generation
-
Reduced Investment
-
Safe and Reliable
-
Intelligent Operation & Maintenance
-
9 MPPT Channels Design: Enhances power generation in complex application scenarios
-
15A Current per String: Enables easy connection of 500W+ PV modules
-
Intelligent PID Repair Function
-
HIGH YIELD
9 MPPTs with max. efficiency 98.7%
Compatible with bifacial module
Built-in PID recovery function
-
SMART O&M
Touch free commissioning and remote firmware upgrade
Online IV curve scan and diagnosis*
Fuse free design with smart string current monitoring
-
LOW COST
Compatible with Al and Cu AC cables
DC 2 in 1 connection enabled
Q at night function
-
PROVEN SAFETY
IP66 and C5 protection
Type II SPD for both DC and AC
Compliant with global safety and grid code
Input (DC)
:
Maximum Input Voltage:
1100V
Minimum Input Voltage/Startup Voltage:
180 V / 200 V
Rated Input Voltage:
600 V
MPPT Voltage Range:
180 V - 1000 V
Number of MPPTs:
9
Maximum Input Strings per MPPT:
2
Maximum Input Current per Path:
15 A
Maximum Input Current:
270 A (9 * 30 A)
Maximum Allowable Current at Input Terminals:
30 A
Maximum DC Short-Circuit Current:
360 A (9 * 40 A)
Output
:
Rated Output Power:
110 kW
Maximum Output Power:
121 kW
Maximum Output Apparent Power:
121 kVA
Maximum Output Current:
183.3 A
Rated Grid Voltage:
3 / N / PE, 230 V / 400 V
Grid Voltage Range:
320 V - 480 V
Rated Grid Frequency:
50 Hz / 45 Hz - 55 Hz
Grid Frequency Range:
60 Hz / 55 Hz - 65 Hz
Total Current Waveform Distortion:
< 3% (at rated power)
Power Factor:
> 0.99 (at rated power)
Adjustable Power Factor Range:
0.8 Leading ~ 0.8 Lagging
Feeder Phase / Output Terminal Phase:
3 / 3
Efficiency
:
Maximum Efficiency:
98.60%
China Efficiency:
98.00%
Protection:
DC Reverse Connection Protection:Equipped
AC Short-Circuit Protection:Equipped
Leakage Current Protection: Equipped
Grid Monitoring: Equipped
DC Switch: Equipped
String Detection: Equipped
PID Repair: Optional
DC Arc DetectionOptional
Surge Protection: DC Level 2 / AC Level 2
General Parameters:
Dimensions (W×H×D): 1020 mm * 795 mm * 360 mm
Weight: 82 kg
Isolation Method: Transformerless
Protection Class: IP66
Night Self-Consumption:< 4W
Operating Temperature Range:-30~+60 °C
Operating Humidity Range: 0~100%
Cooling Method:Intelligent Forced Air Cooling
Maximum Operating Altitude:4000 m (> 3000 m with derating)
Display: LED, Bluetooth + APP
Communication:RS485 / 4G (Optional)
DC Terminal Type: EVO2 Compatible
AC Terminal Type: OT/DT Terminals (Maximum 70 mm² - 240 mm²)
Compliance Standards: NB/T 32004 - 2018; GB/T 37408 - 2019
Grid Support: ZVRT, Anti - Islanding, Active and Reactive Power Regulation, PF Control, Soft Start / Shutdown
