WM1100C-6 is designed to work on plains, hills and mountain areas. It also works on dry land and paddy field which grows vegetables, tobacco, flowers or greenhouses, orchards, gardens.

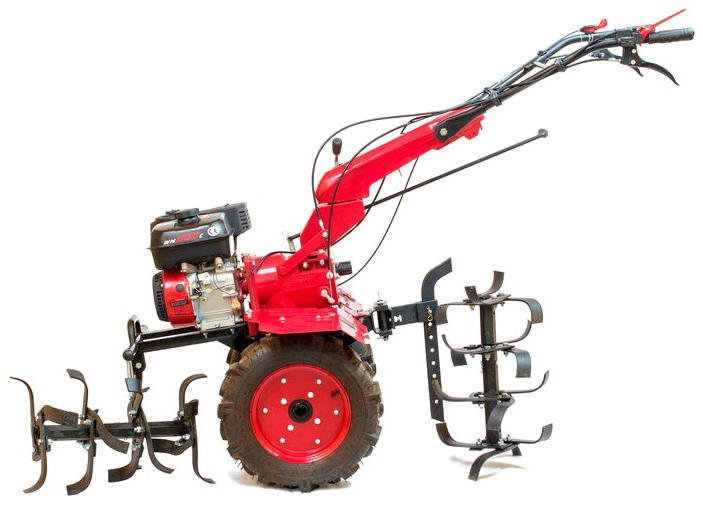

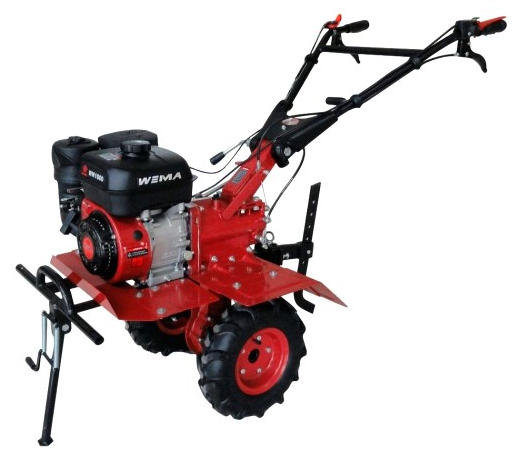

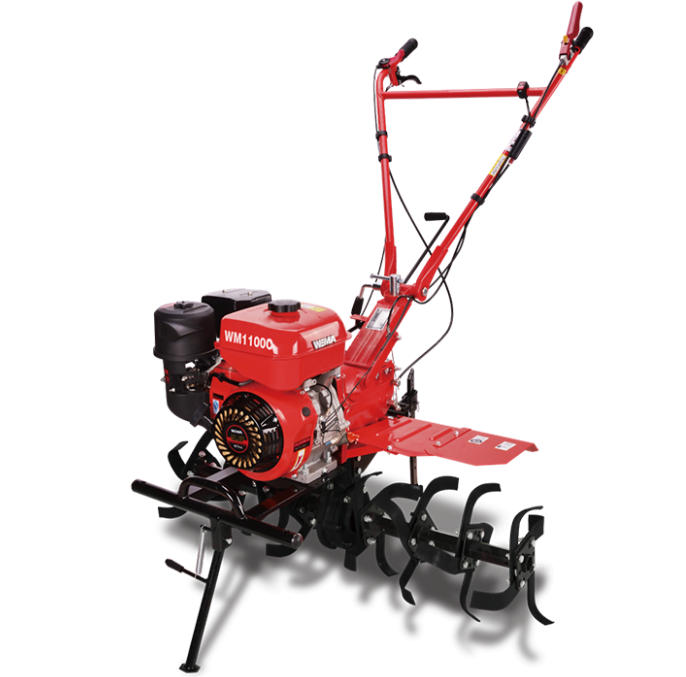

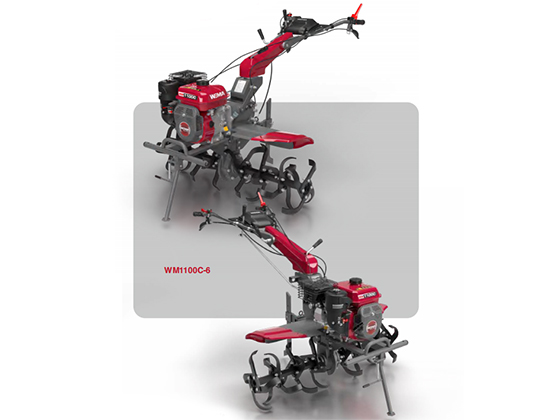

Two-wheel tractor Weima WM1100C-6 Deluxe is designed for intensive and long-term operation. Weima WM1100C-6 Deluxe goes with rotator cutters for cultivation (2+1+1) with a width of up to 110 cm. It can work with a wide range of attachments, including back rotary and rotary mower, powered by the PTO shaft. In addition, you can mow grass for the purpose of hay harvesting and transport it right away on a trailer. But this is not all, the model is universal ― with the help of a motor-block shovel, it can produce snow removal work.

This cultivator is equipped with a reliable Weima W230F petrol engine, which is known for its excellent functionality and performance. Its main advantages are low fuel consumption and long-term operation with high loads.

In this model a completely new transmission was developed with a reduced number of gears. This improvement will make your work easier and safer.

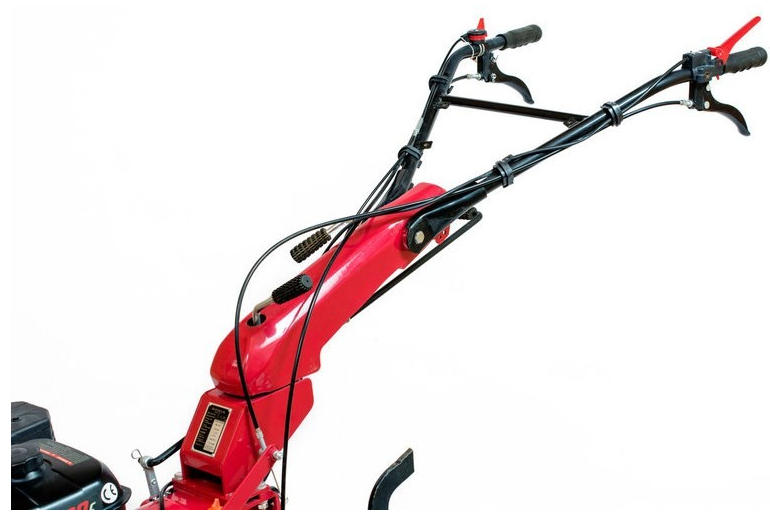

The Weima WM1100C-6 Deluxe is equipped with pneumatic tires 5.00–12“, which ensure flawless transportation. In addition, this model is equipped with a new type of steering wheel KM, which allows you to more comfortably control the device.

The Weima Tiller is delivered empty. You need 1.9 – 2.1 L gear oil (SAE 80w-90) and 0.6 – 0.7 L engine oil (SAE 10w-30 or 10w-40) for the basic device. In addition, for the Weima WMBF-6 back rotary cultivator you need 1.6 – 1.7 L gear oil (SAE 80w-90).

Weima WMKM1100-6 is an active attachment, which is suitable for tillers Weima WM1100-6-Seria. This model was specially developed for mowing grass, hay and small shrubs up to 10 mm diameter.

With Weima WMKM1100-6 rotary mower you can settle the height of the grass cutting. During the operation there is no need for operator to carry rotary mower. After the installation of rotary mower on cultivator you set the height and then lay it with the whole mass of the rototiller on the ground. After it you start the tiller, activate the rotary mower and start mowing.

Rotary mower Weima WMKM1100-6 consists of two discs, rotating towards each other, and 8 knives (4 in each disc). They can rotate freely and are secured with a detachable pin. When discs rotate, knives start cutting grass under the centrifugal force.

It is recommended to lubricate gears with oil after every 12 hours of operation, what significantly increase service-life of rotary mower Weima WMKM1100-6.

Features:

• 1. Powerful high efficient engine.
• 2. Newly-designed handle type drain plug on carburetor allows easy operation and convenient maintenance.
• 3. Normally-opened clutch allows safety and reliable design for stop while hand released.
• 4. Cast iron case, all gear transmission, perfect structure for durability.

Parameters of WM1100 Series Tiller:
