Product Introduction
The wrapping machine of Z series is suitable for lot cargo transportation in shipping container and bulk material pallet wrapping. The wrapping machine
are widely used in industry of glass products, metal, electronics, paper making, ceramics, chemical, food, drink, and building material etc. It can improve
efficiency and reduce the wastage in transportation. The wrapping machine will provide advantages including dust proof, waterproof and packing cost
saving. It is the best choice to upgrade the product packing level.
This product can be operated and controlled remotely. The operator can start or stop the equipment without touch the equipment, improve work
efficiency, reduce labor intensity!.

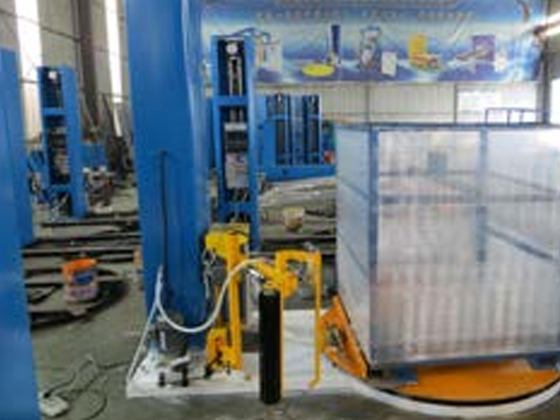

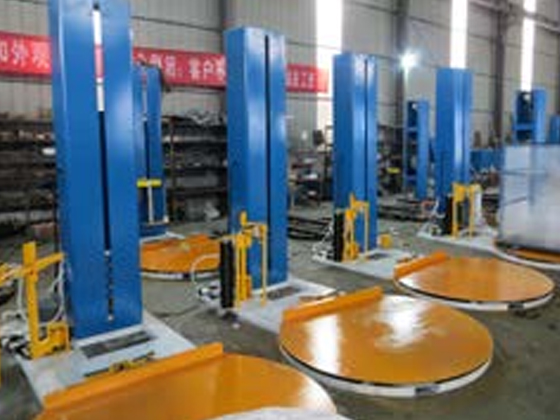

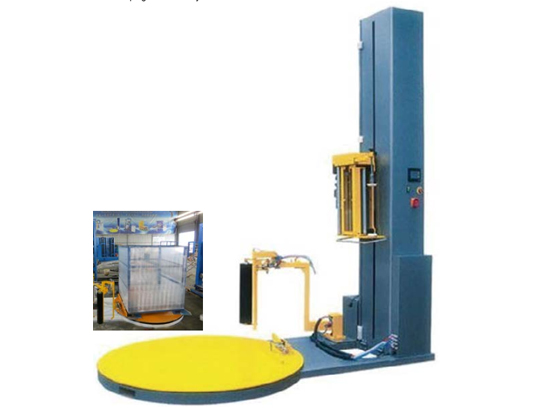

Home/Packaging equipment/Depalletizer/TP1650F-ZF Automatic stretch film pallet wrapping machine/

Shandong Sapphire Packaging Machinery Co., Ltd.
ShanDong-JiNan, ChinaWrap specification:
(500-1200)mm*(500-1200)mm(L*W)
Packing height: L type: 800-1800mm H type:
L type: 1800mm H type: 2400mm Y type: 2800mm
Wrapping efficiency:
20- 40 tray/ hour
Turntable speed:
0-12 RMP Adjustable frequency, turntable slow start and stop
Turntable diameter:
1650mm
Turntable height:
78mm
Turntable capacity:
2000 kg
Film Carriage system:
Pre-Stretch to 250%; film feeding, cutting, and clamping automatically and speed adjustable.
Film feeding/cutting unit:
Pneumatic control
Pneumatic system:
0.6-0.8Mpa, 400-700ml/min
Lift Tower:
Double chains and lifting speed adjustable
Control system:
PLC program control, changeable for wrapping layer and time, automatically reset of turntable and senses measure of the goods height.
Weight:
700kg
Dimension (L*W*H):
2745mm (L) *1650mm (W) *(2270-2870) mm (H)
Power /Voltage: turntable:
0.75kw, film carriage 0.35kw; tower: 0.37kw; AC220V
