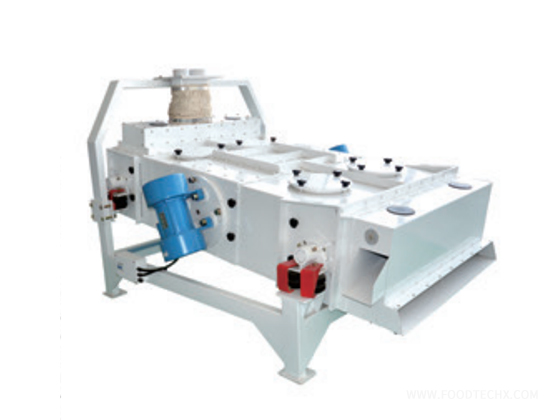

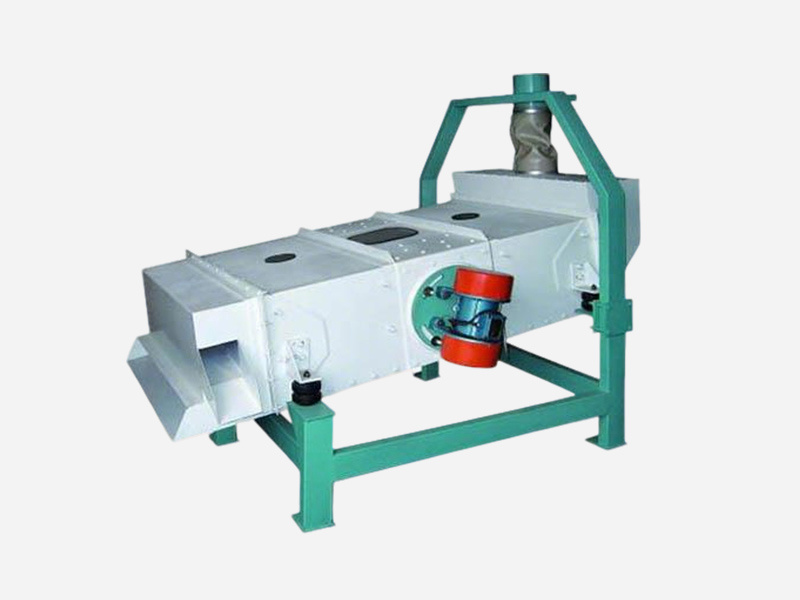

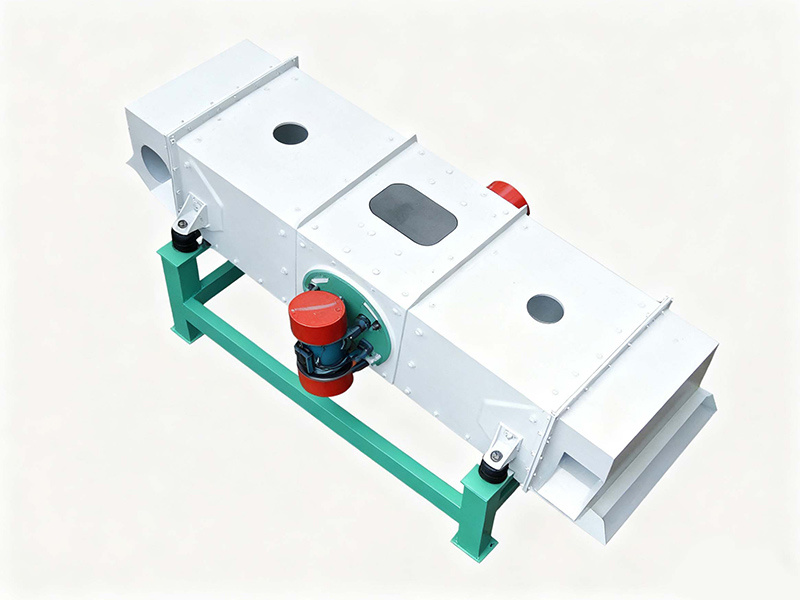

, ChinaThe vibrating cleaning screen effectively separate large, medium, small andlight impurities from corn, rice, wheat, bean, rapeseed and other materials, so asto achieve the material size balance and cleaning effect.It is often used in thecleaning section of screening and separation in grain processing plants,feedstuffs and oil pressing plants,also be used in the final rescreening grading section.The material passes through the upper and lower screen surfaces forthree levels of material distribution, and cooperating with the wind system achieving the effect of classification and cleaning.
type
TQLZ-63
Sieve dimension (mm)
1410x1220x2030
Input capacity(T/h)
:
Pre-Cleaning
4
Cleaning
3
Sieve tiilt angle (°)
:
Pre-Cleaning
6
Cleaning
6
Angle of vibration
:
Pre-Cleaning
:25
Cleaning
20
Amplitude (mm)
4-5
Air Volume (m³/min)
22
Power(kw)
2x0.25
Dimension (mm)
1410x1220x2030
