Control Method and Features:

The Balanced Temperature and Humidity Control (BTHC) system uses a P.I.D. method to control the SSR, ensuring that the system's heating output equals the damp heat loss, thus enabling long-term stable operation.

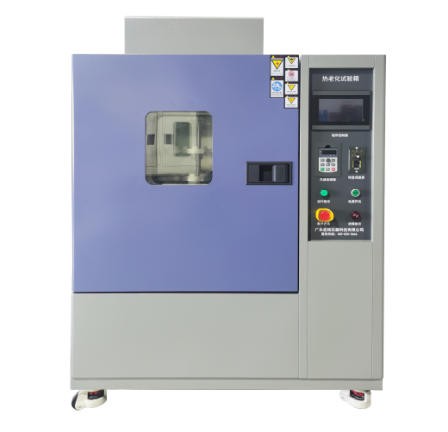

The thermal aging test chamber is used in research institutions and factories for thermal aging tests on plastic materials (rubber, plastics), electrical insulation materials, and other materials. It conforms to national standards such as GB/T 3512-2014 and ISO 188:2011.

I. Performance:

At room temperature (20℃), under no-load conditions:

1.1 Temperature range: RT+10℃～200℃

1.2 Temperature fluctuation: ±0.5℃

1.3 Temperature uniformity: RT+10~100℃±1℃; 100~200℃≥2℃

1.4 Air exchange rate: 2~50 times/hour

1.5 Timer: 0～999 hours

1.6 Air velocity: 0m/s~2.0m/s adjustable

1.7 Test rack: 10RPM/min test rack (one layer)

1.8 Heating rate: Approximately 3~5℃/min



II. Structure and Materials:

2.1 Inner Chamber Material: Stainless Steel Plate

2.2 Outer Chamber Material: SPCC Board with Electrostatic Baking Paint

2.3 Insulation Material: Glass Wool

2.4 Air Circulation System:

2.4.1 60W Motor, 1 unit

2.4.2 Stainless Steel Extended Shaft

2.4.3 Multi-blade Fan (SIRCCO FAN)

2.4.4 Adjustable Louvers to ensure uniform temperature distribution within the test chamber

2.5 Chamber Door: Single-panel door, opens to the left, handle on the right-hand side

2.5.1 Flat Embedded Handle

2.6 Ventilation System:

2.6.1 25W Multi-blade Snail Fan

2.6.2 One Code Controller

2.6.3 One Adjustable Air Damper

III. Control System:

3.1 Temperature Controller: Touch Screen Controller

3.2 Power Meter: Digital Display Button-Type Power Meter

3.2 Heating System:

3.2.1 Heater: Finned heat sink, nickel-chromium alloy U-shaped high-efficiency heater, automatically calculated with high-precision PID+SSR control (calculation cycle: 1-4S adjustable), ensuring heat loss is equivalent to heating output, thus saving approximately 30% more electricity than traditional ON/OFF control.

3.3 Temperature Sensor: DIN standard Class A, ψ4.8mm, SUS #304 stainless steel, PT 100Ω, 1 piece.

3.4 Safety Devices:

3.4.1 Zero-crossing gate fluid power controller

3.4.2 Air burnout prevention protector

3.4.3 Phase loss/reverse phase protection switch

3.4.4 Circuit fuse and fully sheathed terminals

3.4.5 Buzzer

IV. Standard Configuration:

4.1 Power cord 4.0 mm² x 5 cores, 2.5m long low-impedance rubber cable, 1 piece.

4.2 One set of controller instruction manual, one set of operation manual

V. Ambient Environment:

5.1 Permissible operating temperature range: 0~35℃

5.2 Guaranteed performance range: 5~35℃

5.3 Relative humidity: Not greater than 85%

5.4 Atmospheric pressure: 86～106Kpa

5.5 No strong vibrations nearby

5.6 No direct sunlight or other heat sources

VI. Power Supply: AC 3ψ4W 380V 50HZ; Maximum power: 4.5KW
