- Adopting Cortex-A7 dual core processor, with a main frequency of 1GHz and built-in 128MB memory
- Rich in functions, suitable for various occasions
- Stronger sealing performance, providing better protection against dust, water vapor, and debris
- The product structure conforms to lightweight design, making it lighter and thinner
- New TouchWinPro software with comprehensive feature upgrades

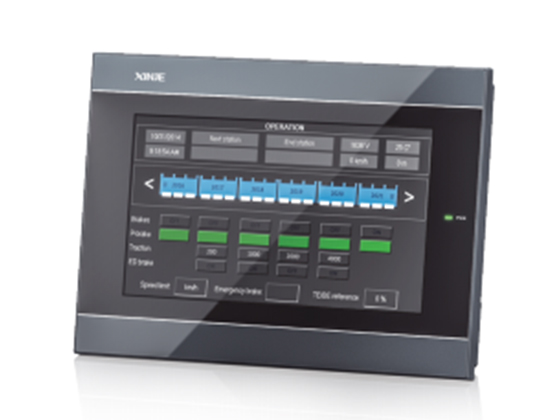

Home/Accessories/Consumables/Electrical/Touch screen/Touch screen standard type HMI TS3-1000-M 10.1" /

WUXI XINJE ELECTRIC CO.,LTD
, ChinaProduct models
TS3-1000-M
Size
10.1″
Resolution
1024*600
LCD
TFT LCD display with LED backlight
Display color
16.77 million colors
Brightness
200 cd/m²
Touch panel
Four-wire resistive touch panel
Service life
Above 50000 hours, ambient temperature 25℃, 24 hours operation
Processor
Cortex-A7 1GHz
Memory
128MB
COM1
RS232/RS485
COM2
RS232/RS485/RS422
USB-A
Flash disk port, USB2.0 standard
USB-B
USB download port, USB2.0 standard
Input voltage
DC24V (voltage range: DC22V-DC26V)
Consumption current
270mA
Allowable instantaneous power failure
Below 10ms (actual power loss less than 1s)
Withstand voltage
AC1000V, 10mA, less than 1 minute (signal and ground)
Insulation impedance
DC500V, above 10MΩ
Operation temperature
0-50℃
Storage temperature
-20-60℃
Ambient humidity
10%RH-90%RH (no condensation)
Anti-interference
Voltage noise: 1500Vp-p, pulse width 1us, 1 minute
Ambient air
No corrosive gas
Cooling method
Natural air cooling
Protection level
Front panel IP65
Display area (mm)
219.6*131.76
External dimension (mm)
277.0*191.7*37.5
Opening size (mm)
260.2*179.7(±0.5)
Authentication
CE marked
- Communication/programmingcable
- USB to serial port convertor
- USB printer cable
- DB9 to RS485 cable
- X-NET fieldbus cable
- Relay module
- Program downloader
- XD expansion module extension cable
- XD series terminal resistance
Product Description
Technical Parameter

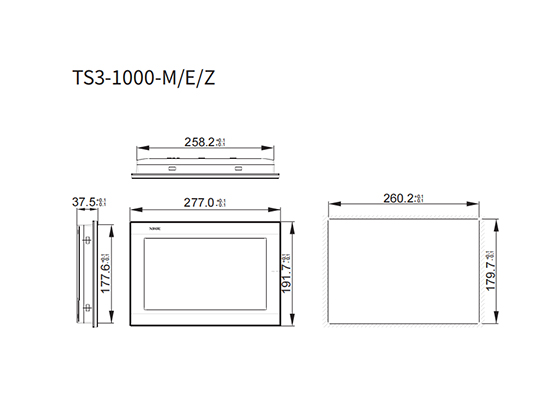

Technical Drawing
