Weihai Kunke Flow Instrument Co.,Ltd.
ShanDong-WeiHai, China
Accuracy:
± 1%
Flow rate range:
0 ~ ± 10m / s, forward and reverse measurement
Pipe diameter:
DN50 ~ dn6000
Fluid temperature:
- 30 ℃ ~ 160 ℃
Fluid type:
water, seawater, sewage, acid-base liquid, alcohol, beer, various oils and other single and uniform liquids that can conduct ultrasonic waves
Pipe material:
steel, stainless steel, cast iron, copper, PVC, aluminum, FRP and other dense pipes, and lining is allowed
Accuracy+1%
Flow rate range0~I10m/s, forward and reverse measurement
Pipe diameterDN15~DN6000mm
Fluid temperature-30°C~160°C
Type of fluidWater, sea water, sewage, acid and alkali, alcohol, beer, variousoils, etc., a single uniform liquid that can conduct ultrasonic waves
Pipe materialAll dense pipes such as steel, stainless steel, cast iron, copper,PVC, aluminum, glass fiber reinforced plastic, etc. are allowed tobe lined
Signal output1 way 4~20mA current output impedance 0~1K, accuracy 0.1%1 channel OCT pulse output, pulse width 6~1000ms 1 relay output
Signal input3 channels of 4-20mA current input, can be used as a datacollector to connect to a three-wire PT100 platinum resistanceto achieve heat measurement
Communication InterfaceIsolated RS485 serial interface, support MODBUS protocol
Power supplyDC8~36V or AC10~30V, AC85~264V,with waterproof power adapter
Product Description
Technical Parameter
Configuration List

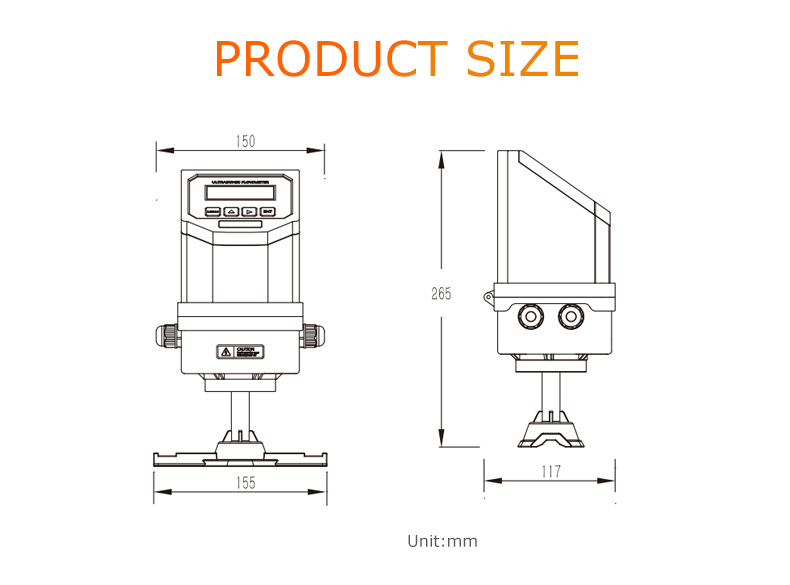

Technical Drawing
