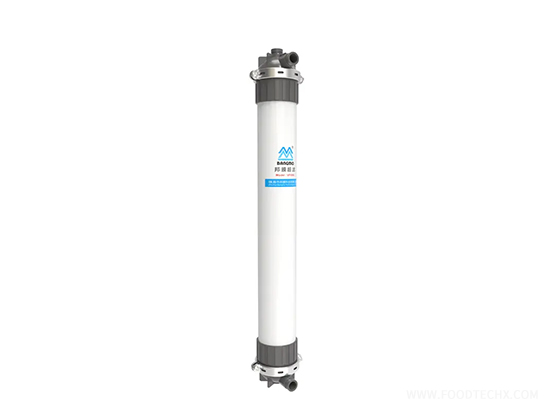

Home/Water Treatment Equipment/Pure Water /UF Membrane Module 8 inch PVDF --- UFf200 Circuit Board Waste Water Treatment/
Zhuhai Bangmo Technology Co., Ltd.
, ChinaFiltration Performance
:
Ingredient :
Effect :
SS, Particles > 1μm
Removal Rate ≥ 99%
SDI
≤ 3
Bacteria, Viruses
> 4 log
Turbidity
< 1NTU
TOC
Removal Rate: 0-25%
Technical Parameters
:
Filtering Type
Outside Pressure
Membrane Material
Modified PVDF
MWCO
200K Dalton
Membrane Area
47m2
Membrane ID/OD
0.8mm/1.3mm
Dimensions
Φ200mm*1710mm
Connector Size
DN50 Clamping
Application Data
:
Pure Water Flux
9,400L/H (0.15MPa, 25℃)
Designed Flux
40-120L/m2.hr (0.15MPa, 25℃)
Suggested Working Pressure
≤ 0.2MPa
Maximum Transmembrane Pressure
0.15MPa
Maximum Backwashing Pressure
0.15MPa
Air Washing Volume
0.1-0.15N m3/m2 .hr
Air Washing Pressure
≤ 0.1MPa
Maximum Working Temperature
45℃
PH Range
Working: 4-10; Washing: 2-12
Operating Mode
Cross-flow or Dead-end
Feeding Water Requirements:
Turbidity≤ 25NTU
Oil & Grease≤ 2mg/L
SS≤ 20mg/L
Total Iron≤ 1mg/L
Continuous Residual Chlorine≤ 5ppm
CODSuggested ≤ 500mg/L
Operating Parameters:
Backwashing Flow Rate100-150L/m2.hr
Backwashing FrequencyEvery 30-60min.
Backwashing Duration30-60s
CEB Frequency0-4 times per day
CEB Duration5-10min.
CIP FrequencyEvery 1-3 months
Washing Chemicals :
Sterilization15ppm Sodium Hypochlorite
Organic Pollution Washing0.2% Sodium Hypochlorite + 0.1% Sodium Hydroxide
Inorganic Pollution Washing1-2% Citric Acid/0.2% Hydrochloric Acid

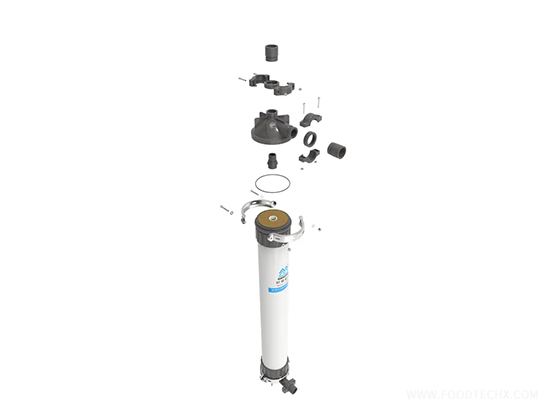

Component Material:
Component :Material :
MembraneModified PVDF
SealingEpoxy Resins
HousingUPVC
- Product Parameters
Product Description
Technical Parameter
Configuration List

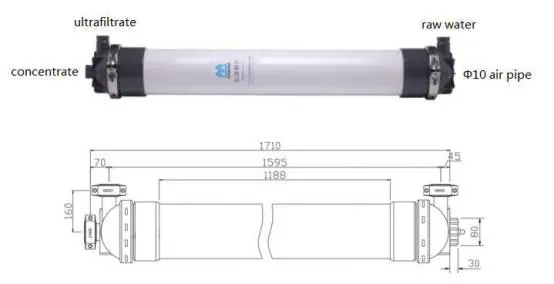

Technical Drawing
