Home/Agricultural machinery/Aquacultural Machinery/Unmanned Agricultural Machinery Operation System---SF-JD2204/

AIForce Technology Co., Ltd.

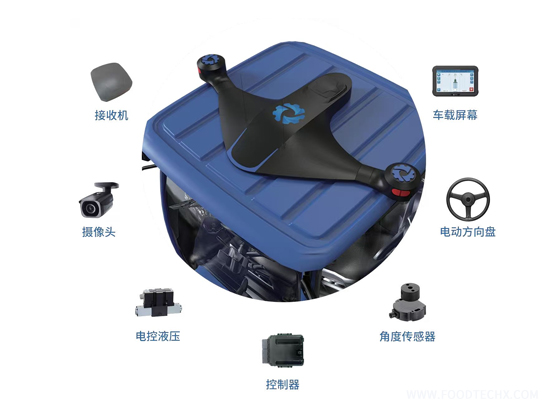

BeiJing, ChinaThe Zhiyun Series is positioned as an AI and autonomous driving technology solution for agricultural machinery, enabling 24/7 unmanned precision farming. It replaces manual labor for plowing, sowing, planting, harvesting, and transportation, supporting diverse operation modes via APP and remote control.
With real-time data on crop conditions, positioning, and navigation, the system enables precise control through a big data platform, optimizing farmland utilization and operational efficiency. It reduces labor requirements, addresses the shortage of skilled operators, and enables sustainable, intelligent agricultural production.
Functional Features
- Friendly human-machine interaction: Designed for agricultural professionals, enabling intuitive operation and one-to-multi-machine management.
- Intelligent environment perception: Multi-task fusion of radar and depth learning for real-time crop, obstacle, and personnel detection, supporting 24/7 operation in heavy rain, snow, dust, and full load.
- Active safety unit: Long-distance warning + short-distance braking/stopping/avoiding for collision protection.
- Industrial-grade remote control unit: Stable, portable, and long-range for enhanced operational efficiency.
- Beidou-based fusion positioning: Supports centimeter-level RTK and GNSS signal stability for uninterrupted intelligent farming.
- Adaptable to 20+ tractor models: With intelligent control units, it adapts to different power and control types for optimal performance.
- Highly integrated one-click unit: No wiring, reversible installation, and quick calibration/installation.
Item
SF-JD2204
Operation modes
Full auto-plowing, full auto-rotary tilling, full auto-seeding, full auto-planting, full auto-harvesting, full auto-unloading
Driving modes
Full auto, remote transport, AB-line, auto-steering
Route planning
Global planning, AB-line planning
Obstacle handling
Auto-stop, auto-avoidance
Positioning accuracy (cm)
±2.5
Control accuracy (cm)
±1
Optimal operation speed (km/h)
4–8
Perceptual sensor
4mm-wave radar + camera
Steering sensor
360° coverage
Steering torque (N·m)
10
Display
10.1-inch high-brightness display
Engine power (HP)
220
Engine reserve
30%
Transmission
20F×20R AutoQuadPLUS
Drive mode
4-wheel drive
Dimensions (L×W×H, mm)
6070×3010×3162
Wheelbase (mm)
2860
Hydraulic output
4-way
Three-point hitch
Rear, 63.2kN
Fuel tank (L)
304
Weight (kg)
8942
- Second Prize in the First Nvidia Edge AI Developer Competition
- Showcased at the World's Leading Robotics Conference, IEEE ICRA 2024
- Second Prize in the China Agricultural Robotics Competition
- Journal of Agricultural Engineering, Volume 39, Issue 1 Cover
- AI Application Benchmark Case
