AIForce Technology Co., Ltd.

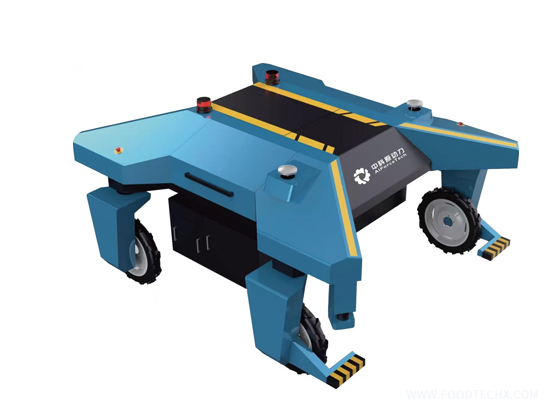

BeiJing, ChinaThis is China’s first all-in-one unmanned intelligent robot integrating inspection, pesticide spraying, and weeding. It leverages cutting-edge deep learning, autonomous driving, and highly flexible chassis control technologies to autonomously collect crop growth data, identify crops and weeds, and apply pesticides with precision. Centimeter-level detection and targeted spraying drastically reduce pesticide usage, cut costs, minimize environmental impact, and protect crops from chemical damage to ensure yield. Powered by lithium batteries, it meets the demands of green and smart agricultural production with low emissions.
Functional Features
- Fully automatic autonomous navigation: Enables unmanned operation, with one-tap job status monitoring via APP.
- Eco-friendly power supply: Lithium battery power reduces carbon emissions for green operation.
- Precise pesticide application: Cuts costs, boosts efficiency, reduces soil pollution, and protects the environment.
- 24/7 operation: Equipped with high-precision infrared visible cameras, doubling work efficiency.
- Efficient and sustainable: Low power consumption, 10 mu/h efficiency, and 80 mu coverage per operation.
- Superior mobility: Four-wheel drive and four-wheel independent steering adapt to various complex terrains.
External dimension (L*W*H)[mm】
2900 × 2800 × 1600
Weight [kg]
950 (empty); 600kg battery + 200L pesticide when loaded
Wheel track (m)
2.2, 2.24, 2.4 (3 adjustable settings)
Wheelbase (m)
2
Travel speed (m/s)
1.5 (max)
Boom width (m)
1.5, 1.8
Nozzle count
20
Spray height (cm)
35–70 (adjustable)
Sprayable formulations
Contact, systemic, non-systematic, and non-toxic herbicides
Detection accuracy
>99% for pest detection; >99% for weed identification; >95% for full coverage of crop surfaces
Working efficiency (mu/h)
10, with 6 hours of continuous operation (including battery swap and pesticide refill)
Battery power
Lithium battery: 60V 100AH
Drive mode
Electric four-wheel drive, total power 9kW
Navigation mode
Electromagnetic navigation technology
Obstacle avoidance mode
Fully automatic navigation (GPS+RTK+IMU)
Image acquisition
4G/5G
Safety system
High-definition visible camera; laser obstacle avoidance + safety bumper sensors
- Second Prize in the First Nvidia Edge AI Developer Competition
- Showcased at the World's Leading Robotics Conference, IEEE ICRA 2024
- Second Prize in the China Agricultural Robotics Competition
- Journal of Agricultural Engineering, Volume 39, Issue 1 Cover
- AI Application Benchmark Case
