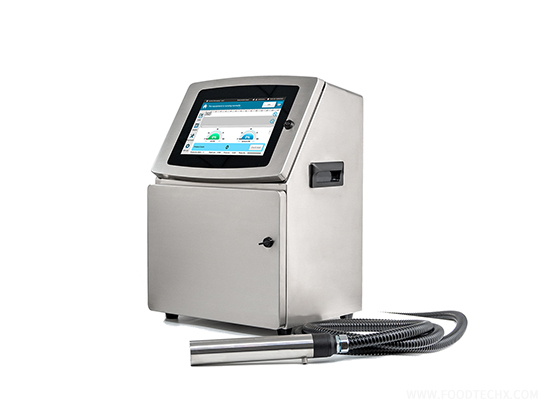

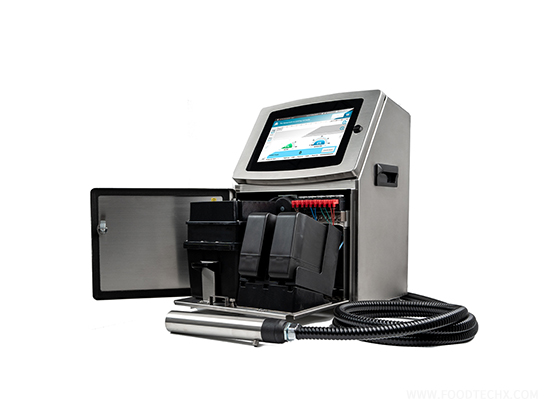

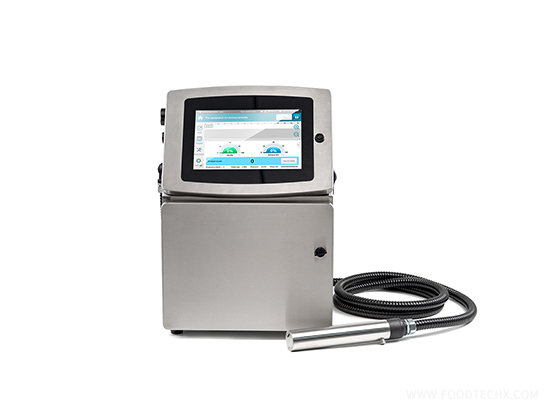

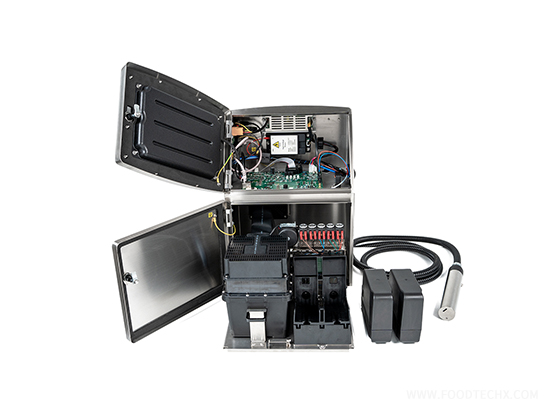

GuangDong-GuangZhou, ChinaV2000 Series Small Character Inkjet Printer
- Featuring a highly modular design (including printing module, ink module, valve module, etc.), the V2000 series is especially suitable for high-efficiency printing of micro characters. It is widely used in food, chemical, pharmaceutical and other industries.
- With excellent printing quality and consistent stability, it can operate trouble-free in long-term, high-load production environments and meet various coding requirements.
Proofing effect:

- 注塑壳体:Injection molded housing
- 封塑包装:Plastic sealed packaging
- 线缆:Cables
- 电子元件:Electronic components
Printing Parameters
:
Nozzle Specification:
60 µm
Hose Length:
3 m
Printing Height:
2–16 mm
Printing Distance:
3–30 mm
Number of Printing Lines:
1–5 lines
Maximum Printing Speed:
390 m/min (5×1 dot matrix, dot pitch 0.5 mm)
Counter:
Up to 24 channels
Ink Type:
High adhesion, high temperature resistant, food‑grade, dye‑based ink
Suitable Materials:
Cartons, cables, plastics, metals, plates, pipes, stone, glass, electronic components, automotive parts, industrial/chemical packaging, pharmaceutical/food/gift packaging boxes
Printable Content:
Text, time, date, graphics, shift codes, serial numbers, dynamic barcodes/QR codes, dynamic serial port data, dynamic database (additional content available on request)
Machine Parameters:
Operating System:Embedded Linux secure OS
Display:10.1‑inch capacitive touch screen; Resolution: 1280 × 800
Protection Rating:IP65
Material:SUS 304 stainless steel
Rated Power:100 W
Certifications:CE, RoHS
Operating Environment:Temperature 0–45 °C / Humidity 30–70 % RH
External Interfaces:Photoelectric sensor, encoder, alarm light, message control
Power Supply: Input 100–240 V AC
Net Weight:18 kg
Dimensions :
Machine Body: 384 × 315.5 × 508.64 mm
Print Head:41.4 × 262 mm
Communication Interfaces:USB, RS232, Ethernet (supports connection to enterprise MES systems; various external device protocols can be added)
Supported Languages:Over 40 national languages (including Chinese, English, Arabic, Danish, German, Florida‑accent English, French, Finnish, Korean, Norwegian, Portuguese, Japanese, Spanish, Italian, etc.)

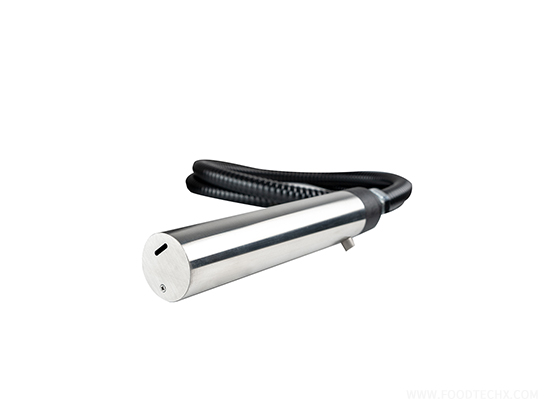

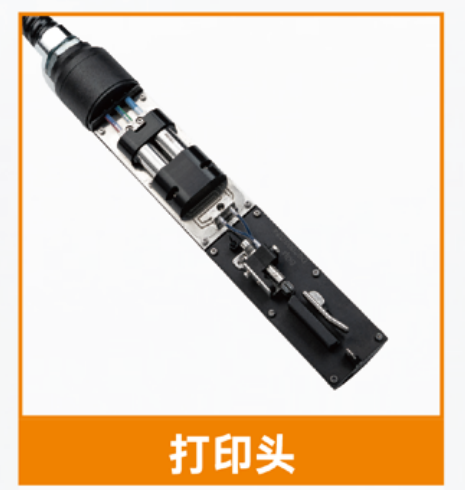

- Print Head

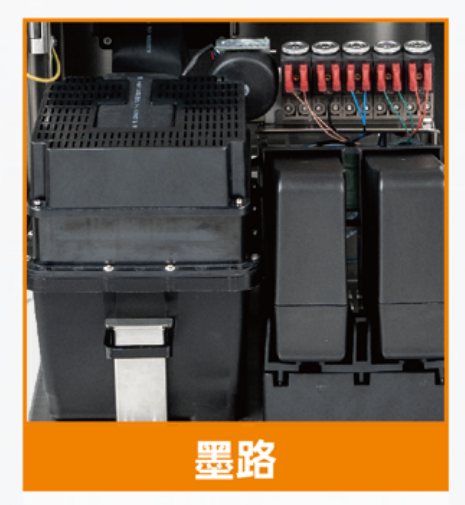

- Ink System

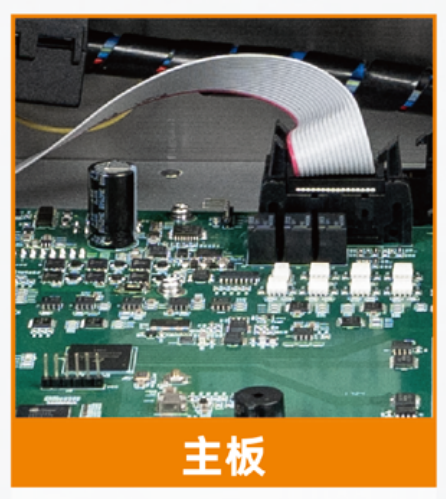

- Mainboard

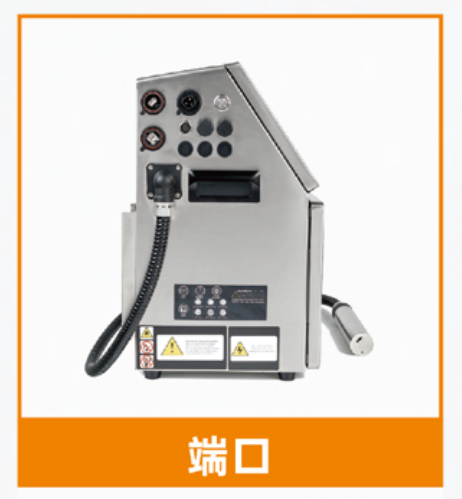

- Port

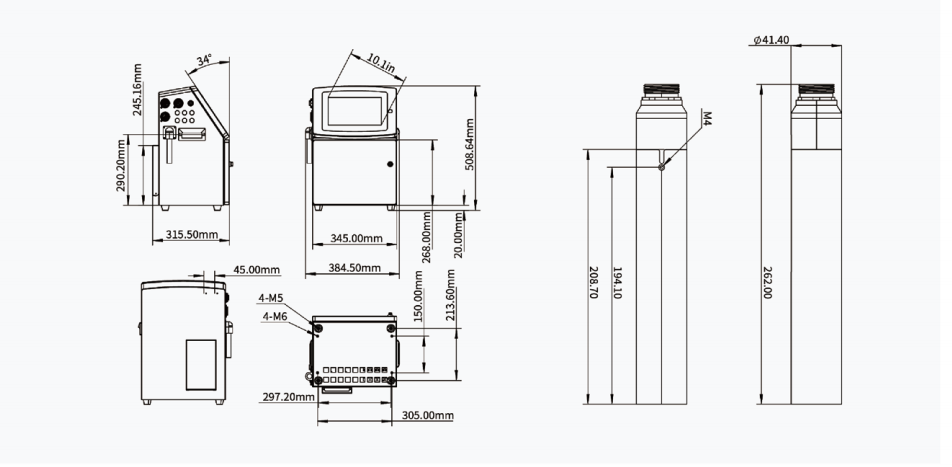

- Technical drawing
