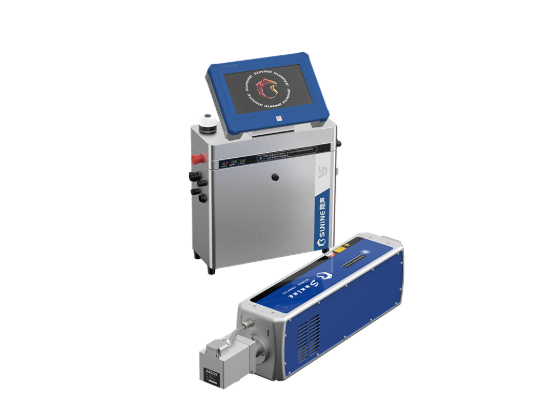

Home/Packaging equipment/Coding Equipment/V5 series CO2 laser marking machine- 30W-V310C /

Guangzhou Xiangsheng laser Technology Co., LTD
GuangDong-GuangZhou, ChinaProduct Introduction
Model:
30W-V310C
Overall Material
Anodized aluminum structure (optical path) Stainless steel (control box)
Laser Type
Sealed metal radio frequency carbon dioxide laser generator
Laser Wavelength
10.6um
Printing Method
High-precision dual-scan mode
Marking Speed
≤18000mm/s
Main Control
Highly integrated main board, 10-inch external touch screen, V5 operating system
Operating System
Linux
Cooling System
Normal temperature air cooling
Inkjet Marking Line Type
Dot matrix, vector all-in-one machine (can print both dot matrix and vector)
Reflector Size
Standard: 30W-8.5mm
Inkjet Range
Standard: 90mm×90mm, Optional maximum range: 450mm×450mm
Positioning Method
Directional red light positioning, automatic focusing
Number of Printed Character Lines
Any number of lines within the inkjet range
Production Line Speed
0 - 300m/min (specific speed related to product material and printing content)
Font
Simplified Chinese, Traditional Chinese, English, Korean, Russian, German, Spanish, French, Italian, Japanese, Portuguese, Turkish, Indonesian, Persian, etc.
File Format
BMP/DXF/HPGL/JPEG/PLT
Barcode/QR Code
Code128A, Code128B, Code128C, Code39, Code93, Ean13, PDF417, O1 Code; QR, DM, GS1-DM, AztecCode, HanxinCode, DotCode, etc.
Power Supply
220V
Maximum Power Consumption
30W≤800W
Machine Net Weight (Main Unit + Control Box)
30W-33kg
Optical Path Size
758mm×177mm×146mm
Control Box Size
403mm×383mm×160mm
Interface
RS-232/USB2.0/Ethernet/I/O
Shell Protection Grade
IP54 (laser lens head part)
Pollution Grade
2
Overvoltage Category
II
Adaptation Temperature
5 - 45°C
Laser marking head Beam expander:United States
Laser marking head High-speed scanning galvanometer:Our company
Laser marking head Field lens:United States
Laser:Our company
Red Light Positioning System:Our company
Computer and software control system 7-inch touchscreen:Our company
Computer and software control system Marking Software System:Our company
Power Switch:Taiwan
Bracket:Our company
Photoelectric Switch:Japan
Emergency Stop Switch:France
Optical Path Deflector:Our company
Handheld Controller:Our company
Purifier:Our company
