The stainless steel high-speed ham chopper is a key piece of equipment in meat processing. Its high-speed rotating blades chop raw meat into a fine paste, while simultaneously mixing other ingredients evenly. It's an essential meat processing machine for meat processing plants, canteens, and hotels. Our company's choppers feature an optimal combination of blade speed, pot speed, blade-pot clearance, blade material, and blade hardness. This superior design ensures fine chopping, minimal temperature rise, and short chopping time, improving emulsification, elasticity, fineness, and yield.

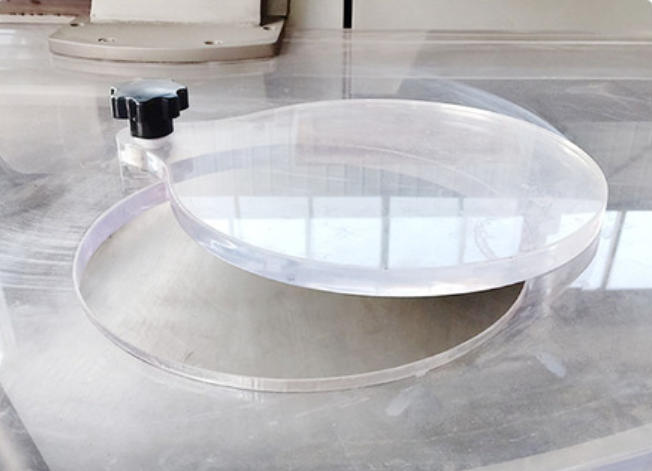

Our choppers achieve optimal blade speed, pot speed, and blade-pot clearance for effective chopping and emulsification. Waterproof strips are installed on the pot lid and control panel to prevent leakage during chopping or cleaning. The blade shaft uses multi-layer sealing to extend bearing life, prevent oil from entering the pot, and maintain good lubrication of the rotating parts, ensuring smooth transmission. Variable frequency control can also be used, offering a wide range of blade speed adjustments to suit various process requirements.

Advantages of the fish paste chopper:

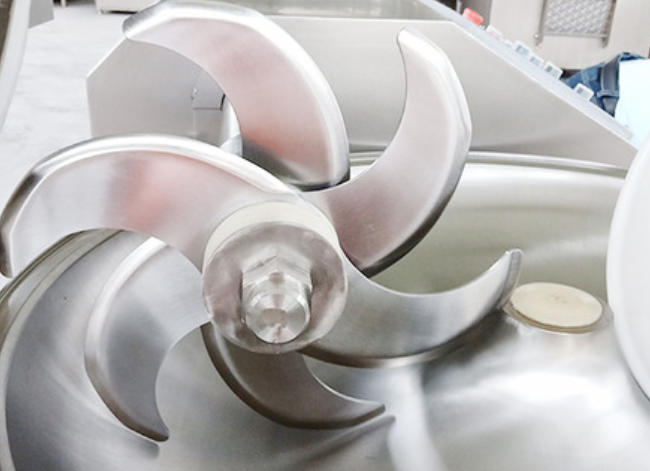

◎ The chopping blades are made of high-quality 9Cr15 stainless steel by domestic manufacturers; imported blades are also available as an option.

◎ The chopping pot is made by a leading domestic foundry specializing in high-quality products.

◎ The gap between the chopping blade and the chopping pot is ≤1.5mm for ZB-20 and ZB-40 models, and ≤2mm for ZB-80, ZB-125, and ZB-200 models.

◎ The entire machine is made of 304 stainless steel, with fine workmanship, beautiful appearance, rigorous and reasonable structure, simple operation, and reliable performance.

◎ Variable frequency acceleration.



Preparations before starting:

1. First, secure the equipment firmly to the ground, ensuring all four corners are firmly in contact with the ground. Then connect the power supply.

2. Before trial operation, check the chopper blades and other parts for any looseness during transportation. Only proceed with the trial operation after confirming everything is in order.

3. Before trial operation, briefly turn on the discharge switch or pot switch (rotating pot counter-clockwise). If the discharge switch or pot rotates in the opposite direction, the power supply circuit must be reversed before trial operation. (The 40-type chopper does not have a discharge switch; you need to briefly turn on the pot or observe the blade rotation direction at low speed to determine if the wiring is correct.)

Proper use of the chopper:

1. The sharpness of the chopper blades and the high speed are important factors to consider during use. It is hoped that your chopping process conforms to the technical parameters of the chopper.

2. Overloading or excessively long chopping times will not achieve the desired processing results. This is especially important with frozen meat choppers. It is recommended to first break frozen meat into flakes or chop partially thawed small pieces. Avoid chopping large pieces of frozen meat to prevent blade damage.

3. During use, regularly check the lubrication of all parts and the tightness of bolts. Sharpen or replace the chopping blades as needed. After replacement, reinstall them in the original order, tightening the nuts to the left-hand thread.

4. Proper and reasonable use of the chopper will extend the service life of all its parts.

Safe Use of the Chopper:

Our factory's choppers have a power-off protection function when the lid is opened. However, safety should not be overlooked. Unsafe operation may cause injury to the machine and personnel. Please note that you must not open the lid while the machine is running, and you must not use metal objects to turn the chopping material. Do not put any part of your body inside the lid while the equipment is operating. Power must be disconnected before cleaning after discharging. Avoid spraying water directly onto the electrical components during cleaning to prevent damage to the electrical system.

Why Choose Xindeli Chopping Machines?

From material selection, cutting, pre-assembly, welding, installation, and commissioning, every step of the Xindeli product process is completed by a professional team, ensuring the quality of every piece of equipment from details to appearance, guaranteeing users' peace of mind!

Note:
Simple assembly, can be customized according to customer requirements.

One-year warranty on the whole machine, lifetime free maintenance.
