Guangxi Yuchai Machinery Group Co., Ltd.
, ChinaYC15GFZ2

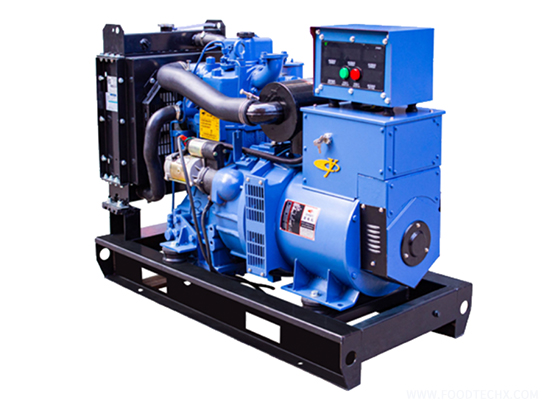

Vertical Single-Cylinder Water-Cooled Diesel Engine
- Power Range: 10kW~15kW
- Applicable Scenarios: Emergency Power Generation, Construction Power Supply
- Features: Powerful and energy-efficient; equipped with a classic water-cooling system, it is energy-saving, economical and practical.
Product Advantages
- Low Fuel Consumption
- Strong Power
- High Reliability
- Long Maintenance Interval
Parameter
YC15GFZ2-F
Model
YC15GFZ2-F
Rated Frequency (Hz)
50/60
Rated Voltage (V)
220, 230, 240, 110/220, 115/230, 120/240, 220/380, 230/400, 240/415 (Customizable voltage; default is three-phase four-wire 400V)
Rated Power (kW)
12; 14.5; 15.3; 18.5
Maximum Power (kW)
13; 15.5; 17; 20.5
Rated Current (A)
22.3; 27; 28.5; 34.4
Phase Number
Single-phase/Three-phase
Generator Type
Brushless Generator
Power Factor cosΦ
≥0.8
Steady-State Voltage Regulation (%)
≤±2
Transient Voltage Regulation (%)
≤±15
Voltage Waveform Distortion Rate (%)
≤5
Insulation Class
F/H
Protection Class
IP42
Structure Type
Open Frame
Noise at 7 Meters dB(A)
120
Fuel Tank Capacity (L)
Bottom fuel tank needs customization
Engine Model
YC1D30-32
Starting Method
Key Start/ATS Automatic
Power Type
Single-cylinder, Vertical, Four-stroke, Water-cooled Cycle, Direct Injection
Air Intake Method
Natural Aspiration
Bore*Stroke (mm)
130*125
Displacement (CC)
1659
Compression Ratio
16.5:1
Speed (rpm)
1500/1800
Diesel Engine Power (kW)
17; 20.5; 17; 20.5
Diesel Engine Net Weight (kg)
240
Fuel Consumption Rate (g/kW.h)
≤245
Fuel Grade (Diesel)
0# (Summer); -10# (Winter)
Engine Oil Grade
15W-40 (Above CI Grade)
Optional Configurations
ATS; Remote Control; Intelligent Output Panel; Wheels and Push Handles, etc. (These configurations are not included by default)
Unit Overall Dimensions (mm)
1180580930 (Without bottom fuel tank); 11806201090 (With bottom fuel tank)
Unit Net Weight (kg)
420
