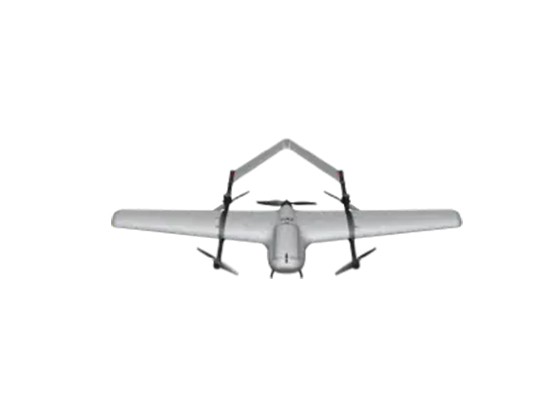

Name: XAG M2000 All-Weather Adaptability Farm Patrolling Drone
Brand: XAG Co., Ltd.
SKU: 0d94cec70c544ebc910dde8259785673
Price: 9999 USD
Availability: InStock
Rating: 4.8 (20 reviews)

XAG Co., Ltd.

, China

Core Value: Heavy-Duty Operation, Efficient Production

Designed for large-scale farmland operations, the XAG M2000 All-Weather Adaptability Farm Patrolling Drone integrates powerful performance, stable reliability, and intelligent control—redefining efficiency in large-area agricultural production.

Key Advantages

✅ Super-Large Payload: Supports heavy-duty spraying, seeding, and spreading to meet large-scale operation needs.
✅ High Efficiency: Optimized workflow and strong power system enable fast coverage of farmland.
✅ Stable & Reliable: Industrial-grade design with excellent environmental adaptability for all-weather operations.
✅ Intelligent Control: Equipped with advanced navigation and obstacle avoidance systems for precise operation.
✅ Cost-Effective: Reduces labor input and operational costs, improving overall farming benefits.
✅ Easy Maintenance: Modular design simplifies daily maintenance and parts replacement.

Core Functions of XAG M2000 All-Weather Adaptability Farm Patrolling Drone

1. High-Efficiency Spraying System

Large-Capacity Chemical Tank: Meets long-duration operation needs without frequent refilling.
Centrifugal Atomization Technology: Uniform droplet size (60–400 μm) for thorough crop coverage and reduced chemical waste.
Adjustable Spraying Width: Flexible adaptation to different crop densities and field sizes.

2. Precision Seeding & Spreading

Large Material Tank Capacity: Supports high-volume seeding (rice, rapeseed) and fertilizer spreading.
Variable-Rate Application: Intelligent control of seeding/spreading density based on field conditions.
Wind-Resistant Design: Ensures uniform distribution even in mild wind environments.

3. Advanced Navigation & Control

Beidou/GNSS Dual-Mode Positioning: Operation accuracy up to ±2.5 cm for precise path following.
Intelligent Obstacle Avoidance: Integrated sensors detect and bypass obstacles (trees, poles) for safe operation.
Multiple Control Modes: Fully autonomous operation, remote control, and one-click operation for user convenience.

4. All-Weather Adaptability

IPX6K Protection Rating: Resists dust, rain, and splashes for reliable use in complex weather.
Wide Operating Temperature Range: Adapts to diverse climatic conditions (-10 ~ 45 ℃).

Technical Specifications

Basic Parameters

Model: XAG M2000 2022
Overall Dimensions (Propellers Unfolded): 4200 × 4200 × 950 mm
Overall Dimensions (Propellers Folded): 2100 × 2100 × 950 mm
Net Weight (Including Battery): 85 kg
Maximum Takeoff Weight: 200 kg
Protection Class: IPX6K

Flight Performance

Maximum Flight Speed: 12 m/s
Maximum Operating Altitude: 30 m
Hovering Accuracy (RTK Enabled): Horizontal ±2.5 cm, Vertical ±2.5 cm
Maximum Single Flight Time: 25 minutes (at full payload)

Task Systems of XAG M2000 All-Weather Adaptability Farm Patrolling Drone

Spraying System

Chemical Tank Capacity: 150 L
Maximum Spraying Flow Rate: 40 L/min
Effective Spraying Width: 8–12 m

Seeding & Spreading System

Material Tank Capacity: 200 L
Maximum Payload: 100 kg
Maximum Spreading Width: 10–15 m

Power System

Battery Type: High-Capacity Lithium Polymer Battery
Rated Voltage: 60 V
Battery Capacity: 30 Ah / 1800 Wh
Charging Time: 30 minutes (with fast charger)

Perception & Control

Navigation System: Beidou/GPS/Galileo Multi-Satellite Positioning
Obstacle Avoidance Sensor: Dual Visual + Radar Fusion Perception
Control Device: XAG Professional Agricultural Remote Controller

Carrier Platform

:

UAV Dimensions:

1700×918×301 mm

Wingspan:

1700 mm

Empty Weight (Including Battery and Propellers, Excluding Payload):

3100 g

Maximum Wind Resistance:

Level 4 Wind

Operating Ambient Temperature:

0 ~ 40 ℃

Maximum Climb Speed:

≤5 m/s (Fixed-Wing); ≤3 m/s (Multi-Rotor)

Maximum Descent Speed:

3.5 m/s (Fixed-Wing Route Mode); 2 m/s (Multi-Rotor)

Economic Cruising Speed:

15 m/s

Safe Cruising Speed:

16 ~ 18 m/s

Maximum Horizontal Flight Speed:

22 m/s

Maximum Endurance:

Approximately 90 minutes

Maximum Range:

85 km

Maximum Takeoff Weight:

3500 g

Maximum Cruising Altitude:

400 m

Maximum Takeoff/Landing Altitude:

6000 m
