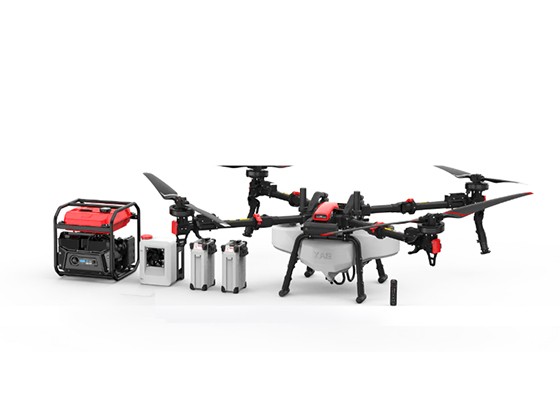

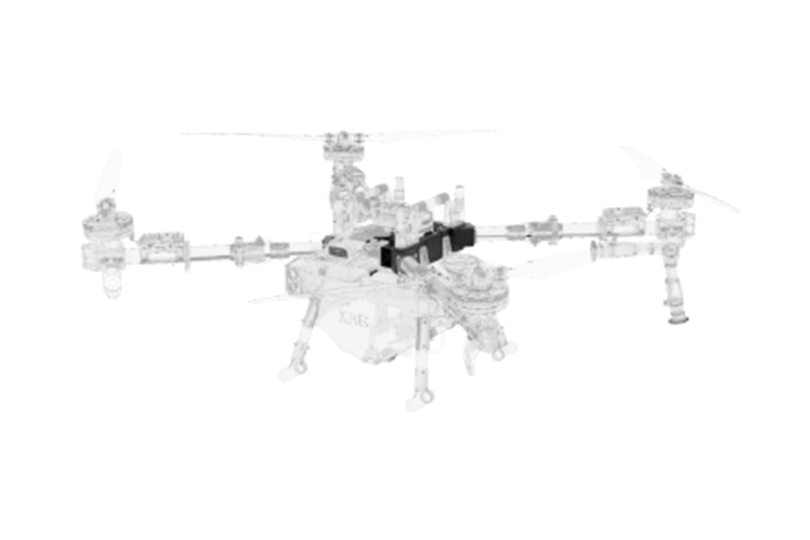

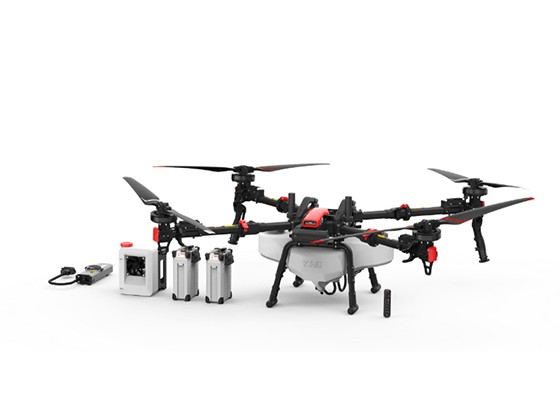

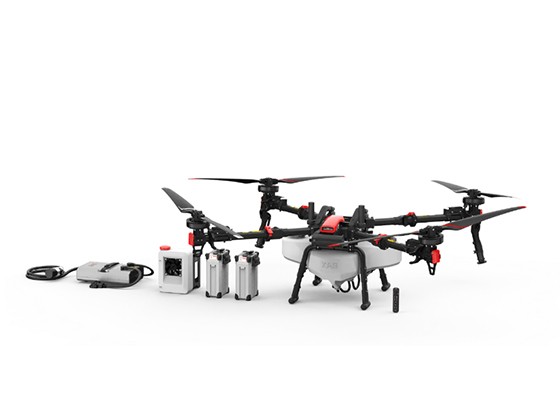

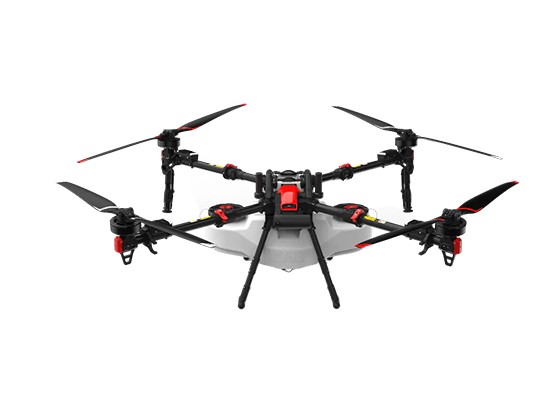

Name: XAG P60 cost-effective precision spraying Agricultural Drone
Brand: XAG Co., Ltd.
SKU: 39759339dffb6cd4690b0d2087e81f0e
Price: 4496 USD
Availability: InStock
Rating: 4.8 (20 reviews)

XAG Co., Ltd.

, China

The XAG P60 cost-effective precision spraying Agricultural Drone offers a flexible, cost-effective solution for spraying, spreading and field mapping. Designed for autonomous farm operation, it delivers unmatched precision and advanced intelligence.

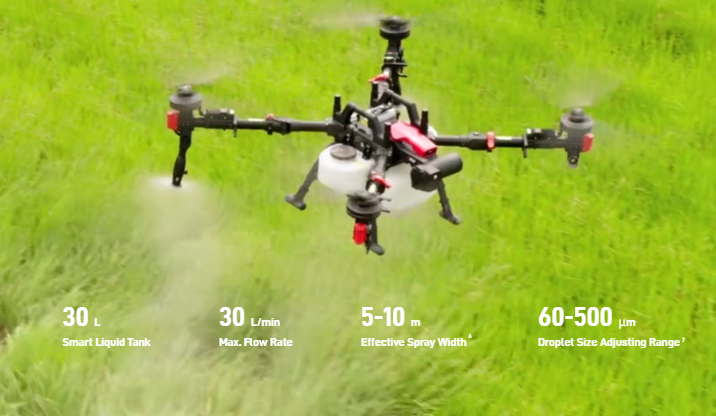

XAG RevoSpray 4

One Person, One Drone,That's All

Equipped with the XAG RevoSpray System, the P60 carries up to 30 kg of payload and utilizes intelligent rotary atomization spraying technology. It simplifies precision spraying, allowing one operator to efficiently handle crop protection tasks.

Speed 2.5 m/s

Spray width 3 m

Application volume up to

330 L/ha

Speed 7 m/s

Spray width 7 m

Application volume up to

51 L/ha⁸

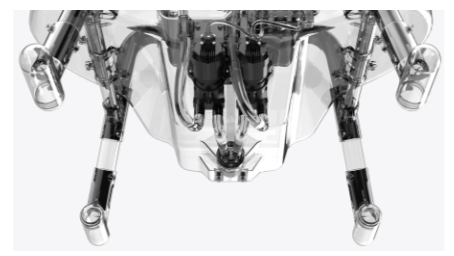

^{Flexible impeller pumps with a service life of 300 hours ⁹ eliminate theneed for frequent replacements, making it economical and durable.}

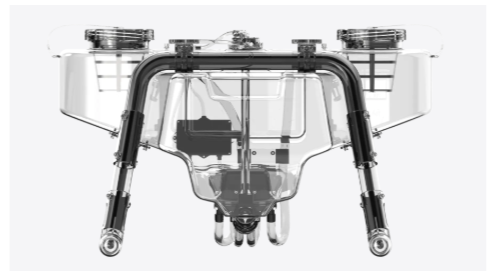

^{Smart liquid tank with water pressure sensor removes foam interference. achieving precise detection of remaining liquid level.}

^{Liquid filling ports designed with nested caps make liquid refilling easierand more convenient.}

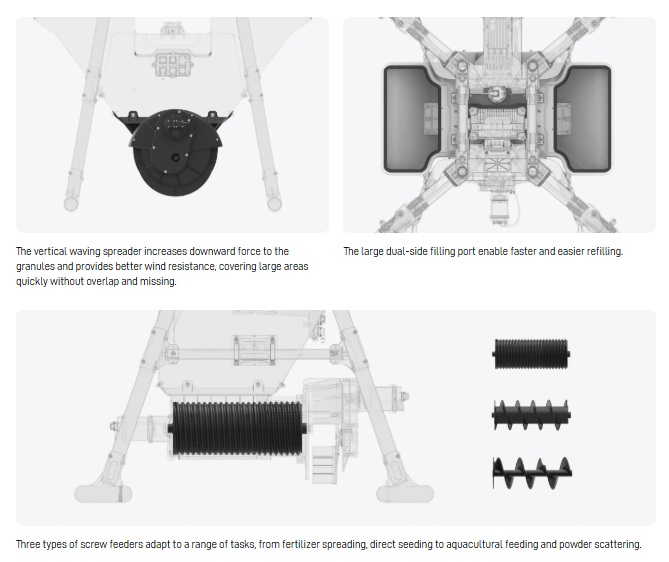

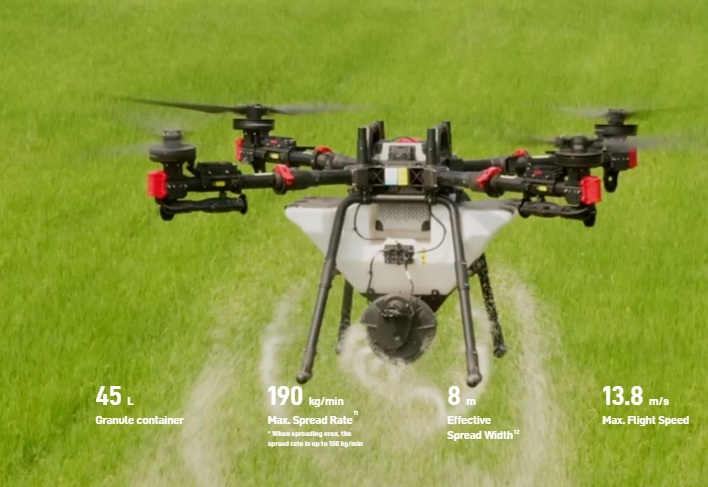

XAG RevoCast 4

Precision Makes Perfection

When paired with the XAG RevoCast System, the P60 boasts a 25 kg payload capacity and is able to spread 25 kilograms of fertilizer in just 8 seconds. ¹⁰It achieves precise, efficient spreading performance with reduced investment costs.

XAG RealTerra 3

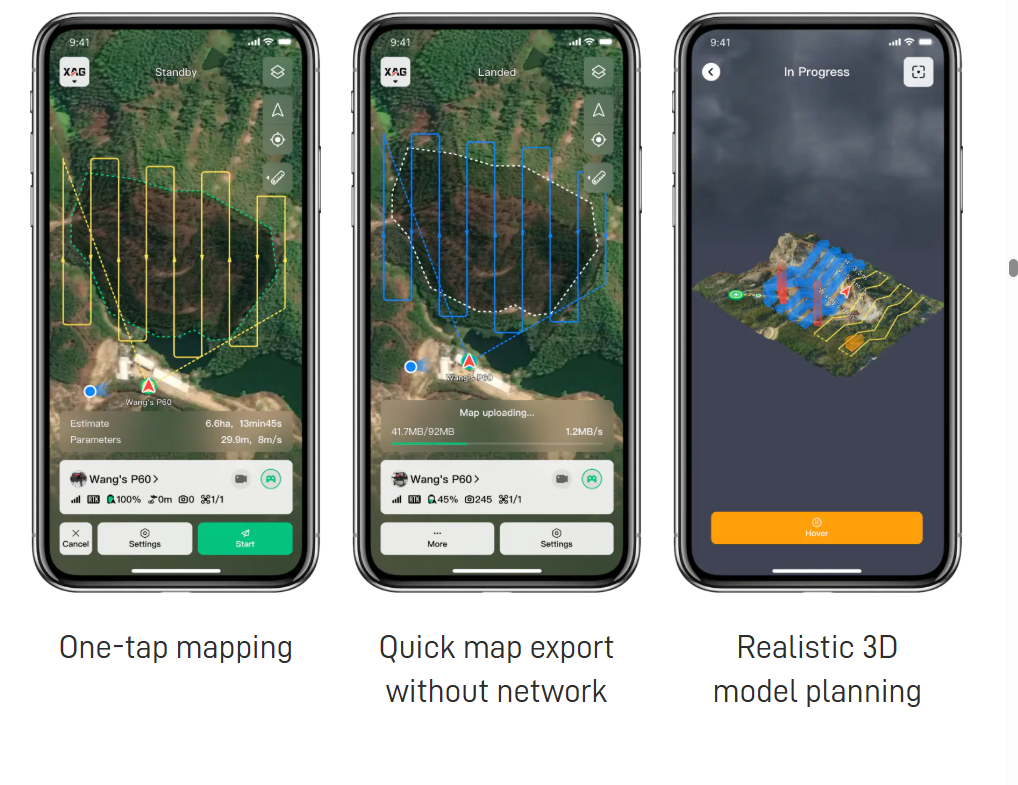

Tap & Map, Ready in a Snap

Mounted with the XAG RealTerra System, the P60 can capture high-definition images during autonomous flights. The images will be automatically stitched into field maps and exported right after landing. Up to 13.3 hectares ¹³ of farmland can be surveyed in a single flight.

XAG SuperX 5 Pro Intelligent Control System

The Super Brain Behind

The Computing Power

---------------------------------× 10¹⁴

Powerful processors and state-of-the-art control algorithm propel the P60 to achieve fully autonomous operation with superior performance.

Obstacle Avoidance

The high-performance 4D imaging radar detects obstacles with precision from 1.5 to 100 meters¹⁵ along the flight path. It ensures safe operation around the clock without dependence on ambient light.
Real-Time 3D Terrain Mapping

Advanced environment perception enables autonomous flight without preloaded maps, even over hilly terrain. The integrated AI learning feature further enhances efficiency during the flight.

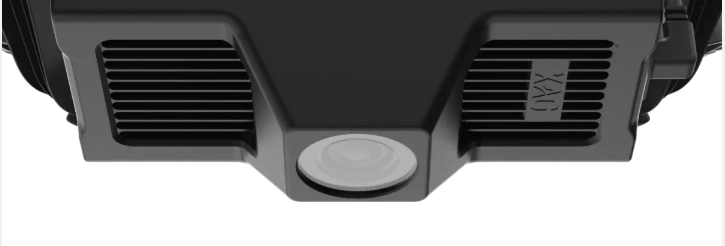

Safe Takeoff/Landing

The lower visual module accurately records terrain features at takeoff and landing points, with automatic hovering triggered by detected anomalies.

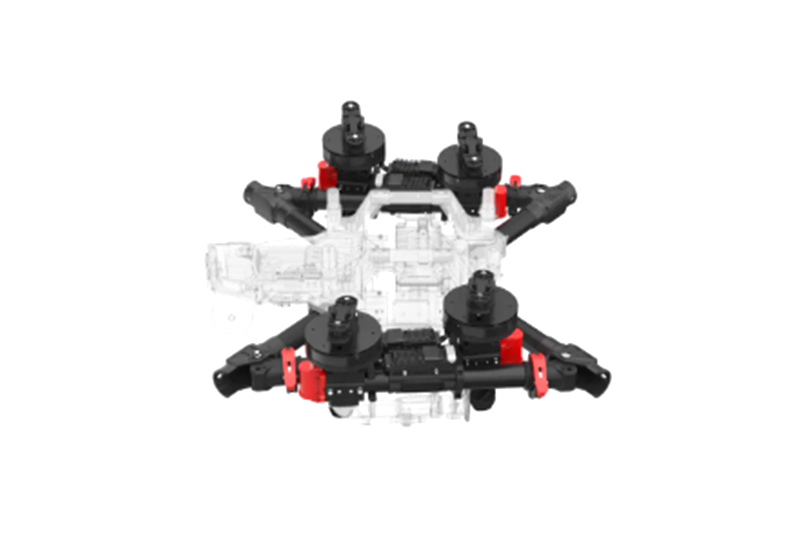

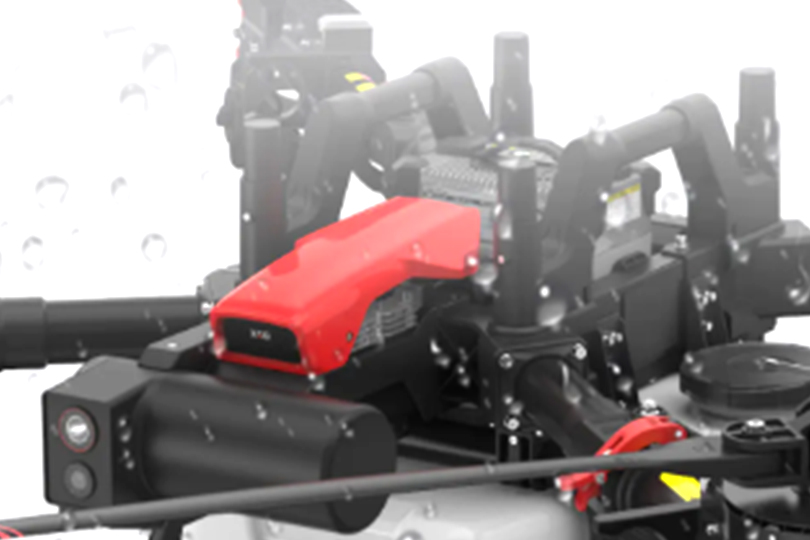

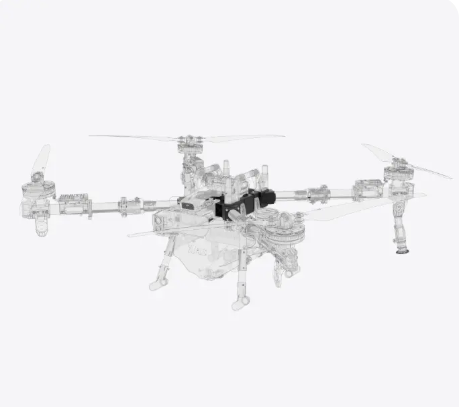

Built to Last

The perfect fusion of industrial aesthetics and material science combines practicality, durability and cost-effectiveness. Every detail is crafted for effortless use, making the XAG P60 easier to maintain, assemble and transport.

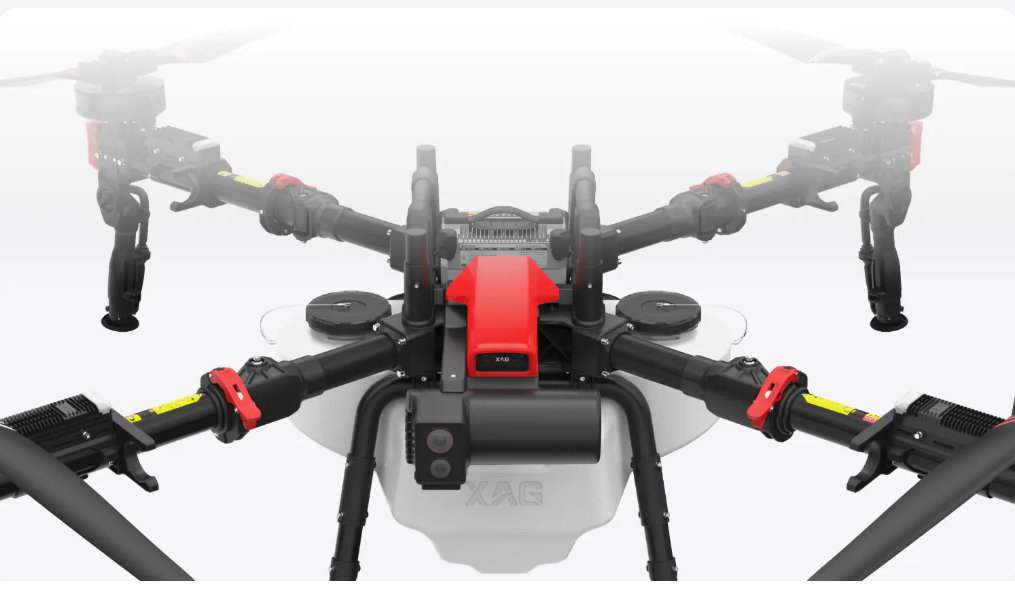

Design Highlights

The upgraded structure is stable and reliable

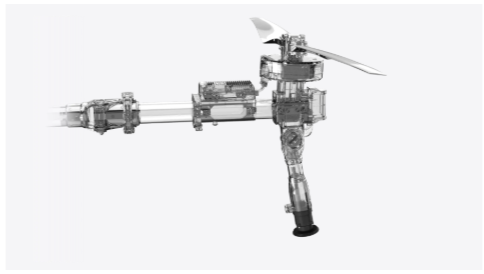

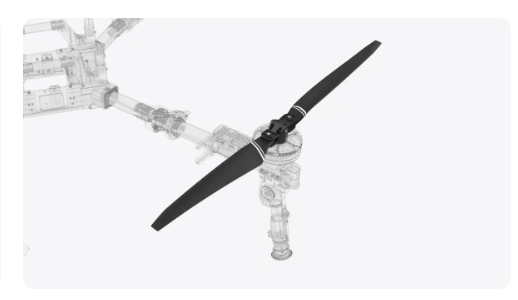

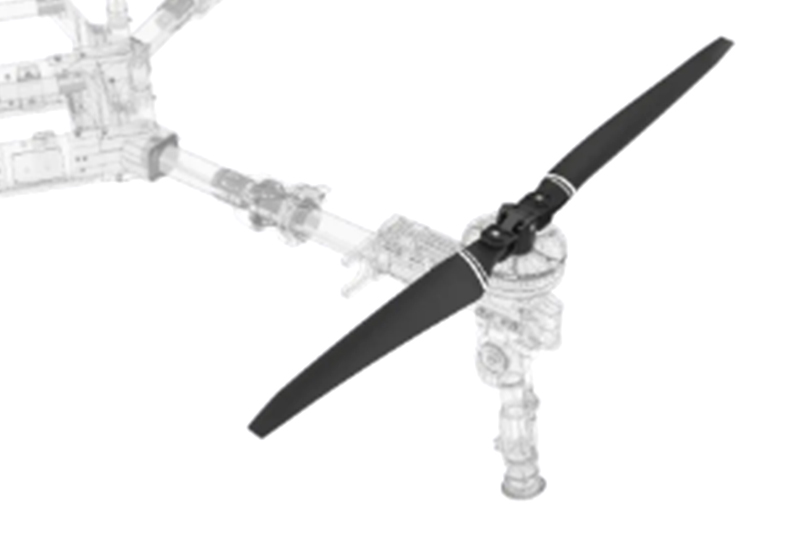

The 48.5-inch flapping propellers feature deformation and heat resistance, low noise, and reliable performance in harsh operational conditions.

Multiple Ways to Control

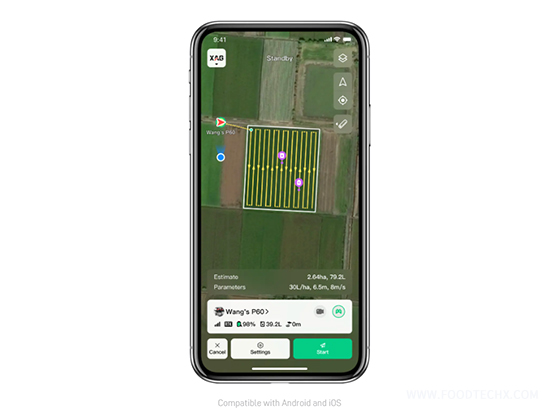

XAG One 6.0

Autonomous Operationat the Touch of a Finger

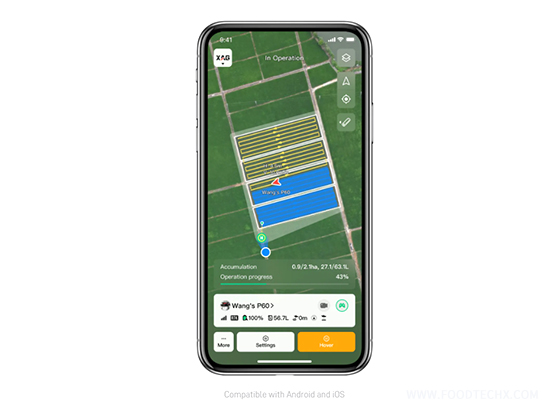

Intelligent Route Planning

The optimal route is generated based on the field shape and parameters. The drone will automatically return to home in the event of low liquid or power. You can pause and resume the flight path at any time.

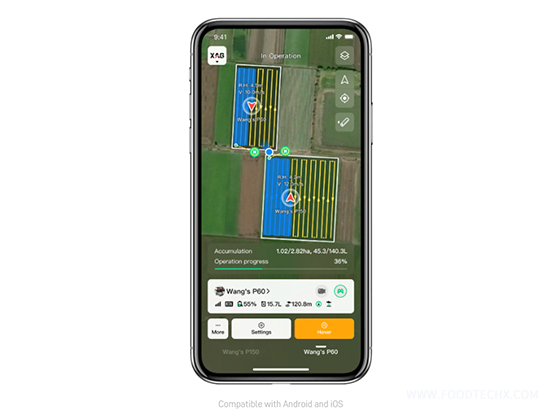

Swarm Operation

Autonomous operation allows simultaneous control of two drones, enabling concurrency and increased efficiency.

Multi-Field Operation

Support selecting up to 10 plots at once to generate routes for continuous operation. The drone automatically flies to the next plot after completing a task, saving time and efforts.

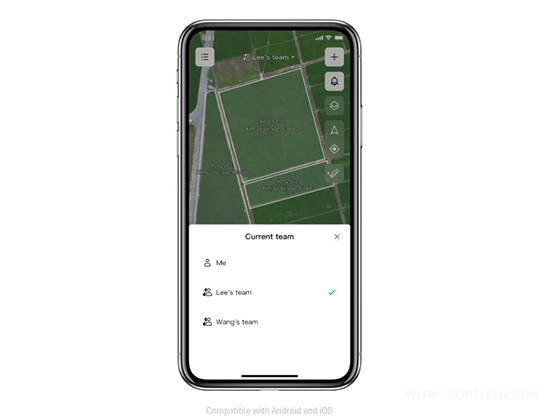

Teamwork

Multiple users can collaborate smoothly by sharing field maps and operational records. This data can be synchronized with the XAG One Management Platform for task coordination.

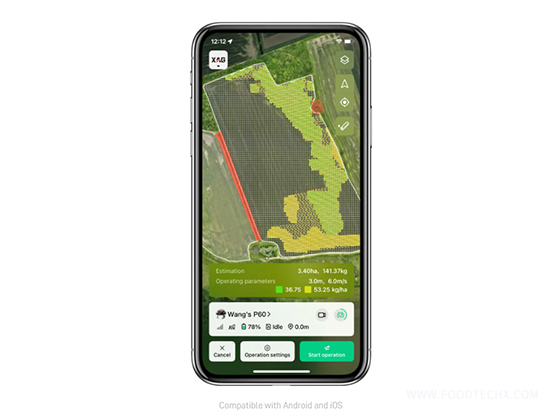

Variable-Rate Application

Using prescription maps, the drone adjusts application rates in-flight, ensuring specific zones receive the precise amount of pesticides, fertilizers or growth regulator as needed.

*Compatible with VRA maps from PIX4Dfields.

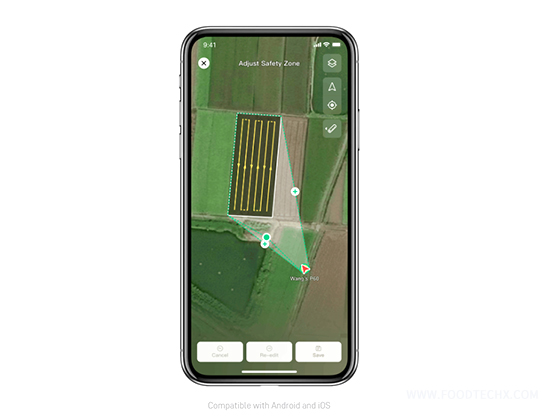

In and Out Routes

Safety Point Mode: Fixed flight paths ensure a safe operation, while adjustable safety points can be customized based on the environment. Safety Zone Mode: The adjustable pre-set safety zone allows the drone to avoid obstacles and optimize in-and-out routes for greater efficiency.

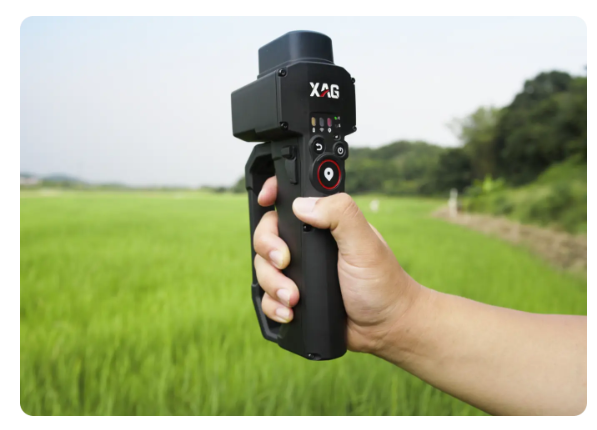

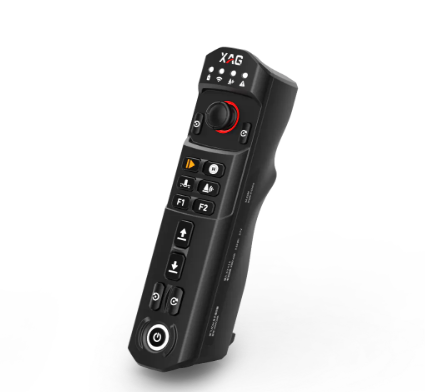

XAG ACS4 Control Stick

Lightweight and Portable, All in One-Hand

Bluetooth Quick Link

Turn on and start using instanly
Safety Lock

Prevent accidental touches for aworry-free experience
One-button Operation

Efficient, effortless,and user-friendly
12-hour Long Endurance¹⁶

One charge lasts all day

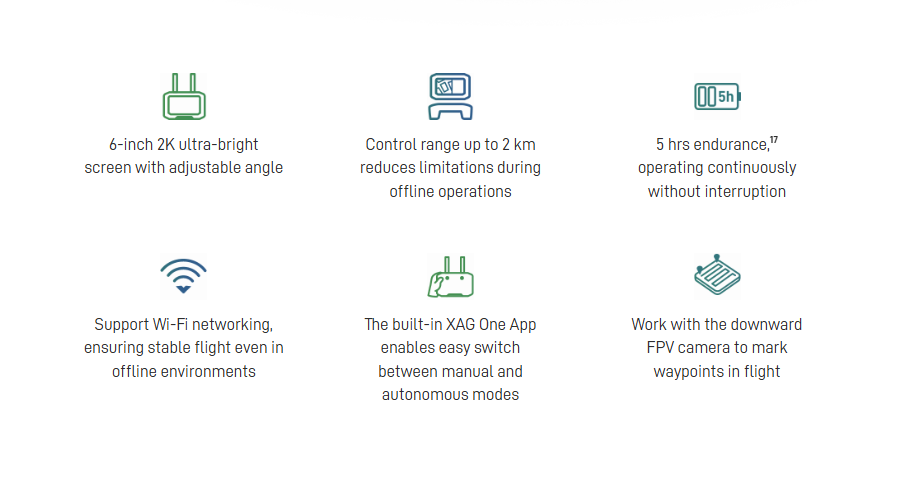

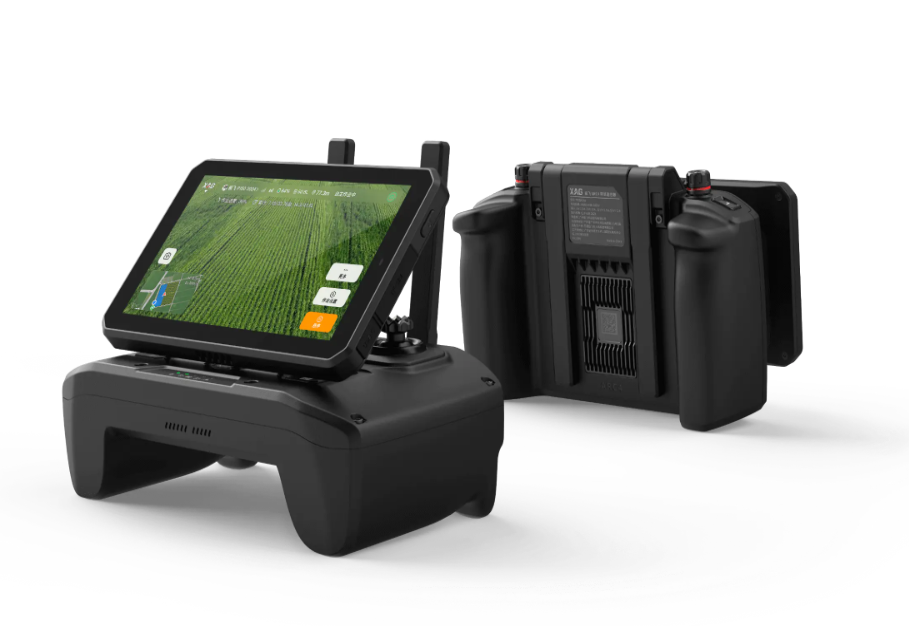

XAG SRC4 Smart Remote Controller

Your Flexible Assistance

No Network? There is a Solution for That

The XAG XRTK6 Pro Mobile Station serves as a portable RTK station and field mapper, enabling autonomous operation without a CORS network. When paired with the XAG DL1 Data Link, it expands communication range and supports real-time video transmission for safer flight.

XAG DL1 Data Link

Farther, Broader, Safer

2 Km Range Wi-Fi Repeating

Reduce obstructions for safer operation
5-Hour Endurance

Built-in 14700 mAh battery
Smartphone Direct Connection

One-tap fully autonomous operation
Swarm Operation Supported

Easily connect two drones with one controller
Compatible with Starlink

Maintain online for seamless CORS operation

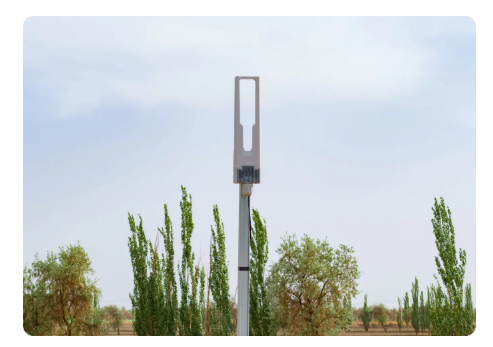

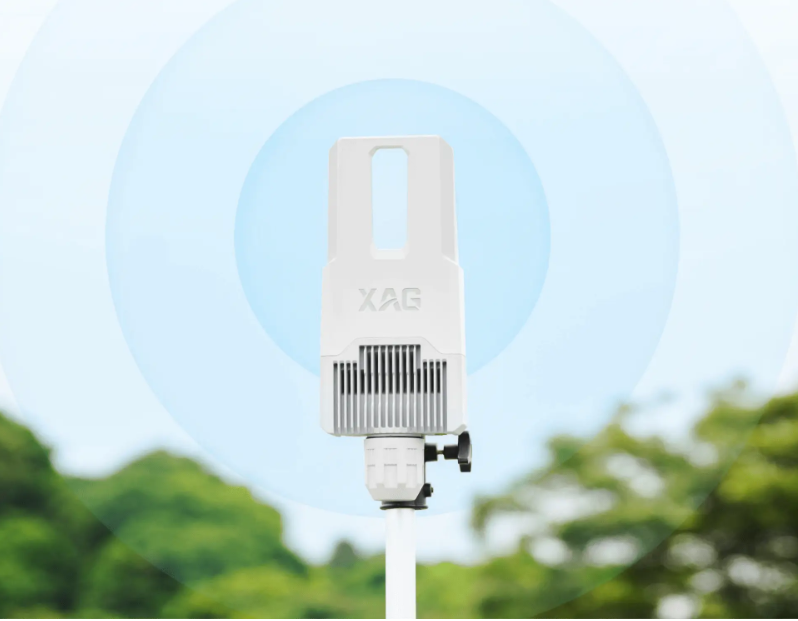

XAG XRTK6 Pro Mobile Station

Precision at Your Service

Portable RTK Station

Activate base station mode with a single button press for accurate drone positioning and navigation
Field Circling and Marking

One operator can mark the field while another controls the drone, streamlining workflow and saving time
1.5 Km Range Wi-Fi Repeating

Expand control range with precision navigation
Satellite Correction (PPP) Supported

Correct field boundaries and station positions offline

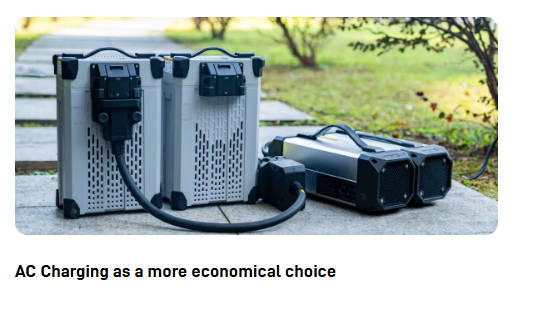

Power System

Quick to Charge, Ready on Demand

Charging efficiency is crucial in agricultural operations, where every minute counts. The XAG Smart Supercharge Battery, paired with a fuel-powered charger and the new battery cooling tower, enables an 8-minute ¹⁸rapid charge upon landing.

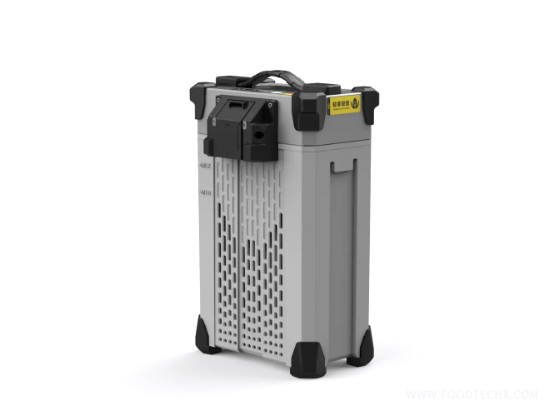

B13970S Smart Supercharge Battery

· 975 Wh capacity

· 1500 cycles ¹⁹

· High cell integration for stronger protection

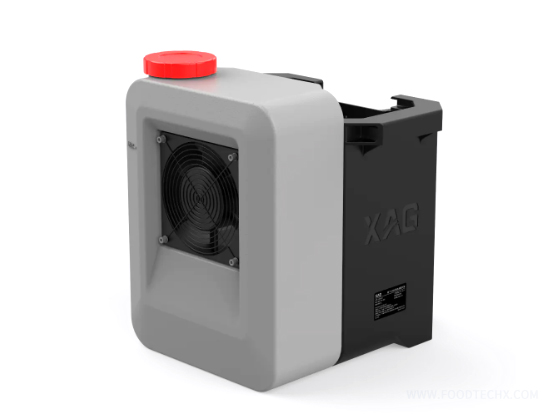

XAG Battery Cooling Tower

· Tiny water droplets evaporate rapidly, removing heat at an exceptional rate

· One tank of water provides 6-8 hours ²⁰ of operation

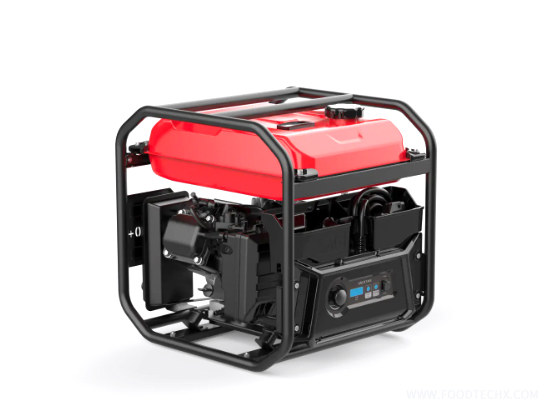

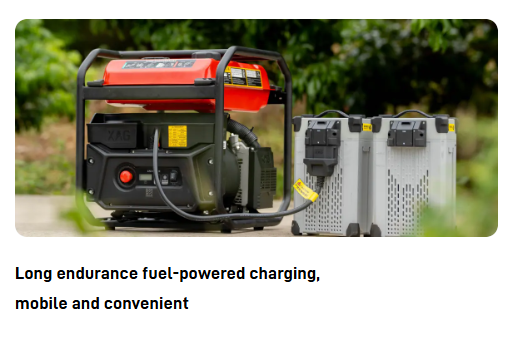

GC4000+ Auto SuperCharge Station

· Outstanding fuel efficiency with a compact, portable design

· Equipped with multiple charging protections

· Display working duration and the time for the next fuel change

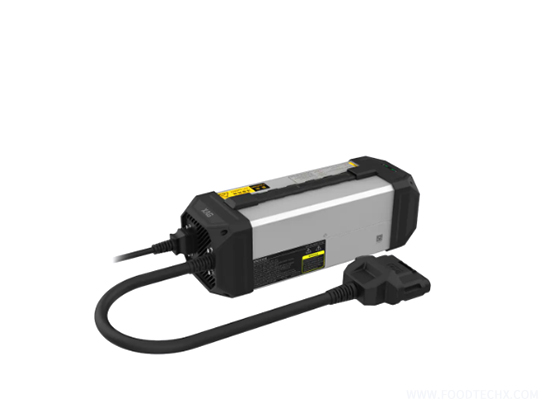

CM13600BH Charger

· 3.4 KW power output

· Compact and portable, weighing only 4.2 kg

· Fully charge one battery in 11 minutes ²¹

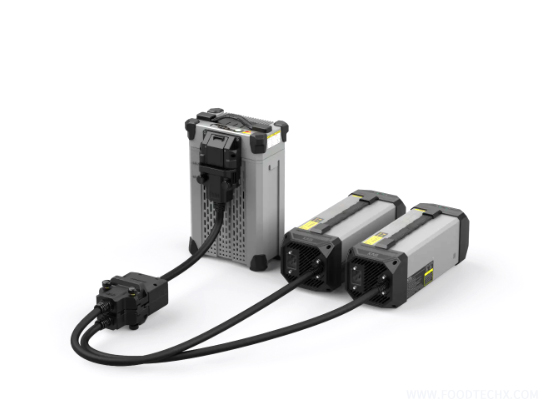

XAG Parallel Charging Kit

· 6.8 KW rated parallel charging power for soaring efficiency

· Charge one battery as fast as 6 minutes ²²

1. The spraying efficiency is measured at 36 L/Ha application volume, 10 m spacing, 13.8 m/s speed, operates in open fields. Actual performance varies with real-life conditions.

2. Maximum payload may differ depending on task systems and is influenced by operating conditions and parameters.

3. Maximum flight speed is subject to local laws and regulations. Performance may vary due to environmental factors, temperature, and user operation. Different conditions require specific parameters, significantly impacting efficiency.

4. 11. The max. spread rate of 190 kg/min is measured with a 50-kilogram bag of compound fertilizer, while 150 kg/min is measured with urea. Spread rates vary by fertilizer granule size, density, and surface smoothness.

5. Spreading efficiency is measured at 300 kg/Ha application volume, 6 m sapcing, and 13.8 m/s speed in open fields. Actual performance depends on real-life conditions.

6. 7. 8. 12. 20. Actual operation data is influenced by environment, temperature, and user operation. Follow official product instructions, as performance may vary under different conditions.

9. Laboratory-tested value; service life depends on usage, liquid type and working intensity.

10. Measured values are based on a 50 kg bag of compound fertilizer.

13. Map export time is measured in plain mode at 8.5 m/s flight speed under complex conditions and may vary with firmware updates and real-life scenarios.

14. Compared with the XAG SuperX 4 Intelligent Flight Control System.

15. Sensing distance and effective range depend on the material, position, shape, and other target object factors.

16. 17. Values are based on testing and may vary due to charging environment, usage habit, and maintenance.

18. 21. 22. Charging data is obtained through laboratory tests. Under general conditions, the CM13600BH Charger can charge a B13970S Battery from 30% to 95% in approximately 11 min, and from 15% to 95% in approximately 14 min. The GC4000+ Supercharge Station can charge a B13970S Battery from 30% to 95% in approximately 11 min, and from 15% to 95% in approximately 14 min. The GC6000 Supercharge Station can charge a B13970S Battery from 30% to 95% in approximately 9 min, and from 15% to 95% in approximately 11 min. The XAG Parallel Charging Kit can charge a B13970S Battery from 30% to 90% in approximately 6 min. Routine maintenance and use conditions may affect charging times.

19. If using the B13960S or B13970 battery is mounted, the P60 cannot operate at full capacity. To ensure safety, when either of the aforesaid batteries are used, the max. payload should not exceed 60 kg when paired with the RevoSpray System or the RevoCast System. Overloading may result in battery failure, flight accidents or safety issues, for which users are responsible.

Ⅰ ：

Aerial Platform

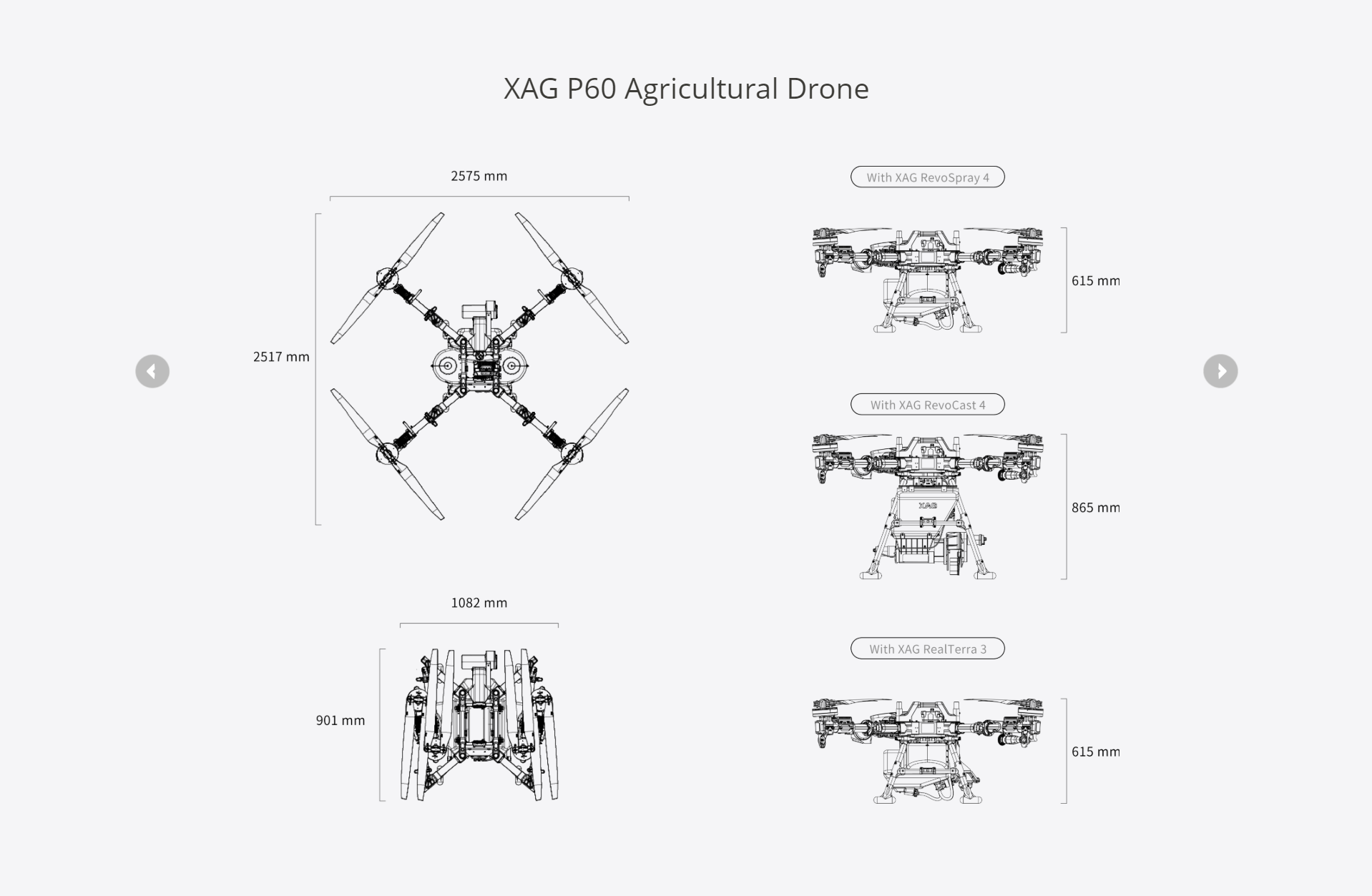

P60 Overall Dimensions

：

1. 1428x1487x615 mm (propellers folded, XAG RevoSpray 4 included, clamps as the highest point)

2. 1428x1487×865 mm (propellers folded, XAG RevoCast 4 included, clamps as the highest point)

3. 901×1082×615 mm (propellers & arms folded, XAG RevoSpray 4 included, clamps as the highest point)

4. 2517×2575×615 mm (propellers and arms unfolded, XAG RevoSpray 4 included)

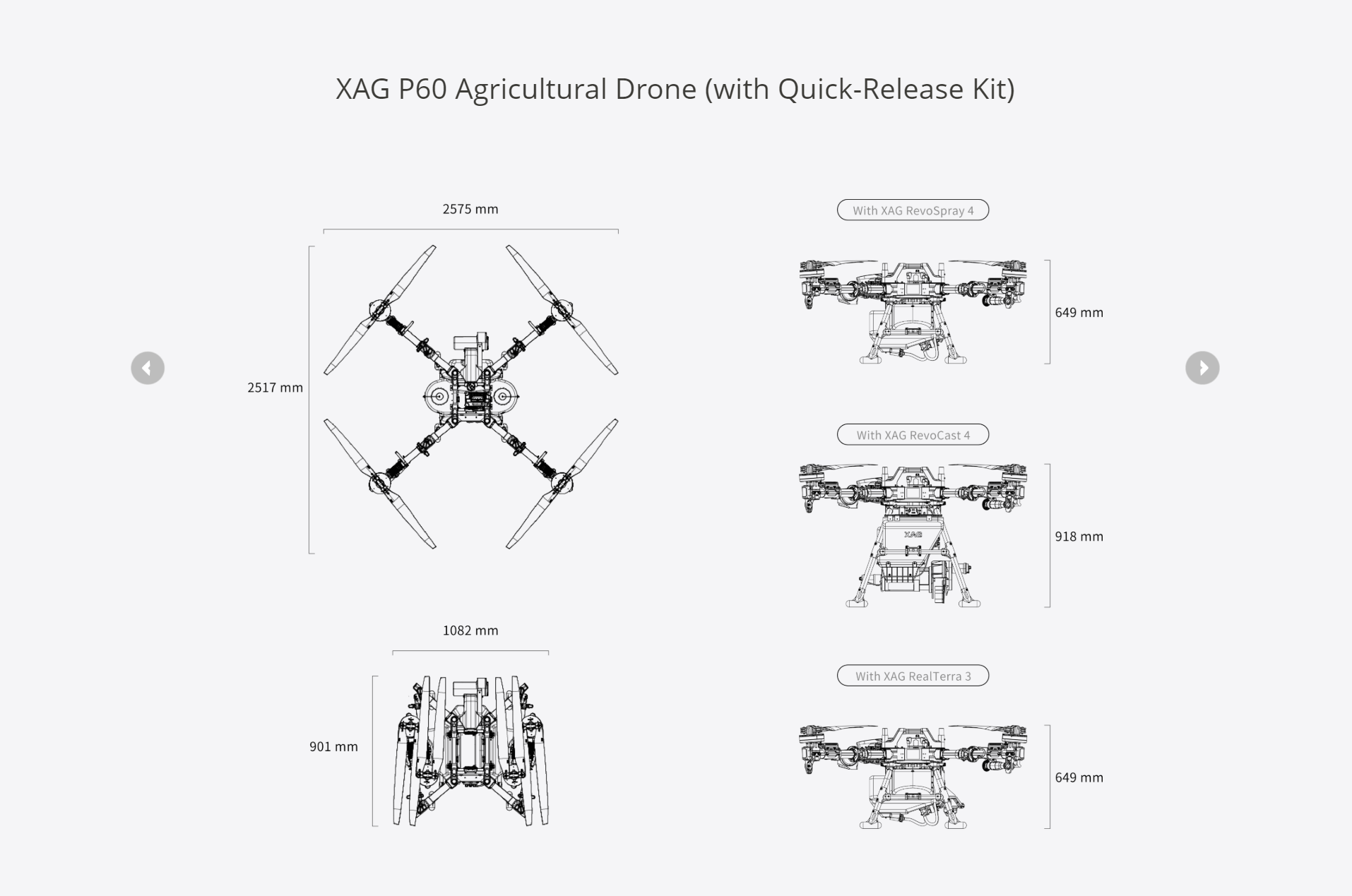

P60 Overall Dimensions (with Quick-Release Kit)

：

1. 1428×1487×649 mm (propellers folded, XAG RevoSpray 4 included, clamps as the highest point)

2. 1428×1487×918 mm (propellers folded, XAG RevoCast 4 included, clamps as the highest point)

3. 901×1082×649 mm (propellers & arms folded, XAG RevoSpray 4 included, clamps as the highest point)

4. 2517×2575×649 mm (propellers and arms unfolded, XAG RevoSpray 4 included)

P60 Aircraft Weight

：

1. 37.5 kg (with XAG P60 RevoSpray 4 and batteries)

2. 42 kg (with XAG P60 RevoCast 4 and batteries; spray rods excluded)

P60 Aircraft Weight (with Quick-Release Kit)

：

1. 38.34 kg (with XAG P60 RevoSpray 4 and batteries)

2. 42.84 kg (with XAG P60 RevoCast 4 and batteries; spray rods excluded)

Diagonal Motor Wheelbase ：

1850 mm

Protection Rating ：

IPX6K

Arm Material ：

Aluminium alloy

Rated Takeoff Weight

：

1. 67.5 kg (rated takeoff weight for spraying)

2. 67 kg (rated takeoff weight for spreading; spray rods excluded)

Ⅱ：

Flight Parameters

High Precision Positioning Duration with RTK Data ：

≤ 600 s

Maximum Flight Speed ：

13.8 m/s

Hovering Accuracy (Good GNSS Signal)

：

1. RTK enabled: ± 10 cm (horizontal), ± 10 cm (vertical)

2. RTK disabled: ± 0.6 m (horizontal), ± 0.3 m (vertical)

Maximum Flight Distance ：

2000 m

Recommended Operating Temperature ：

0 ~ 40 ℃

Maximum Flight Height ：

30 m

Ⅲ :

Propulsion System

Motor

:

Model :

A30

Rated Power (Single Motor) :

2200 W

Max. Thrust (Single Motor) :

30 kg

Electronic Speed Controller

:

Model :

XESC-F180

Max. Output Current (30s) :

180 A

Continuous Operating Current :

60 A

Foldable Propeller

:

Model :

Carbon fiber composites

Diameter :

1232 mm

Ⅳ :

XAG RevoSpray 4

Smart Liquid Tank

:

Rated Capacity :

30 L

Rated Payload :

30 kg

Rotary Atomizing Nozzle

:

Quantity :

2 Spray Disc Rotational Speed :

1500 ~ 16000 RPM

Atomized Droplet Size :

60 ~ 500 μm (Depending on the actual operating environment, spray flow, and other factors)

Spray Width :

5 ~ 8 m (Subject to flight speed, flight height, dosage, environment, etc.)

Flexible Impeller Pumps

:

Quantity :

2 Max. Operating Flow Rate :

30 L /min

Voltage :

50 V

Max. Flow Rate (Single Pump) :

0.5 ~15.0 L /min

V :

XAG RevoCast 4

Granule Container

:

Rated Capacity :

45 L

Rated Payload

25 kg

Smart Screw Feeder

:

Quantity :

1 Maximum Spread Rate :

190 kg/min (Tested with urea and affected by granular size and density)

Storage Temperature :

0 ~ 40 ℃

Maximum Rotational Speed :

10000 RPM

Operating Temperature :

0 ~ 40 ℃

Applicable Granule Size :

1 ~ 10 mm

Centrifugal Spreading Disc

:

Quantity :

1 Spread Width :

3-8 m (Subject to flight altitude, seed weight and shape, dosage, surroundings, etc.)

Maximum Rotational Speed :

5700 RPM

Ⅵ :XAG RealTerra 3

Module Size :859*595*534 mm

Photo Format :JPEG

Image Sensor :12 MP Pixels

Power :10 W

Camera :Focal Length 2.7 mm

Operating Ambient Temperature :10 ~ 45 ℃

Shutter Mode :Mechanical Shutter

Ⅶ :Sensing & Avoidance System

4D Imaging Radar:

Model :RD2488

Sensing Range :1.5 ~ 100 m

Voltage :24 V

Field of View (FOV) :Horizontal：±40°; Vertical：+90° ~ -45°

Power :10 W

Min. Relative Height of Obstacle Avoidance :≥1.5 m

Operating Frequency :24 GHz

Obstacle Avoidance Distance :2.5 m (distance between propeller tip and obstacle after the drone brakes and hovers stably)

Sensing Mode :Beamforming, 4D imaging

Max. Relative Speed of Obstacle Avoidance :≤13.8 m/s

Sensing Parameters :Obstacle's position, distance, direction, and relative speed

Terrain Radar:

Model :TR24S100_1

Operating Frequency :24 GHz

Voltage :5 V

Sensing Range (Height) :0.5 ~ 100 m (relative height above the crop canopy)

Power :1.3 W

Altitude Hold Range :1 ~ 30 m (relative height above the crop canopy)

Sensing Mode :Millimeter-wave

Maximum Gradient :45° (at flight speed of ≤ 2 m/s)

First-Preson-View Camera :

Resolution :1920 x 1080

Operating Voltage :24 V

Frame Rate :30 fps

Video Coding Format :H.264 / H.265

Image Sensor :1/2.8-inch CMOS-RGB image sensor, 2 MP effective pixels

Focal Length :

1.2.7 mm (Forward FPV)

2.2.7 mm (Downward FPV)

Ⅸ :Power System

* XAG CM13600BH Charger:

Model :M2CM1-3600BH

Input Voltage:

1.AC 100-120 V~50/60 Hz 15.0 A

2.AC 220-240 V~50/60 Hz 16.0 A

Output Voltage & Current:

1.56.6V 21A（100~120 Vac 50/60 Hz）

2 .56.6V 55A（220~240 Vac 50/60 Hz）

56.6V 55A（220~240 Vac 50/60 Hz） :-20 ~ 40 ℃

* Auto Supercharge Station:

Model :GC4000+

Net Weight :31.5 kg

Fuel Tank Capacity :15 L

Total Displacement :223 cc

Output Voltage :56.6 Vdc

Rated Current :75 ±3 A

Reated Charging Power :3400 W

Maximum Output Power :5100 W

* Battery Cooling Tower:

Model :M8BC5AH

Output Plugs Quantity :1

Max. Capacity :4L

Input Voltage :39~60V

Power :80W

Water Consumption :≤500 ml/h

Ⅹ :Communication & Control System

* XAG ACS4 Control Stick:

Model :M3ACS4A

Operating Frequency :2.400 ~ 2.4835 GHz

Effective Isotropic Radiated Power (EIRP) :2.400 ~ 2.4835 GHz:

1.＜33 dBm (FCC)

2.＜20 dBm (CE/SRRC/MIC)

Signal Range (No Interference, Obstruction) :400 m

Operating Ambient Temperature :-10 ~40 ℃

Charging Ambient Temperature :5 ~40 ℃

Compatible Product :XAG P150 Agricultural Drone, XAG P60 Agricultural Drone

* XAG SRC4 Smart Remote Controller:

Model :M3SRC4AH

Operating Frequency :2.400 ~ 2.4835 GHz ; 5.725 ~ 5.850 GHz

Effective Isotropic Radiated Power (EIRP) :2.400 GHz ~ 2.4835 GHz：

1.＜33 dBm (FCC)

2.＜20 dBm (CE/SRRC/MIC)

Effective Isotropic Radiated Power (EIRP) :5.725 GHz ~ 5.850 GHz：

1.＜33 dBm (FCC)

2.＜30 dBm (SRRC)

3.＜14 dBm (CE)

Signal Range (No Interference, Obstruction):

SRRC :2000 m

FCC:2000 m

CE/MIC :1000 m

Operating Ambient Temperature :-10 ~40 ℃

Charging Ambient Temperature :5 ~40 ℃

Compatible Product :XAG P150 Agricultural Drone, XAG P60 Agricultural Drone

*XAG DL1 Data Link:

Model :M3DL1A

Operating Frequency :SRRC :2.400 GHz ~ 2.476 GHz ; 5.725 GHz ~ 5.829 GHz

Effective Isotropic Radiated Power (EIRP) :2.400 GHz：

1.＜33 dBm(FCC)

2.＜20 dBm(SRRC/CE/MIC)

Effective Isotropic Radiated Power (EIRP) :5.800 GHz：

1.＜33 dBm(FCC)

2.＜30 dBm(SRRC)

3.＜14 dBm(CE)

Signal Range (No Interference, Obstruction):

SRRC：2 km

FCC：2 km

Battery Capacity :14700 mAh

Charing Voltage :5V 3A / 15V 2A

IP Rating :IP 65

*XAG XRTK6 Pro Mobile Station:

Model :M3RTK6B

Positioning Accuracy (Good RTK Signal) :

Horizontal：＜5 cm+1 ppm (RMS)

Vertical: ＜7.5 cm+1 ppm (RMS)

Frequency Band for RTK :

BDS:B1I、 B2I、 B3I

GPS: L1C/A、 L2P (Y)/L2C、 L5

GLONASS:L1、 L2

Galileo:E1、 E5a、 E5b

Built-in Battery Capacity :4800mAh

* Smart SuperCharge Battery:

ModelM1PPA13970BH

Rated Output48.75 V/140 A

Battery TypeLithium-ion polymer battery

Maximum Charging Current100 A

Rated Capacity20000 mAh

Charging Ambient Temperature10 ~ 45 ℃

XAG P60 Agricultural Drone
XAG P60 Agricultural Drone (with Quick-Release Kit)
Design Highlights---The upgraded structure is stable and reliable
Design Highlights--- The 48.5-inch flapping propellers feature deformation and heat resistance, low noise, and reliable performance in harsh operational conditions.
Design Highlights---The foldable arms can reduce the drone's volume by 20%, making transport and storage more convenient.
Design Highlights---With IPX6K protection, the entire body can be washed directly with water to remove pesticide residue.

Leave Message

XAG Co., Ltd.

One Person, One Drone,That's All

Precision Makes Perfection

Tap & Map, Ready in a Snap

The Super Brain Behind

Built to Last

Design Highlights

Autonomous Operationat the Touch of a Finger

Quick to Charge, Ready on Demand

B13970S Smart Supercharge Battery

· 975 Wh capacity

XAG Battery Cooling Tower

· Tiny water droplets evaporate rapidly, removing heat at an exceptional rate

· One tank of water provides 6-8 hours 20 of operation

· 3.4 KW power output

· Fully charge one battery in 11 minutes 21

XAG Parallel Charging Kit

· 6.8 KW rated parallel charging power for soaring efficiency

· Charge one battery as fast as 6 minutes 22

· One tank of water provides 6-8 hours ²⁰ of operation

· Fully charge one battery in 11 minutes ²¹

· Charge one battery as fast as 6 minutes ²²
