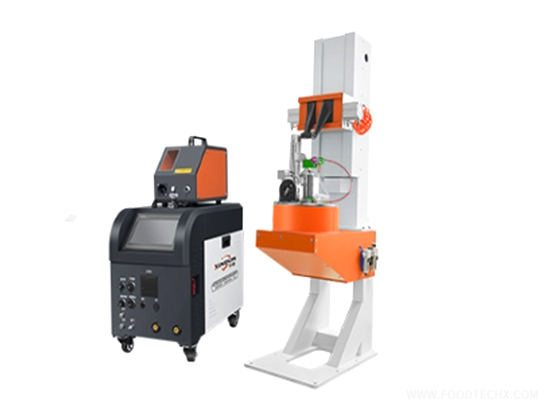

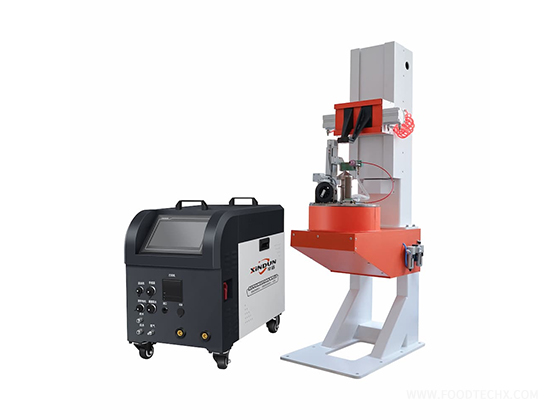

XD-53S High-Pressure Oil Pipe Welding Machine
Product Introduction
The high-pressure oil pipe welding system is a dedicated system designed for TIG welding of pipes and pipe flanges, suitable for automated welding of general special-shaped pipes and pipe flange joints. This machine can be used with the Y400 program-controlled welding power supply, and is widely applied in automated pipe-to-pipe and pipe-to-flange welding in industries such as locomotives, construction machinery, chemical engineering and petroleum.
- Adopts Siemens PLC control system to ensure fast, accurate and reliable operation of welding process parameters with low maintenance cost. Built-in multiple anti-interference technologies for extremely high equipment stability
- Advanced inverter technology and high-precision digital control system
- Optimized zoning technology, each program can be divided into up to 6 welding zones
- Current ramp-up/ramp-down process control technology for excellent welding formation and high repeatability
- Full-color Chinese LCD display with real-time welding process parameter display and menu-style management interface
- Built-in integrated wire feeder with tangle-free wire feeding, compatible with 1KG wire spools for easy operation
- Equipped with network port and USB interface for computer connection and network communication
- Large-capacity recipe storage: >200 sets, with air flow detection, water temperature detection and other functions
Product Advantages
- The drive motor adopts imported DC motor with stepless speed regulation within the full speed range, and all water and electric pipes are designed to be tangle-free
- Pneumatic clamping method firmly fixes the workpiece on the workbench without manual intervention
- Adopts standard structure of water-cooled TIG welding torch for easy replacement or adjustment of tungsten electrodes
- Supports autogenous welding, filler wire welding or autogenous welding followed by filler wire welding according to process requirements, with convenient, fast and labor-saving operation
- Equipped with hardware monitoring functions, including tungsten electrode short circuit detection and fault alarm detection for comprehensive product protection
- Ideal for automated welding of pipe flange joints in construction machinery and locomotive industries
- Enhanced environmental adaptability: The upgraded high-pressure oil pipe welder adds dustproof function, which effectively blocks metal particles and dust generated during welding from invading core components, significantly improving equipment operation stability and service life in industrial environments
- Leap in process precision: Added super pulse function, which significantly improves weld penetration and weld seam aesthetics
- Intelligent clamping upgrade: The upgraded fixture has self-centering function, and both sides can clamp or release the workpiece simultaneously for quick positioning
- Innovative structural design: Optimized product structure reduces the overall weight while maintaining structural strength, making the design more simplified
- Advanced drive system: The fixture is upgraded from manual to electric, realizing automatic adjustment of workpieces for more convenient, fast and labor-saving operation
