Home/Packaging Material Equipment/Bottle blowing machine/XHZ1250 Slitting Cutting Line/
Anhui Xuanhong CNC Technology Co., Ltd.
, China

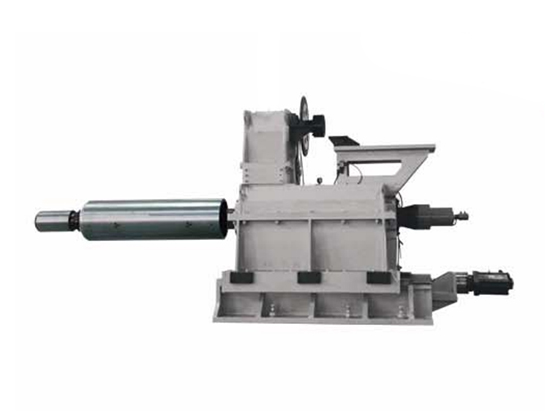

Box‐Type Winding Device: It can reach 1000 laps/Min, Sino First Created completed round process by three shells, it is carbide spiral gear in gear box, mandrel is made of 38 CrMoAl, it has lower noise, strong capacity, strong overload, well resistance against fatigue etc.
It equips the most advanced patented airbag tension device, it makes the tension on multi‐strip in even, strips synchronizes, the maximum tension reaches to 50,000 cattle.Cutting Accurate, it is no need to
take off when the round blade needs to be sharpened, it just needs to add the sharpener on round cutter for sharpening.
Mode
XHZ1250
Cutting Width
1250MM
Cutting Thickness
0.15~1.2mm
Max. Coil Diameter
Φ2000mm
Max. Weight Of Coil
10T/15T/20T
Standard Diameter Of Mandrel
Φ410mm~Φ508mm
Max Cutting Line Speed
150/200/250M/Min
Burrs After Cutting
(0.8mm Thickness) ≤3%, Less than 0.02mm when Thickness is ≤0.7mm (JIS Standard Coil)
