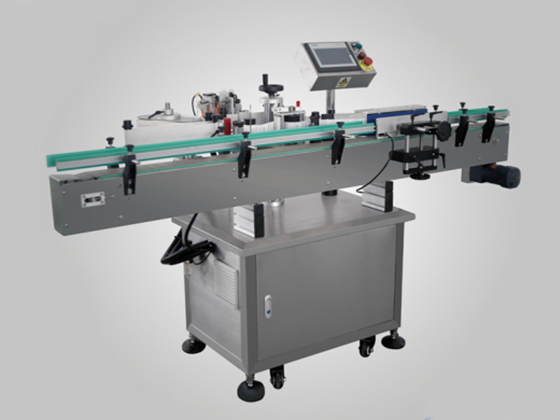

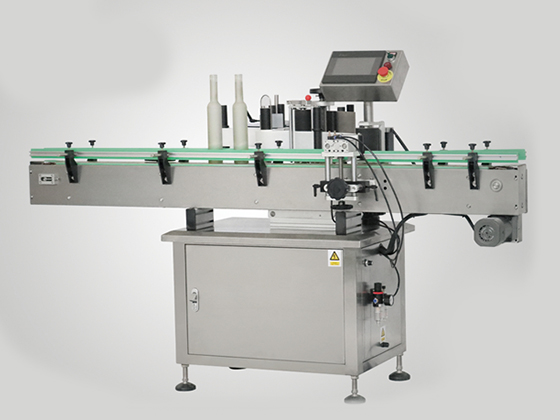

The XL-A vertical round bottle self-adhesive labeling machine is designed to achieve the goal of rationalized production. 。 The labeling process is fully automated, simple to operate, fast in production speed, and ensures uniform, aesthetically pleasing and neat labeling positions. It is suitable for labeling round containers in the pharmaceutical, chemical, food and other industries, and can perform full-circle and semi-circle labeling. An optional thermal transfer printer can be equipped to print production batch numbers, production dates and other information simultaneously during labeling. It integrates labeling and printing, reduces packaging procedures and improves production efficiency.
Voltage specification:
220V 50/60HZ
Power consumption:
1000W
Labeling speed
30~120b/m
Labeling accuracy
±1mm
Bottle diameter
25~120mm
Object range
Height: 40mm - 250mm (customizable according to customer requirements)
Label specification
H10mm~150mm L15~300mm
Paper roll size
Inner diameter of paper roll: 76mm (medium) Outer diameter of paper roll: 300mm (medium)
