XinXian Printing Technologies(Shanghai)Co.,Ltd.

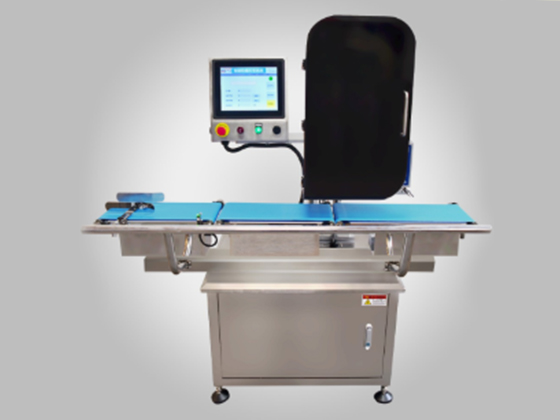

, ChinaXL-WO1P Intelligent Weighing, Printing and Labeling Machine
Installation Features
Voltage specification:
Single-phase 220VAC 50Hz
Power consumption:
1000W
Label application method:
Direct peel-off and scrape 2
Label application frequency:
0-70 per minute (depending on label size and print length)
Label application accuracy:
±1mm at constant speed
Label specifications:
Height 10mm - 100mm, Length 10mm - 300mm (special specifications available upon request)
Inner diameter of label roll:
76mm
Outer diameter of label roll:
300mm (maximum)
Label gap:
3mm
Conveyor line length:
1500mm
Conveyor line width:
220mm (special specifications available upon request)
Product size:
Length: 300mm, Width: 220mm, Height: 0-250mm adjustable (special specifications available upon request)
Equipment dimensions:
Length: 1500mm, Width: 600mm, Height: 1600mm
Printing area:
A: 32mm x 75mm, B: 53mm x 75mm, C: 107mm x 75mm 2
User interface:
12-inch color touch screen industrial control all-in-one machine
Weighing machine parameters:
Model: XW-A220
Weighing sensor:
METTLER TOLEDO
Weighing range:
5-1000g 2
Weighing accuracy on the scale:
±0.5-1 9
Minimum scale:
0.1 9
