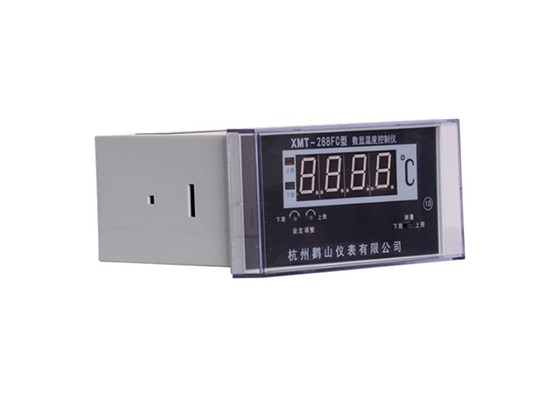

Home/Accessories/Consumables/Tool/Measurement/XMT-288FC ---Digital Temperature Controller/
Hangzhou Guanshan Instrument Co., Ltd
Hangzhou, ChinaInput Signal:
Pt100
Measurement Range:
-20～80℃, 0～100℃, 0～120℃, 0～150℃
Accuracy Class:
1.0

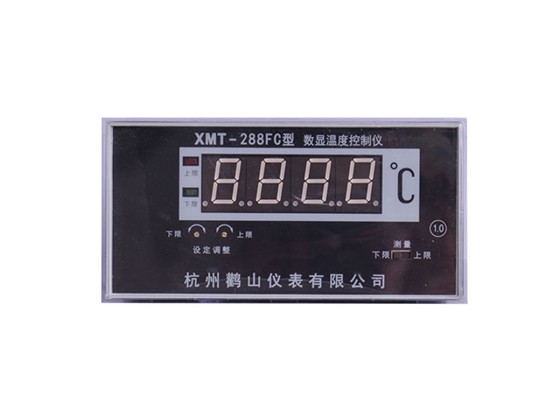

Display Mode:
0.8" 7-segment LED display
Resolution:
0.1℃
Set Value Range:
Adjustable within the entire measurement range

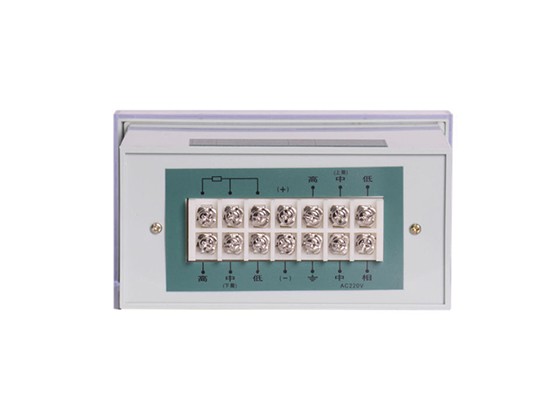

Wiring Mode:
Three-wire system
Contact Output:
One set of normally open and normally closed contacts for upper and lower limit alarms respectively
Contact Capacity:
220VAC 3A
Standard Signal Output:
XMT-288FC provides 0～5VDC, 1～5VDC, or 4～20mADC output, corresponding to the measurement range. For 4～20mADC output, the allowable load resistance is 250～350Ω.
Power Supply:
220VAC, 50Hz
Power Consumption:
6W
Operating Environment:
Temperature 0～50℃; Relative Humidity
Overall Dimensions:
160mm (Width) × 80mm (Height) × 125mm (Depth)
Accuracy Class:1.0%
Measuring Temperature: 0~100℃
Input Signal: Pt100 (4~20mA input customizable)
Output Signal:4~20mA (0~5V, 1~5V, or RS485 computer interface customizable)
Product Description
Technical Parameter
Configuration List
