Hyperpurex Instrument technology (Shanghai)
ShangHai, ChinaName
Standard
Model
XU-20/40/60
Production rate[1]
20 series: 20 L/hour, 40 series: 40 L/hour, 60 series: 60 L/hour
Dispensing rate[2]
Up to 2 liters/minute
Resistivity(25℃)[4]
18.2 MΩ.cm
Conductivity(25℃)
0.055 μs/cm
TOC
5 ppb[6]
Particles[8]
<1 /ml (>0.2μm)
Bacteria[9]
<1 cfu/1000ml
endotoxin[10]
N/A
RNases[10]
N/A
DNases[10]
N/A
Protease[10]
N/A
Resistivity(25℃)[4]
>17.5 MΩ.cm
Conductivity(25℃)
<0.057 μs/cm
Particles[8]
<1 /ml (>0.2μm)
Bacteria[9]
<1 cfu/1000ml
Ion rejection rate
98%-99%(with new RO module)
Organic rejection rate
>99%(MW>300 Dalton)
Particles and bacteria rejection rate
>99%
Water source type
Tap water
Pressure
1-6 bar
Temperature
5-40 ℃
Conductivity
<2000 μs/cm
Total hardness(in CaCO3)
<300 ppm
TOC
<2000 ppb
Free chlorine
<3 ppm
PH
4-10
Dissolved CO2
<30 ppm
Power supply
100-240V，50/60Hz
Total Power
240W
Dimension (L×W×H)
Main host: 370×623×600mm Dispenser arm: 181×626×795mm Tank: 392×518×772mm
weight
Main host: about 30KG Dispenser arm: about 4KG Tank: about 16KG

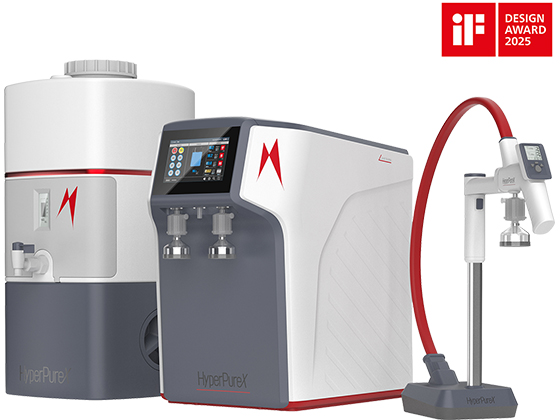

Standard configuration
Main host 1 set All cartridges 1 set HiDis dispenser arm 1set 60-liter water tank 1 set Foot switch 1 set External leak sensor 1set

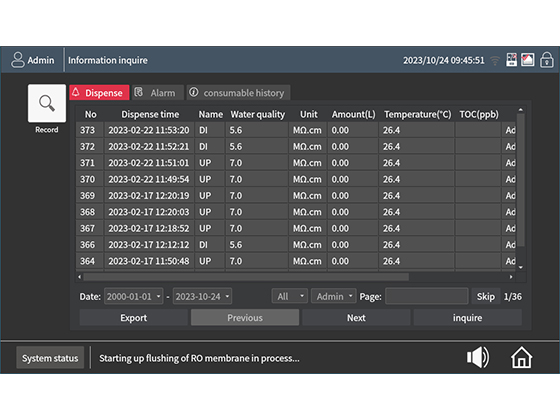

- Traceable comprehensive data management

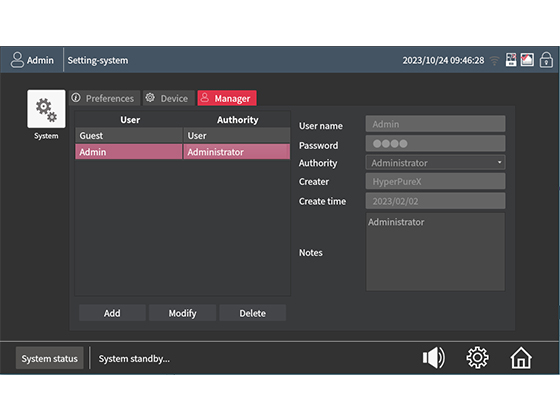

- Sharing mode of multi-user management

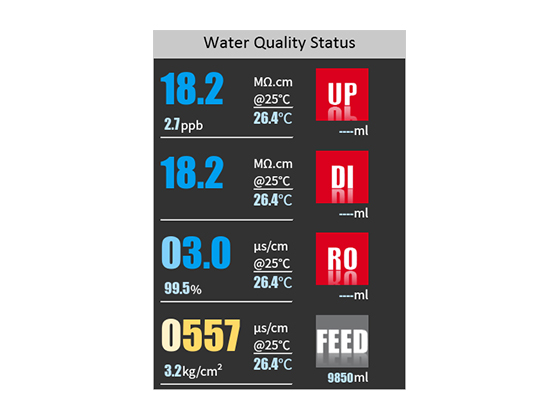

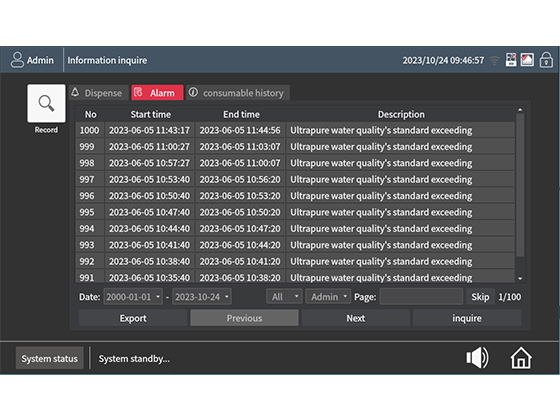

- Comprehensive water quality monitoring and alarm

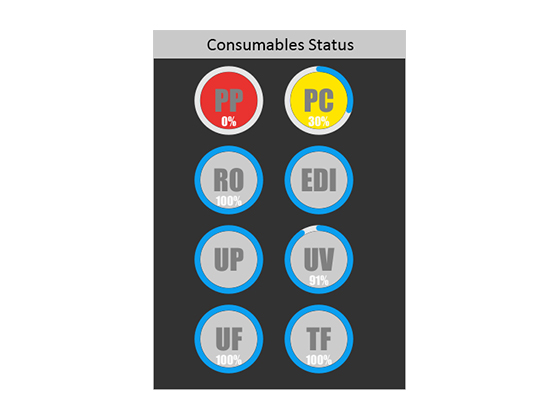

- Perfect consumables management

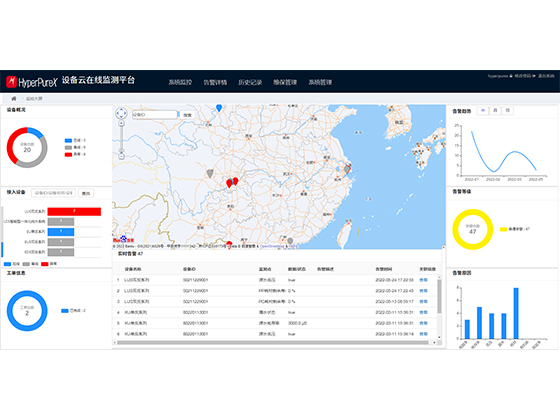

- Innovative Internet of Things (IOT) and cloud platform technology
- Flexible and diverse water dispensing mode[1]

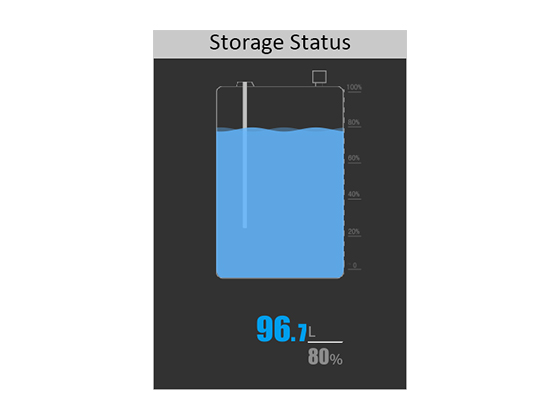

- Intuitive tank storage status

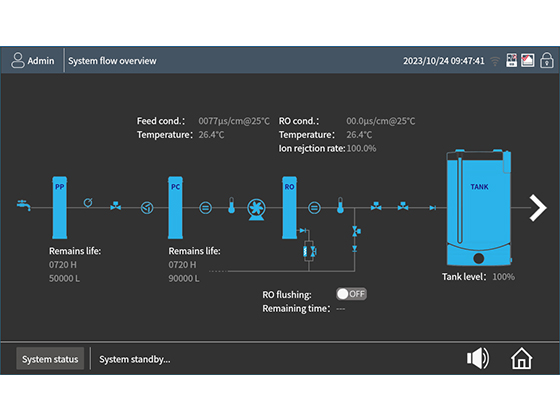

- Powerful system overview diagram
- Full security protection

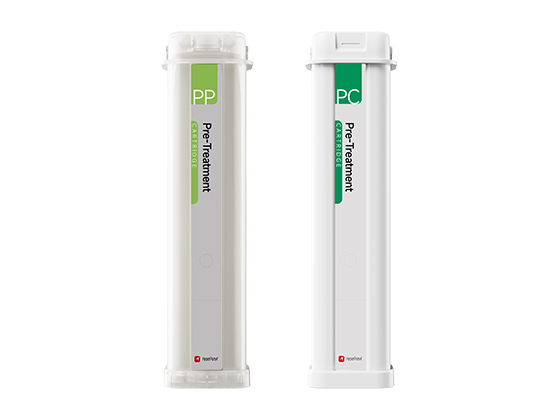

- Powerful 12-inch pretreated cartridge

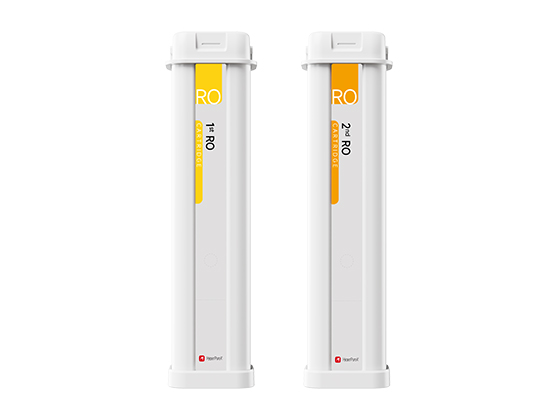

- Rigorous double RO system[1]

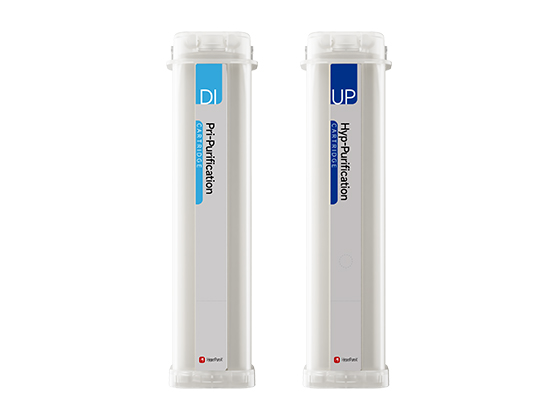

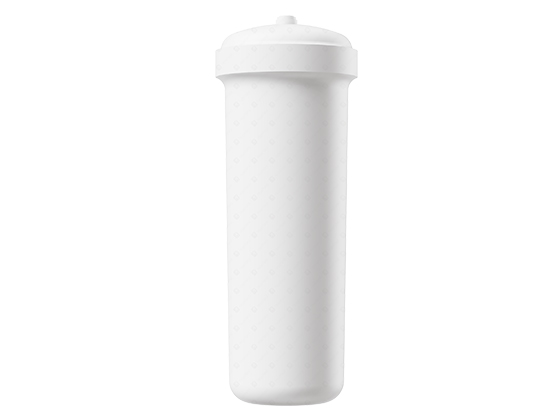

- High performance purification cartridge

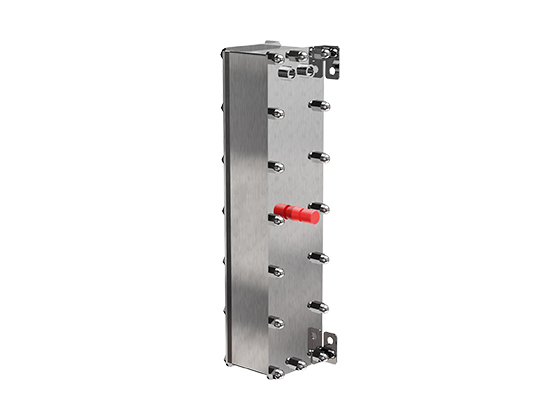

- Professional mini EDI module[1]

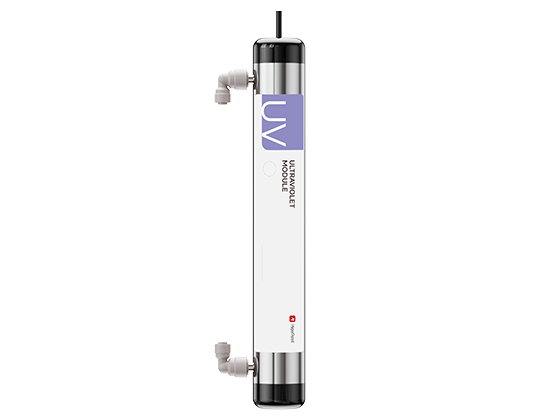

- Double wavelength UV module[1]

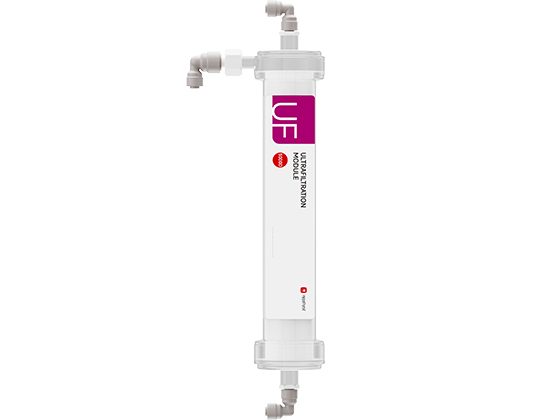

- Ultrafiltration module[1]
- MF terminal microfilter[[1]

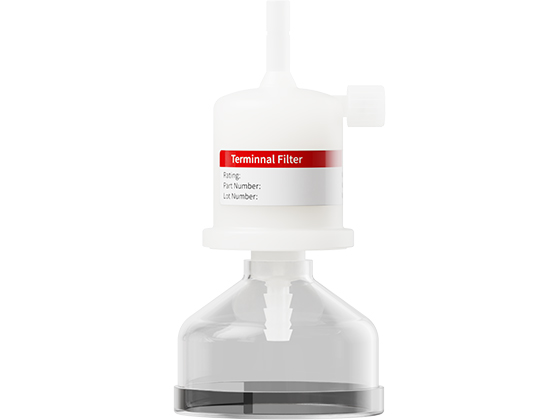

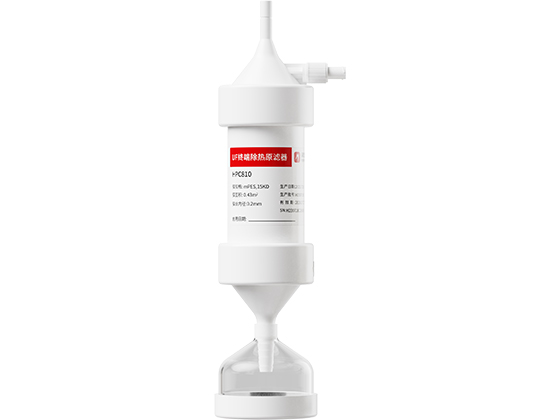

- UF terminal ultrafilter[1]

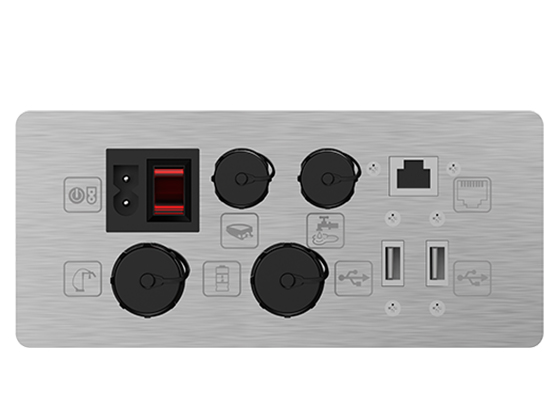

- Multiple communication interfaces[1]
- Built-in 1.8-liter pressure water tank[1]

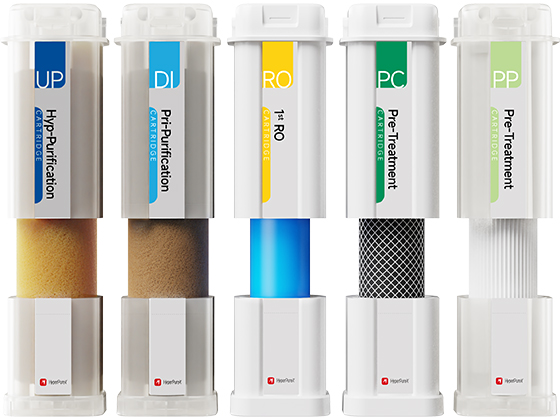

- Innovative design of cartridge structure

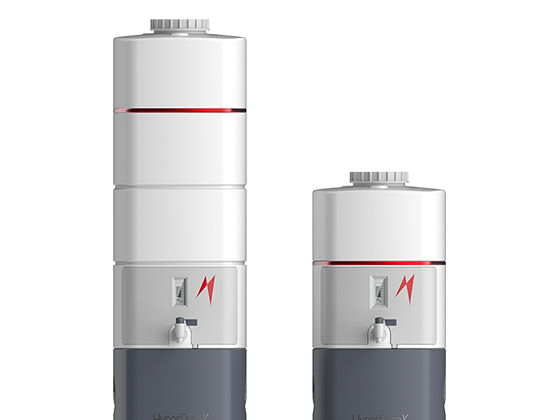

- Professional PE pure water tank
- All injection molded housing

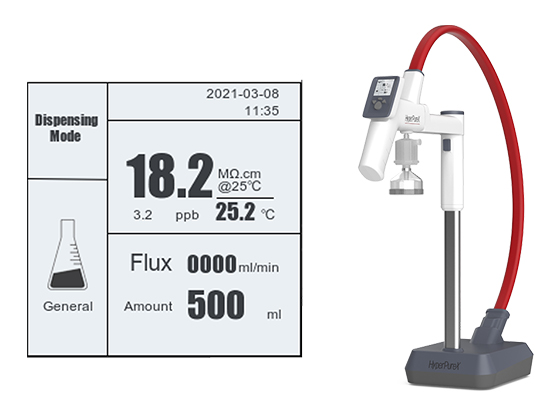

- Powerful HiDis water dispenser arm(Optional)
