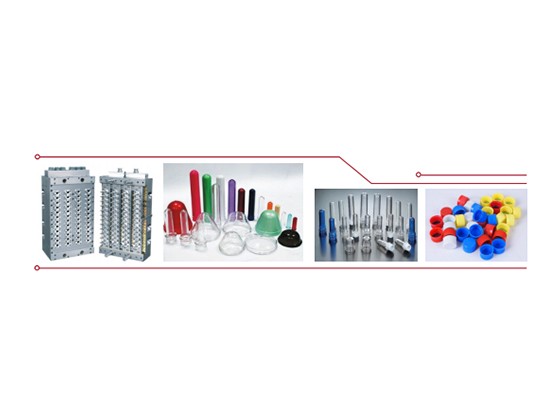

Xingyuan PET preform injection molding machine adopts specified injection unit for PET products,with screw L:D ratio 25:1.have excellent plasticizing capacity,suitable for making various kinds of PET products.
Home/Packaging Material Equipment/Injection molding machine/XY2200PET--- injection moulding machine/
Ningbo Mingguang Weiye Machinery Co.,LTD.
ZheJiang-NingBo, ChinaSpecification

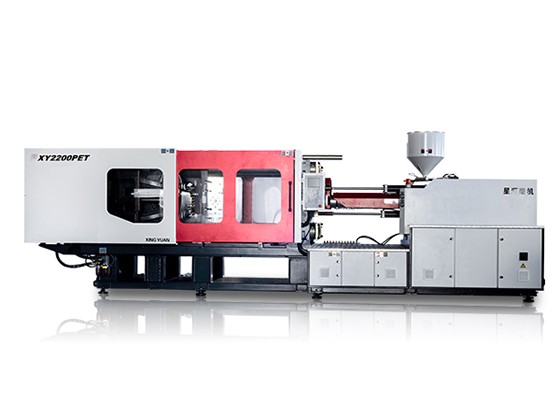

XY2200PET
Injection Unit
:
Screw Diameter
70 mm
Screw L/D Ratio
25 L/D
Shot Volume (Theoretical)
1134 cm³
Injection Weight
1224 g
Injection Rate
400 g/s
Injection Pressure
130
SCREW SPEED rpm
134 Mpa
Screw Speed
126 rpm
Clamping Unit
:
Clamping Force
2200 KN
Open Stroke
475 mm
Space Between Tie-bars
530x530 mm
Max. Mould Height
560 mm
Min. Mould Height
200 mm
Ejector Stroke
140 mm
Ejector Force
90 mm
Others
:
Max. Pump Pressure
16 Mpa
Pump Motor Power
45 KW
Heating Power
22.7 KW
Machine Dimensions(LxWxH)
6.5x1.8x2.3 m
Machine Weight (Approximate)
7.2 t
