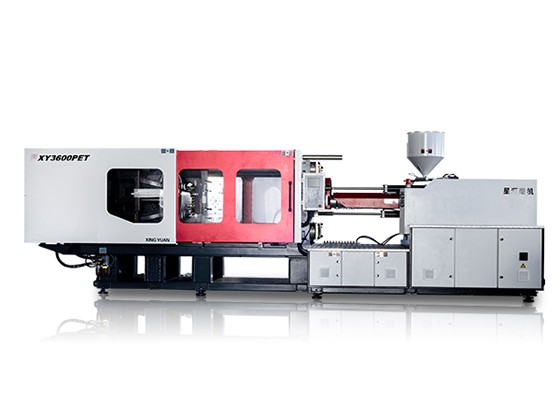

XY3600PET

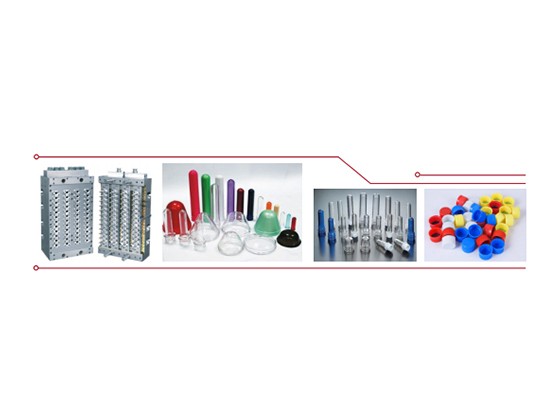

Xingyuan PET preform injection molding machine adopts specified injection unit for PET products,with screw L:D ratio 25:1.have excellent plasticizing capacity,suitable for making various kinds of PET products.
Home/Packaging Material Equipment/Injection molding machine/XY3600PET --- injection moulding machine/
Ningbo Mingguang Weiye Machinery Co.,LTD.
ZheJiang-NingBo, ChinaSpecification
XY3600PET
Injection Unit
:
Screw Diameter
80 mm
Screw L/D Ratio
25 L/D
Shot Volume (Theoretical)
19590 cm³
Injection Weight
2115 g
Injection Rate
528 g/s
Injection Pressure
165 Mpa
Screw Speed
139 rpm
Clamping Unit
:
Clamping Force
3600 KN
Open Stroke
670 mm
Space Between Tie-bars
680x680 mm
Max. Mould Height
680 mm
Min. Mould Height
250 mm
Ejector Stroke
165 mm
Ejector Force
150 mm
Others
:
Max. Pump Pressure
16 Mpa
Pump Motor Power
55 KW
Heating Power
36.7 KW
Machine Dimensions(LxWxH)
8.1x2.1x2.5 m
Machine Weight (Approximate)
13.5 t
