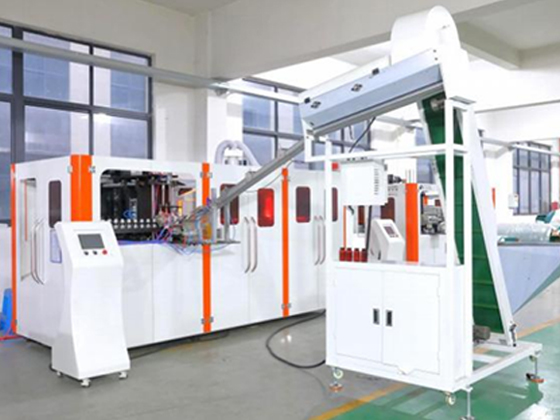

Fully automatic bottle blowing machine

1. Simple operation and wide application
The FG series fully automatic bottle blowing machine is a bottle blowing machine developed and manufactured by our company using the most advanced bottle-making technology in the world today. This machine features high levels of automation and intelligence, stable and reliable performance, simple structure, high production efficiency, low energy consumption, and the products are not contaminated by intermediate links. It is widely used in the production of food, beverage, cosmetic and pharmaceutical containers.
2. Performance and strengths
Simple control and operation of human-machine interface
Automatically arrange and load the blanks
Hop-type preform silo
The automatic billet discharge is stable and reliable, and the billet feeding is automatically controlled according to the stock in the material channel
It has good sealing performance and causes no pollution
The heating system is well-developed
The systems of revolution and rotation are stable

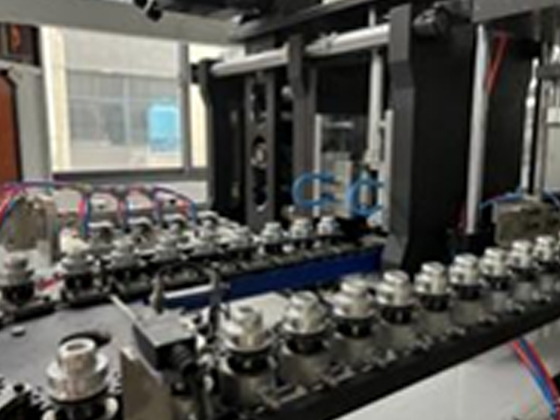

When heated, the blank tube is heated evenly and is easy to blow
It has low energy consumption and the heating temperature of each section of the blank tube can be conveniently adjusted as needed
The infrared lamp inside the furnace can be optionally equipped with a circulating air cooling system
The heating light box adopts an automatic mutual feedback and closed-loop regulation system, which can automatically output constant power in proportion and is not affected by voltage fluctuations
3. Automatically take out the blanks, load the blanks, take out the bottles and arrange the bottles

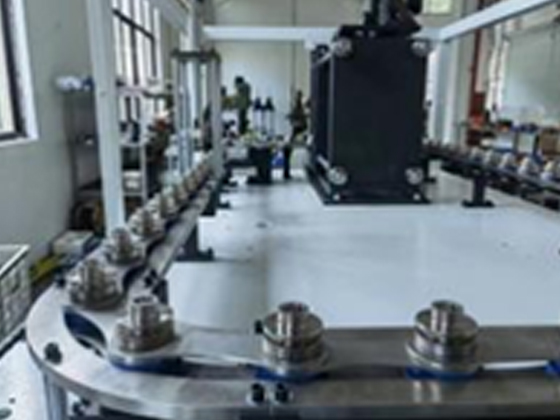

The processes of taking the green form, loading the green form, taking the bottle and arranging the bottle are all automatically completed by the mechanical hand, avoiding contamination in the middle.
4. The molds can be replaced quickly
Mold replacement can be completed quickly and easily within one hour.
5. High degree of automation, reducing bottle contamination

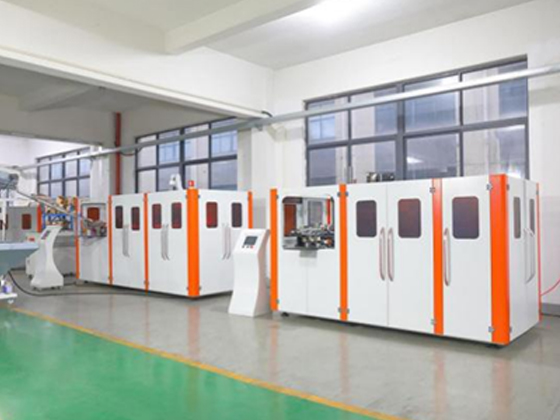

This equipment adopts a fully enclosed design. The bottles blown out are conveyed to the bottle silo by mechanical hands and air conveyor belts, reducing intermediate links. Throughout the production process, there is no need for human hands to touch the bottles, thus ensuring that the bottles are not contaminated and meet national hygiene standards.
6. The equipment has stable and reliable performance
The important parts of the entire machine, such as electrical and pneumatic components, seals, bearings, and reducers, are all well-known products from Europe, America, and Japan, ensuring the reliability and service life of the equipment. The entire machine can enjoy one year of free warranty and lifetime maintenance.
7. Touch screen
The operation is carried out under the human-machine interface, featuring multiple parameter interfaces. The operation is simple and reasonable, and manual operation is also available. During the operation of the equipment, the bottle blowing process parameters can be modified at any time, such as pre-blowing, secondary blowing, and exhaust time parameters.
8. Convenient for maintenance
The programmable logic controller (PLC) is connected to the machine through a specific communication cable. Users can manage all the movements of the machine through the PLC. Once the machine malfunctions, it will provide the operator with warning signals and fault diagnosis reports. Through the fault display, the operator can quickly find the cause of the fault and eliminate it as soon as possible.
10. Safety
The FG series of fully automatic bottle blowing machines are equipped with the following complete mechanical and electrical safety protection devices, thus ensuring the safety of the operators and the long-term stable operation of the equipment.
1. The safety of operators
The equipment adopts a fully enclosed structure and is equipped with a complete and reliable safety door system, ensuring the safety of the operators to the greatest extent.
2. Safety of the equipment
The multi-point detection technology is adopted to protect the safe operation of the positioning system, mold closing system and stretching system to the greatest extent.
