Home/Laboratory Equipment/Water Quality Inspection/YP-Q Series Precision Electronic Balance (1mg)/
Shanghai Hengji Scientific Instrument Co., LTD
ShangHai, ChinaYP-Q Series Electronic Balance

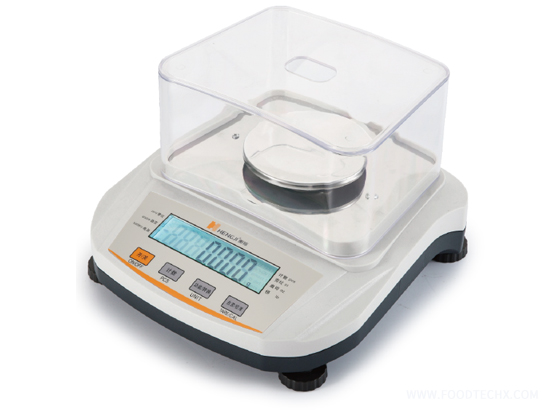

The YP‑Q Series Electronic Balance is an intelligent balance composed of high‑stability sensors and a single‑chip microcomputer.
It is portable and easy to operate, with functions including taring, self‑calibration, counting and fault indicator.
Suitable for various environments, it is an ideal balance for assembly lines in various factories.
Main Features & Performance
- High-contrast LCD display for easy reading
- Fully automatic fault detection and overload protection
- Unit conversion and counting functions
- Automatic external weight calibration
- Full-range taring
- Anti-static windshield
- RS232 interface (optional)
- Below-weighing function (optional)
- No built-in battery
YP-Q Series Electronic Balance (1mg) Parameters
表格
| 项目 Item | YP1003Q | YP2003Q | YP3003Q | YP5003Q |
|---|---|---|---|---|
| 型号
|
YP1003Q | YP2003Q | YP3003Q | YP5003Q |
| 称量范围
|
0–100g | 0–200g | 0–300g | 0–500g |
| 实际分度值
|
1mg | 1mg | 1mg | 1mg |
| 重复性 (≤)
|
±2mg | ±2mg | ±2mg | ±2mg |
| 线性误差 (≤)
|
±2mg | ±2mg | ±2mg | ±2mg |
| 秤盘尺寸
|
Φ90mm | Φ90mm | Φ90mm | Φ90mm |
| 风罩尺寸
|
17.5×14×8.3cm | 17.5×14×8.3cm | 17.5×14×8.3cm | 17.5×14×8.3cm |
| 外型尺寸
|
22.5×22×14cm | 22.5×22×14cm | 22.5×22×14cm | 22.5×22×14cm |
| 包装尺寸
|
30.5×25×17cm | 30.5×25×17cm | 30.5×25×17cm | 30.5×25×17cm |
| 净重
|
3000g | 3000g | 3000g | 3000g |
| 毛重
|
3800g | 3800g | 3800g | 3800g |
| 电源
|
110V/220–240V AC | 110V/220–240V AC | 110V/220–240V AC | 110V/220–240V |
Model:
TF1003
Actual Division Value:
1mg
Repeatability (≤):
±2mg
Linearity Error (≤):
±2mg
Output Interface:
RS232C/USB (optional)
Pan Size:
Φ90mm
Dimensions:
32x19.5x28cm
Packaging Size:
37.5x25.5x34cm
Net Weight:
2600g
Gross Weight:
3500g
Power Supply:
110V/220-240V AC
