YP Series Electronic Balance (0.01g) Parameters

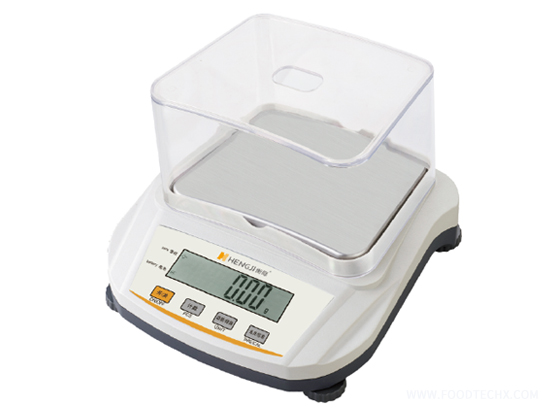

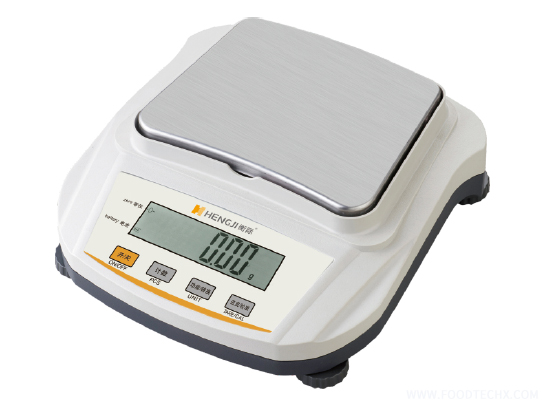

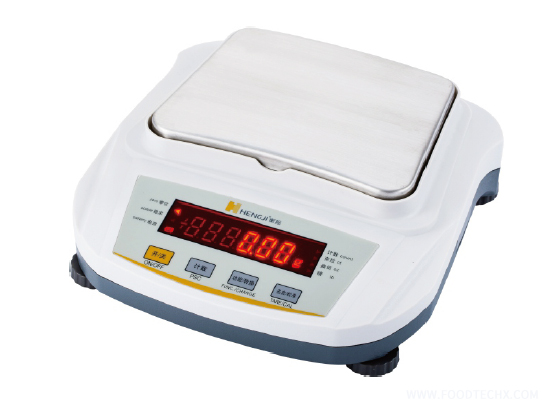

Name: YP series Precision electronic balance
Brand: Shanghai Hengji Scientific Instrument Co., LTD
SKU: d2f4fe1f65754bfc9b9179909fd2ef10
Price: 200 USD
Availability: InStock
Rating: 4.8 (20 reviews)

(Model suffix D indicates LCD display, suffix S indicates dual LCD display)

表格

项目 Item	YP2002 / YP2002D / YP2002S	YP3002 / YP3002D / YP3002S	YP5002 / YP5002D / YP5002S	YP6002 / YP6002D / YP6002S	YP10002 / YP10002D / YP10002S	YP20002 / YP20002D / YP20002S	YP30002 / YP30002D / YP30002S	YP50002 / YP50002D / YP50002S
型号 Model	YP2002	YP3002	YP5002	YP6002	YP10002	YP20002	YP30002	YP50002
液晶显示 LCD Display Model	YP2002D	YP3002D	YP5002D	YP6002D	YP10002D	YP20002D	YP30002D	YP50002D
液晶双显显示 Dual LCD Display Model	YP2002S	YP3002S	YP5002S	YP6002S	YP10002S	YP20002S	YP30002S	YP50002S
称量范围 Weighing Range	0–200g	0–300g	0–500g	0–600g	0–1000g	0–2000g	0–3000g	0–5000g
实际分度值 Readability	0.01g	0.01g	0.01g	0.01g	0.01g	0.01g	0.01g	0.01g
重复性 (≤) Repeatability (≤)	±0.02g	±0.02g	±0.02g	±0.02g	±0.02g	±0.02g	±0.02g	±0.02g
线性误差 (≤) Linearity Error (≤)	±0.02g	±0.02g	±0.02g	±0.02g	±0.02g	±0.02g	±0.02g	±0.02g
秤盘尺寸 Pan Size	125×160mm	125×160mm	125×160mm	125×160mm	125×160mm	143×192mm	143×192mm	143×192mm
外型尺寸 External Dimensions	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm
双显示外型尺寸 External Dimensions (Dual Display)	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm
包装尺寸 Packaging Dimensions	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm
净重 Net Weight	1200g	1200g	1200g	1200g	1200g	1200g	1200g	1200g
毛重 Gross Weight	1500g	1500g	1500g	1500g	1500g	1500g	1500g	1500g
电源 Power Supply	110V/220–240V AC	110V/220–240V AC	110V/220–240V AC

YP Series Electronic Balance (0.1g) Parameters

(Model suffix D indicates LCD display, suffix S indicates dual display)

表格

项目 Item	YP2001 / YP2001D / YP2001S	YP6001 / YP6001D / YP6001S	YP10001 / YP10001D / YP10001S	YP15001 / YP15001D / YP15001S	YP20001 / YP20001D / YP20001S	YP30001 / YP30001D / YP30001S	YP50001 / YP50001D / YP50001S	YP60001 / YP60001D / YP60001S
型号 Model	YP2001	YP6001	YP10001	YP15001	YP20001	YP30001	YP50001	YP60001
液晶显示 LCD Display Model	YP2001D	YP6001D	YP10001D	YP15001D	YP20001D	YP30001D	YP50001D	YP60001D
液晶双显显示 Dual LCD Display Model	YP2001S	YP6001S	YP10001S	YP15001S	YP20001S	YP30001S	YP50001S	YP60001S
称量范围 Weighing Range	0–200g	0–600g	0–1000g	0–1500g	0–2000g	0–3000g	0–5000g	0–6000g
实际分度值 Readability	0.1g	0.1g	0.1g	0.1g	0.1g	0.1g	0.1g	0.1g
重复性 (≤) Repeatability (≤)	±0.2g	±0.2g	±0.2g	±0.2g	±0.2g	±0.2g	±0.2g	±0.2g
线性误差 (≤) Linearity Error (≤)	±0.2g	±0.2g	±0.2g	±0.2g	±0.2g	±0.2g	±0.2g	±0.2g
秤盘尺寸 Pan Size	143×192mm	143×192mm	143×192mm	143×192mm	143×192mm	143×192mm	143×192mm	143×192mm
外型尺寸 External Dimensions	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm	22.5×22×8cm
双显示外型尺寸 External Dimensions (Dual Display)	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm	27.5×22×8cm
包装尺寸 Packaging Dimensions	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm	30.5×24.5×11cm
净重 Net Weight	1200g	1200g	1200g	1200g	1200g	1200g	1200g	1200g
毛重 Gross Weight	1500g	1500g	1500g	1500g	1500g	1500g	1500g	1500g
电源 Power Supply	110V/220–240V AC	110V/220–240V AC	110V/220–240V AC	110V/220–240V AC

Leave Message

History search

Fuzzy search

Shanghai Hengji Scientific Instrument Co., LTD

YP Series Electronic Balance (0.01g) Parameters

YP Series Electronic Balance (0.1g) Parameters

Model:

TF1003

Actual Division Value:

1mg

Repeatability (≤):

±2mg

Linearity Error (≤):

±2mg

Output Interface:

RS232C/USB (optional)

Pan Size:

Φ90mm

Dimensions:

32x19.5x28cm

Packaging Size:

37.5x25.5x34cm

Net Weight:

2600g

Gross Weight:

3500g

Power Supply:

110V/220-240V AC
