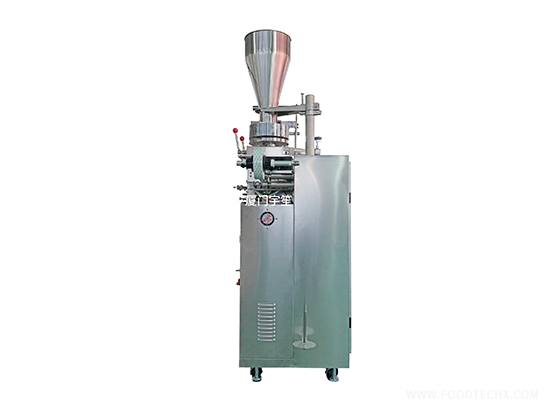

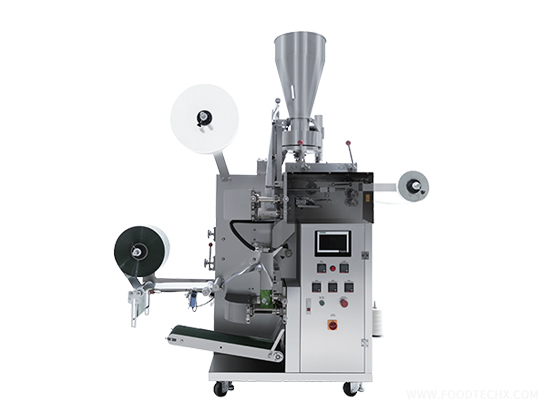

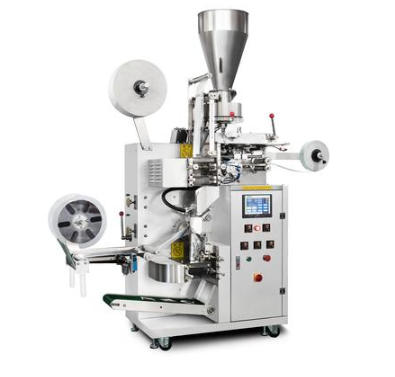

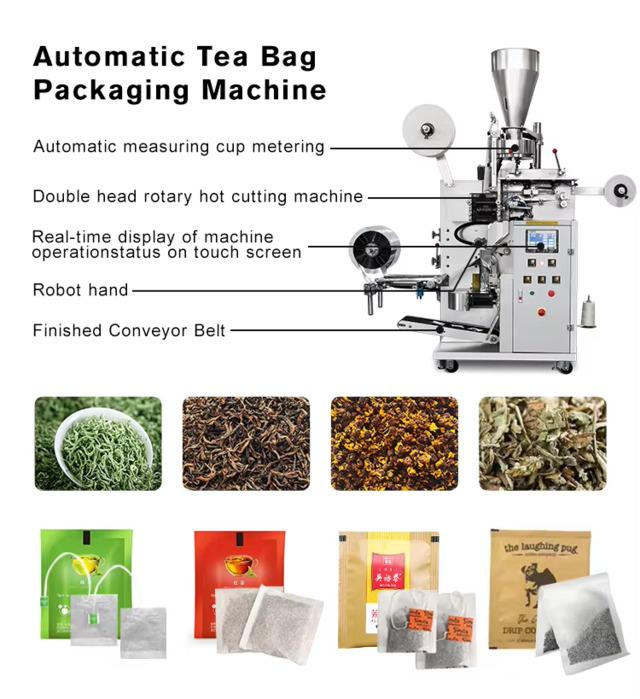

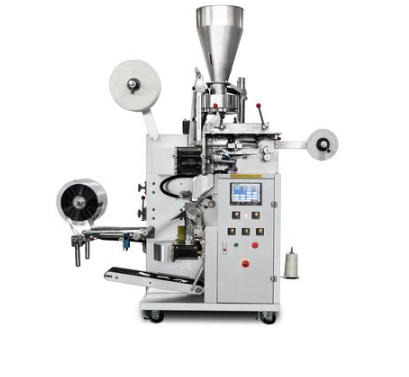

FuJian-XiaMen, ChinaThe YS-169 Tea bag packaging machine (inner and outer bags) is suitable for one-time packaging of small granular materials such as tea leaves, medicinal teas, health teas, and herbal root products in inner and outer bags.
Features
- Suitable for one-time inner and outer bag packaging of small granular materials such as tea, herbal tea, health tea, and herbal roots.
- The inner and outer bag film pulling is controlled by stepping motors, ensuring stable bag length and accurate positioning.
- Equipped with PID temperature controller for more precise temperature control.
- The whole machine is controlled by PLC with human-machine interface, ensuring hygienic and reliable production.
- Packaging materials: tea filter paper, cotton thread, composite film and tags.
Sealing Type: Three-side seal, back seal, four-side seal
| Parameter | Specification |
|---|---|
| Pack Range | 1–10 g |
| Inner Bag Length | 50–70 mm |
| Inner Bag Width | 45–80 mm |
| Outer Envelope Length | 80–120 mm |
| Outer Envelope Width | 75–95 mm |
| Speed | 30–50 bags/min |
| Machine Dimensions (L×W×H) | 1750 × 740 × 1950 mm |
| Machine Weight | 500 kg |
| Power | AC220V, 50–60Hz, 3KW |
| Air Source | ≥0.6 MPa |

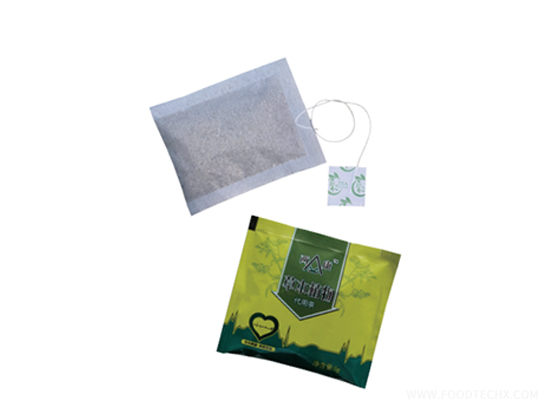

| Tea Bag Type | Flat Bag with Label and Thread |
| Outer Envelope Material | BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminized/Polyethylene |
| Inner Bag Material | Filter Paper |
| Weighing Method | Measuring Cups, Screw Feeder |
Measuring Scope
1 – 10 g
Inner bag size:
•Length (L): 50 – 110 mm; •Width (W): 45 – 80 mm
Outer bag size:
Length (L): 75 – 120 mm Width (W): 50 – 110 mm
Packing Speed
30 – 50 bags/min
Dimension (L* W*H)
1805×731×2065 mm
Weight
500 kg
Power
AC 220V / 50Hz / 3kW
Air supply:
≥ 0.6 MPa
