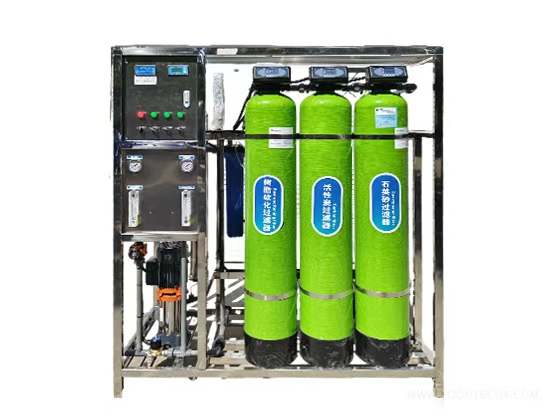

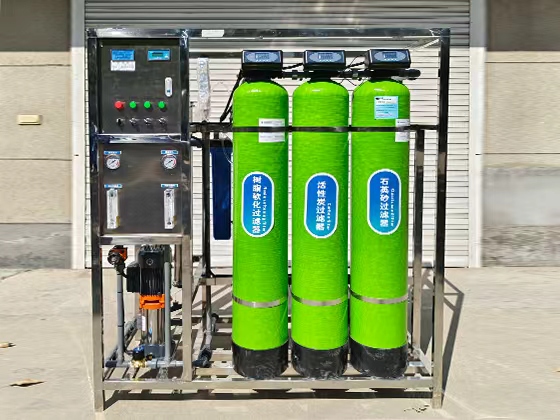

Home/Water Treatment Equipment/Pure Water /YY-RO-0.5T(S) Reverse Osmosis Purified Water Equipment/
Dezhou Yiyong environmental protection equipment Co., LTD
ShanDong-DeZhou, China1.
Pretreatment System Unit
Quartz Sand Tank ：250×1400
1 Set （FRP Tank with PE Liner）
Microcomputer Control Valve ：F71Q1
1 Set （Wenzhou Runxin）
Refined Quartz Sand ： Mixed Mesh
1.5 Bags
Central Pipe/Water Distributor/Collector ：26.7mm
1 set
Pressure Gauge ：1Mpa
1 Set （Stainless Steel Oil-filled Shockproof）
2.
Activated Carbon Filter
Activated Carbon Tank : 250×1400
1 Set （FRP Tank with PE Liner）
Microcomputer Control Valve : F71Q1
1 Set （Domestic High Quality）
Refined Quartz Sand ： 4-8mm
0.5 bags
Activated Carbon ：1-2mm
1 bag
Central Tube/Water Distributor/Collector ：26.7mm
1 set
3.
Water Softener
Softener Tank : 250×1400
1 Set （FRP Tank with PE Liner）
Microcomputer Control Valve : F117Q1
1 Set （Domestic High Quality）
Ion Exchange Resin : 001×7
2 bags
Brine Tank : 60L
1 set
Brine Tube and Valve : 10
1 set
Upper and Lower Water Distributors : 26.7mm
1 set
4.
Precision Filter
Filter Housing : 20 Inch
1 set (PE Material)
Filter Cartridge : 20 Inch
1 pcs (PP Melt-blown)
Pressure Gauge : 1MPa
1 set (Stainless Steel Oil-filled Shockproof)
Power Boosting Unit:
1. Raw Water Booster Pump : JET551/550 0.55KW (Horizontal Multistage Pump)1 Set (Xinjie/LEO Pump Industry)
2. Electrical Control Box : PL2-7, 1.5KW (Vertical Multistage Pump)1 Set (Xinjie/LEO Pump Industry)
RO Membrane System Unit:
1. Equipment Main Frame : 0.5T1 Set (Stainless Steel)
2. RO Membrane Housing : 4-inch 1-element2 pcs (SUS304 Stainless Steel)
3. RO Membrane Element : 4040 Type2 pcs (Domestic High Quality)
4. Pressure Gauge : 1MPa/3MPa2 pcs
5. RO Concentrate Flow Meter : 5 Gallon (Panel Mounted)1 pcs ( Acrylic Rotameter)
6. RO Concentrate Flow Meter : 5 Gallon (Panel Mounted)1 pcs ( Acrylic Rotameter)
7. RO Flush Valve : DN15 (Solenoid Valve)1 Set (Brass)
8. RO Concentrate Regulating Valve : DN20 (Diaphragm Valve)1 Set (PVC)
9. Inlet Solenoid Valve : (Solenoid Valve)1 Set (Brass)
10. Conductivity Monitor : (LCD Display)1 Set (Domestic High Quality)
11. Equipment Connection Pipes and Fittings1 Batch
12. Control Panel1 pcs (Stainless Steel)
Electrical Control System:
1. RO Controller : RO Control System1 Set (Domestic High Quality)
2. Electrical Control Box : Stainless Steel1 Set (Yiyong)
3. Low Voltage Electrical Components : AC contactors, intermediate relays, buttons, switches1 Set (Delixi)
4. Wires and Cables : Matched1 Set (Domestic High Quality)
Free Accessories:
1. Liquid Level Float Switch1 pcs (Cold Water Float)
2. High Temperature Float Switch1 pcs
3. Filter Cartridge : 20 Inch1 pcs
- Water Softening Resin
- Special Salt for Water Softening
