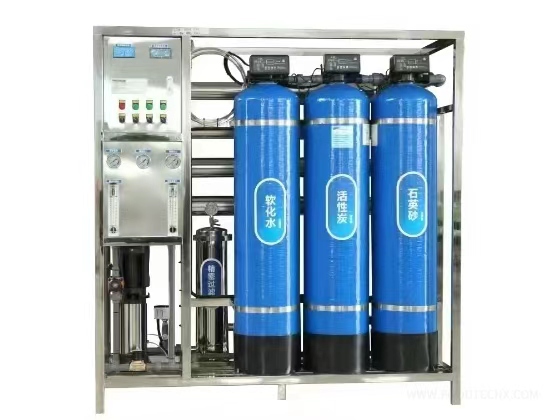

Home/Water Treatment Equipment/Pure Water /YY-RO-1T(S) Reverse Osmosis Purified Water Equipment/
Dezhou Yiyong environmental protection equipment Co., LTD
ShanDong-DeZhou, China1.
Pretreatment System Unit
Quartz Sand Tank ：300×1400
1 Set （FRP Tank with PE Liner）
Microcomputer Control Valve ：F67Q1
1 Set （Domestic High Quality）
Refined Quartz Sand ： Mixed Mesh
3 Bags
Central Pipe/Water Distributor/Collector ：26.7mm
1 set
Pressure Gauge ：1Mpa
1 Set （Stainless Steel Oil-filled Shockproof）
2.
Activated Carbon Filter
Activated Carbon Tank : 300×1400
1 Set （FRP Tank with PE Liner）
Microcomputer Control Valve : F67Q1
1 Set （Domestic High Quality）
Activated Carbon ：1-2mm
1 bag
Bedding Quartz Sand ： 4-8mm
1 bag
Central Tube/Water Distributor/Collector ：26.7mm
1 set
3.
Water Softener
Softener Tank : 300×1400
1 Set （FRP Tank with PE Liner）
Microcomputer Control Valve :F116Q1
1 Set （Domestic High Quality）
Ion Exchange Resin : 001×7
3 bags
Brine Tank : 100L
1 set
Brine Tube and Valve : 10
1 set
Upper and Lower Water Distributors : 26.7mm
1 set
4.
Precision Filter
Precision Filter Housing :3-Core 20 Inch
1 set (PE Material)
Air Release Valve : DN10
1 pcs (SUS304 Material)
Filter Cartridge : 20 Inch
1 pcs (PP Melt-blown)
Pressure Gauge : 1MPa
1 pcs (Stainless Steel Oil-filled Shockproof)
Power Boosting Unit:
1. Raw Water Booster Pump :JET751/750G2/380V (Horizontal Multistage Pump)1 Set (Xinjie/LEO Pump Industry)
2. RO/NF High Pressure Pump: PL2-9, 1.5KW (Vertical Multistage Pump)1 Set (Xinjie/LEO Pump Industry)
RO Membrane System Unit:
1. Equipment Main Frame : 1T1 Set (Stainless Steel)
2. RO Membrane Housing : 4040-1 (1-element) (4040)4 pcs (SUS304 Stainless Steel)
3. RO Membrane Element : 4040 Type (250L/piece)4 pcs (Domestic High Quality)
4. Pressure Gauge : 1MPa/3MPa (Panel Mounted)3 pcs (Stainless Steel Oil-filled Shockproof)
5. RO Concentrate Flow Meter : 10 Gallon (Panel Mounted)1 pcs ( Acrylic Rotameter)
6. RO Concentrate Flow Meter : 10 Gallon (Panel Mounted)1 pcs ( Acrylic Rotameter)
7. RO Flush Valve : DN20 (Solenoid Valve)1 Set (Brass)
8. RO Concentrate Regulating Valve : DN20 (Diaphragm Valve)1 Set (PVC)
9. Inlet Solenoid Valve : DN32 (Solenoid Valve)1 Set (Brass)
10. Conductivity Monitor : (LCD Display)1 Set (Domestic High Quality)
11. Equipment Connection Pipes and Fittings1 Batch
12. Control Panel1 pcs (Stainless Steel)
Electrical Control System:
1. RO Controller : RO Control System1 Set (Domestic High Quality)
2. Electrical Control Box : Stainless Steel1 Set (Yiyong)
3. Low Voltage Electrical Components : AC contactors, intermediate relays, buttons, switches1 Set (Delixi)
4. Wires and Cables : Matched1 Set (Domestic High Quality)
Free Accessories:
1. Liquid Level Float Switch1 pcs (Cold Water Float)
2. High Temperature Float Switch1 pcs
3. Filter Cartridge : 20 Inch3 pcs
- Water Softening Resin
- Special Salt for Water Softening
