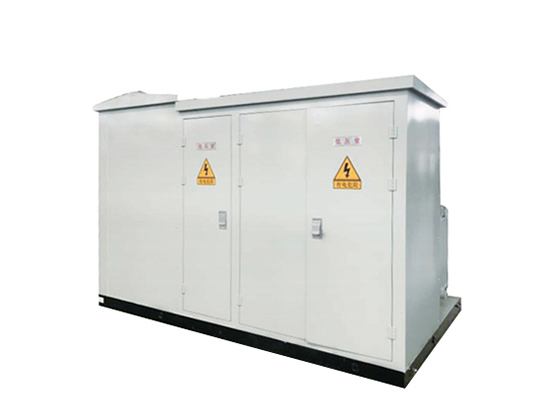

The ZGS13 series combined transformer is a new type of distribution equipment (also known as American-style box transformer). It integrates high-voltage load switches, plug-in fuses, and high-voltage current-limiting fuses within the transformer oil tank, using mineral oil for insulation and cooling. It features a rational and compact structure, small size, flexible installation, convenient operation, and a small footprint. The combined transformer is particularly suitable for the load centers of urban power grids, reducing losses and improving power supply quality. This series of products has been widely used in residential areas, public places, industrial and mining enterprises, and other distribution sites across the country.

Product Features of ZGS13-H(Z) Series Combined Transformer

1.Small in size, compact in structure and easy to install.

2. Fully sealed and fully insulated structure ensures personal safety.

It can be used in ring networks as well as at terminals, and is easy to convert, which enhances the reliability of power supply.

4. Low loss, low noise, and superior performance.

5. The cable joints adopt plug-in form and have the characteristics of isolation switches, which are convenient and flexible to operate.

6. High-voltage dual fuse protection. The plug-in fuse features dual-sensitivity protection against both temperature and current.

7. The backup fuse provides protection against faults in the transformer and secondary circuits.

8. The box body adopts an anti-theft structure.

9. Low temperature rise and strong overload capacity.

Due to the special structure of the transformer core, its outstanding advantages are high voltage quality and small neutral point offset.
