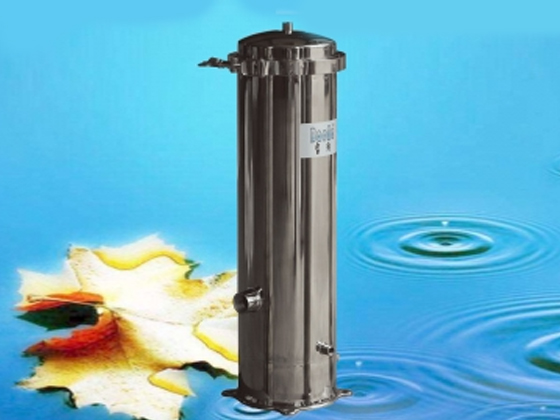

Name: filter housing BN1-W5L4 20“5 Core new type
Brand: Guangzhou Boyuan Beverage Machinery Co., Ltd.
SKU: 174ec96f3cde4f66a8d46214025e9648
Availability: InStock
Rating: 4.8 (20 reviews)

Guangzhou Boyuan Beverage Machinery Co., Ltd.

GuangDong-GuangZhou, China

The description of Customized industrial filter housing

Multi-cartridge Filter Housing are clamp closure designed for industrial grade filtration. These are made of durable SS 304 or 316L.Sandblasted,brushed & electro polished with operating pressure up to 100 psi. They are suitable for RO Plants, Water Treatment Plants, Paints, Waste water recycling, Petrochemicals and Plating Solutions.

Working pressure:

0.6 / 1.0 / 1.6Mpa

Body Material:

Stainless steel (SUS304, SUS304L, SUS316, SUS316L).

Operating temperature:

5 ~ 40 degree centigrade

Design temperature:

5 -90 degree centigrade

Replace the pressure:

0.05Mpa-0.07MPA

Filter interface:

flat compression, plug-in

Cylinder and base connection mode:

quick opening, clamp

Filtration accuracy:

1μm ~ 100μm

Cartridge Quantity:

1 core to 160 cores

Cartridge filter Length:

10 "~ 40"

Seal type:O-ring or flat washer

Surface finish: Sandblast, mirror electrolytic polishing.

Sealing material: nitrile rubber, silicone, Viton, standard configuration for the silicone seal.

Interface Type: GB,, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.

Flange Standard: GB, HG, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)

Manufacturing, testing standard:GB150 standard, or user-specified criteria.
