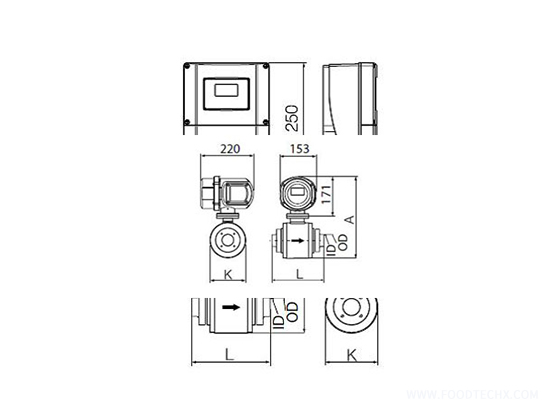

ShangHai, ChinaPromag 10H
Applications
Suitable for measuring liquids with a minimum conductivity ≥ 30 µS/cm
- Beverages: fruit juices, beer, wine and other alcoholic drinks
- Dairy products, fruit blends
- Salt solutions
- Acidic and corrosive solutions, etc.
Advantages
- PFA lining, maximum cleaning temperature up to +150 ℃
- Suitable for CIP/SIP cleaning and circulation systems
- Stainless steel housing ensures high hygienic safety
- Ingress protection rating on site: IP67
- Direct‑mount remote version with IP67 wall‑mounted housing
Accuracy
- Promag 10: ±0.5%
Not suitable for measuring mineral water or other low‑conductivity media

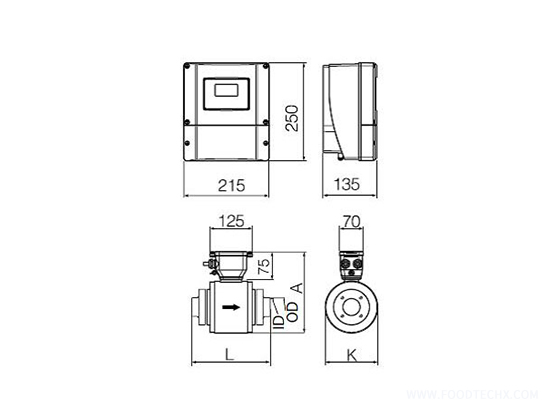

Promag 50 / 53H
Applications
Suitable for measuring liquids with a minimum conductivity ≥ 5 µS/cm
- Beverages: fruit juices, beer, wine and other alcoholic drinks
- Dairy products, fruit blends
- Salt solutions
- Acidic and corrosive solutions, etc.
Minimum conductivity required for mineral water measurement: ≥ 20 µS/cm
Advantages
- PFA lining, maximum cleaning temperature up to +150 ℃
- Suitable for CIP/SIP cleaning and circulation systems
- Stainless steel housing ensures high hygienic safety
- Ingress protection rating on site: IP67
- Direct‑mount remote version with IP67 wall‑mounted housing
Accuracy
- Promag 50: ±0.5%
- Promag 53: ±0.2%
Promag 53 with touch-screen control: operation without opening the housing
Additional Software Packages
- Pulsed flow function for batch applications

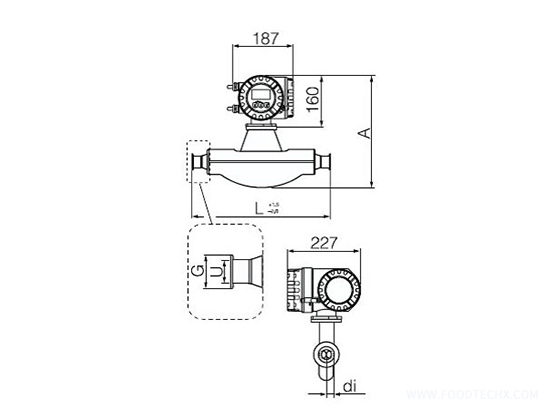

Promass 83 / 83F
Applications
- Welded sensor, maximum temperature resistance up to +200 ℃
- Typical applications: vegetable oils, animal fats, concentrated fruit juices
Advantages
- Balanced dual‑tube system suitable for a wide range of process conditions
- Vibration‑resistant, compact design with small footprint
- Measurement not affected by fluid properties
- Hygienic design, suitable for CIP/SIP cleaning
- Robust stainless steel housing for on‑site installation, ingress protection rating: IP67
- Remote version with IP67 wall‑mounted housing
Additional Software Packages
- Batch control
- Concentration measurement
Multi‑function
Simultaneous measurement of:
- Flow (mass flow, volumetric flow)
- Density
- Temperature
High Accuracy
- Promass 80: ±0.15%
- Promass 83: ±0.10%
Promass 83 with touch-screen control: operation without opening the housing
