1. Stable process parameter control: Sterilization temperature: Stable control + abnormal protection. Optimized programs and processes ensure that the sterilization temperature of all export products is within the limit range. Homogenization temperature: Real-time adjustable + abnormal protection. A homogenization temperature control system is added to ensure that the homogenization temperature of different products can be adjusted. Operating time: To extend the continuous operation time, a dual hot water system is added, and imported wide-flow high-efficiency heat exchangers are selected.

2. Safety system control advantages: 1. The CIP cleaning pressure is reduced, making it easy to clean The imported wide flow plate is adopted, and the temperature difference is reasonably calculated to reduce the heating intensity of the product, delay the coking of the product, and improve the cleaning effect. Advantage 2: It prevents the plate from perforating and causing the product to be re-contaminated after sterilization. Advantage 3: It prevents the plate sealing ring from bursting due to the operator's misoperation, causing the heat exchanger to leak. Advantage 4: Constant pressure system design. The hot water system is controlled under constant pressure to prevent deformation of one side of the plate due to force.

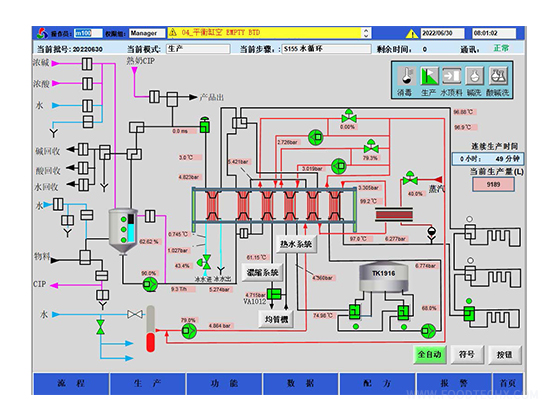

3. Traceable reports: Through the built-in report processing system, key data recording and monitoring are achieved Advantage

1: Real-time storage of HACCP data. HACCP data can be read online and production report data can be generated. The storage time can reach over one year. Advantage

2: Monitoring, recording and printing of sterilization temperature and pressure, etc. Real-time storage and printing of various temperature and pressure values Advantage

3: Flow control and record-keeping ensure normal production flow and CIP cleaning flow, guaranteeing the cleaning effect. Advantage 4:CIP cleaning concentration monitoring, record-keeping and printing
