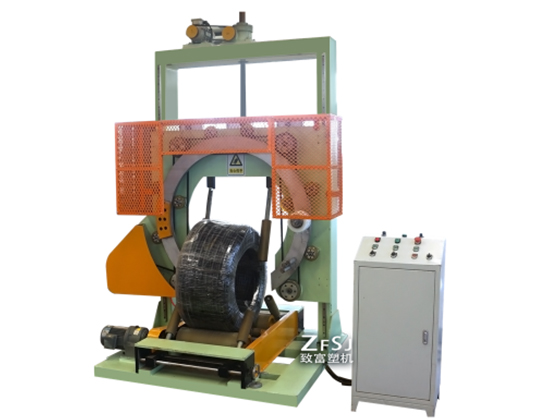

Home/Agricultural machinery/ring winding coiling packing machines---ZF-820A/
Yushen(tangshan)water Saving And Technology Group Co., Ltd.
, ChinaInner diameter:
≥ 350 mm
Outside diameter:
≤ 1500 mm
Width:
≤ 500 mm
Weight:
≤ 300 kg
Swivel speed:
60 r/min, adjustable frequency
Roller rotation speed:
4 to 6 m/min, adjustable frequency
Wrap-mode:
pulled-type coil ( The rotating ring rotates simultaneously with the wound film )
Overlapping dimensions:
adjustable
Total Power:
about 2.3 kw
Power source:
Three phases, 380V, 50HZ
Overall dimensions(L*W*H):
1200mm*1400mm*2620mm
The coil packing machines basic configuration:
Frequency converter, proximity switch, circuit breaker, relay, winding motor, roller rotating motor, up–down motors, revolving wheel, Locate the driving wheel.
Packaging effect:
Product surface is smooth and uniform (no obvious deformation when standing up).
Packing material:
Composite paper tape, woven tape, film anti-rust tape, winding film and so on.
The aluminum plate:
1000mm
