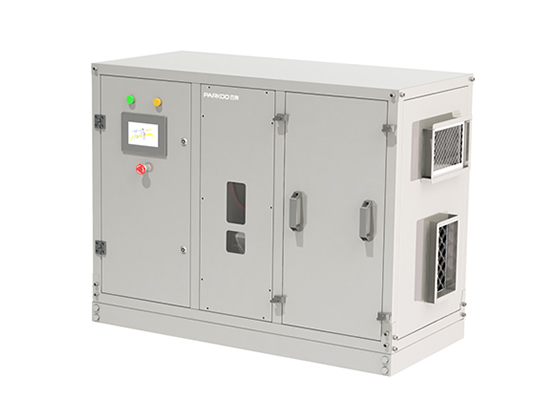

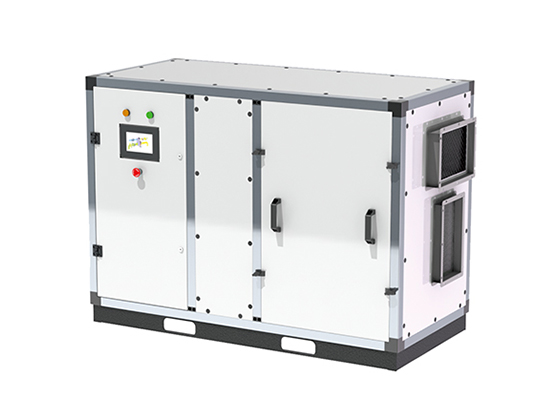

Home/Public Equipment/rotary dehumidifier single model---DH-2190H20/
Guangzhou DongAo Electrical Co., Ltd. Company
, China
It adopts imported high-efficiency silica gel rotor material, which has an extremely high adsorption efficiency for water vapor.
Equipped with a special high-temperature resistant and low-leakage sealing system, it can dehumidify stably even at high temperatures.
Integrated design, convenient for maintenance, and the impeller can be directly cleaned.
It adopts a no-drainage design, allowing water vapor to be discharged outdoors along with the hot air.
Highlight the temperature and humidity, and the high-end touch screen is operable for settings.
PCB integrated control and PLC programming control are optional.
Application environment and locations:
Operating voltage: 380~400V/50Hz
It can be used in low-temperature and high-humidity environments (-20 to +60℃ / 5 to 30% RH).
It can be used in high-temperature and low-humidity environments (-20 to +60℃ / 5 to 30% RH).
It can be combined with the air conditioning system.
Indoor places with low relative humidity but continuous moisture production;
A low-humidity environment where condensation is not allowed;
The situation where there are no conditions for discharging condensate water indoors;
It can be applied to places where the humidity requirement is less than 45% RH, including production workshops, warehouses, and special production processes, etc.
It can be applied to: industrial plants, scientific research, military, municipal engineering, cold storage, pump rooms, laboratories and other places.
Model
Model
Processed Air
:
Rated Airflow (m³/h)
500
Fan Power (Kw)
0.25
External Static Pressure (Pa)
200
Regeneration Air
:
Rated Airflow (m³/h)
200
Fan Power (Kw)
0.09
External Static Pressure (Pa)
200
Dehumidification
:
Processed Air Inlet Conditions (kg/h) Dry Bulb Temperature t: 30℃
4.6
Processed Air Inlet Conditions (kg/h)
4.2
Dry Bulb Temperature t: 25℃ Dry Bulb Temperature t: 25℃
